Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel

Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel

Aluminum Strip Automatic Spacer Bending Machine

Tylenol Arup Automatic Spacer Bending Machine

Tylenol Arup strip bending machine

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

CE

Model Number:

LJZW 2020A

Contact Us
Request A Quote
Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel
Product Details
Max. Bending Size:
2500mm*2500mm
Min. Bending Size:
250mm*200mm
Aluminum Spacer Width:
5.5-27mm
Highlight:

Aluminum Strip Automatic Spacer Bending Machine

,

Tylenol Arup Automatic Spacer Bending Machine

,

Tylenol Arup strip bending machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 30000.00 - 35000.00
Packaging Details
Container/wooden box
Delivery Time
45 days
Payment Terms
L/C, T/T
Supply Ability
50sets/month
RELATED PRODUCTS
Good price Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line online

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price
Good price Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm online

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price
Good price Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm online Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price
Good price Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing online

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price
CONTACT US
Contact Now
Product Description

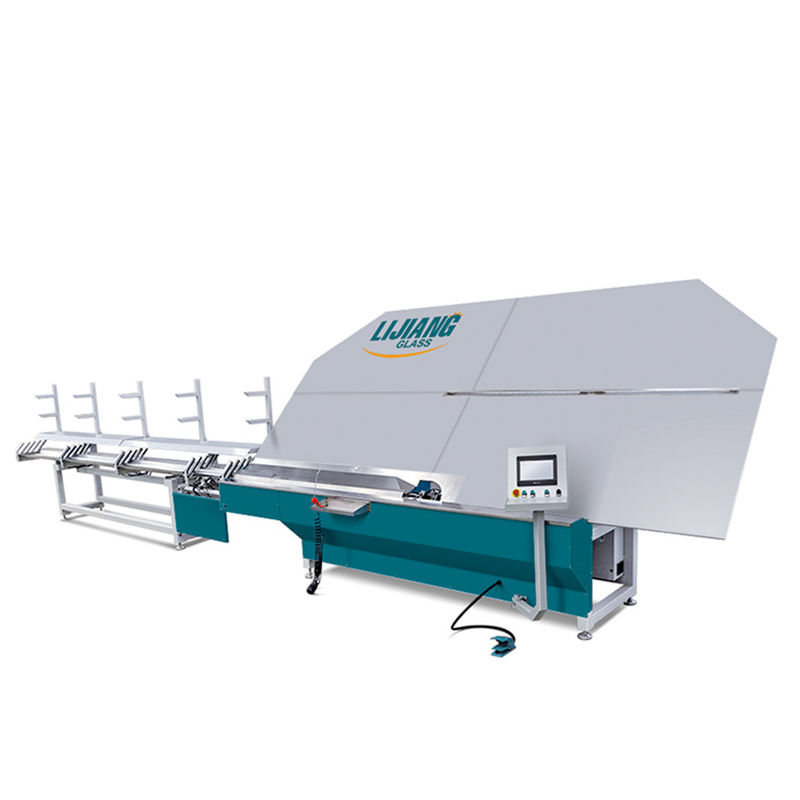

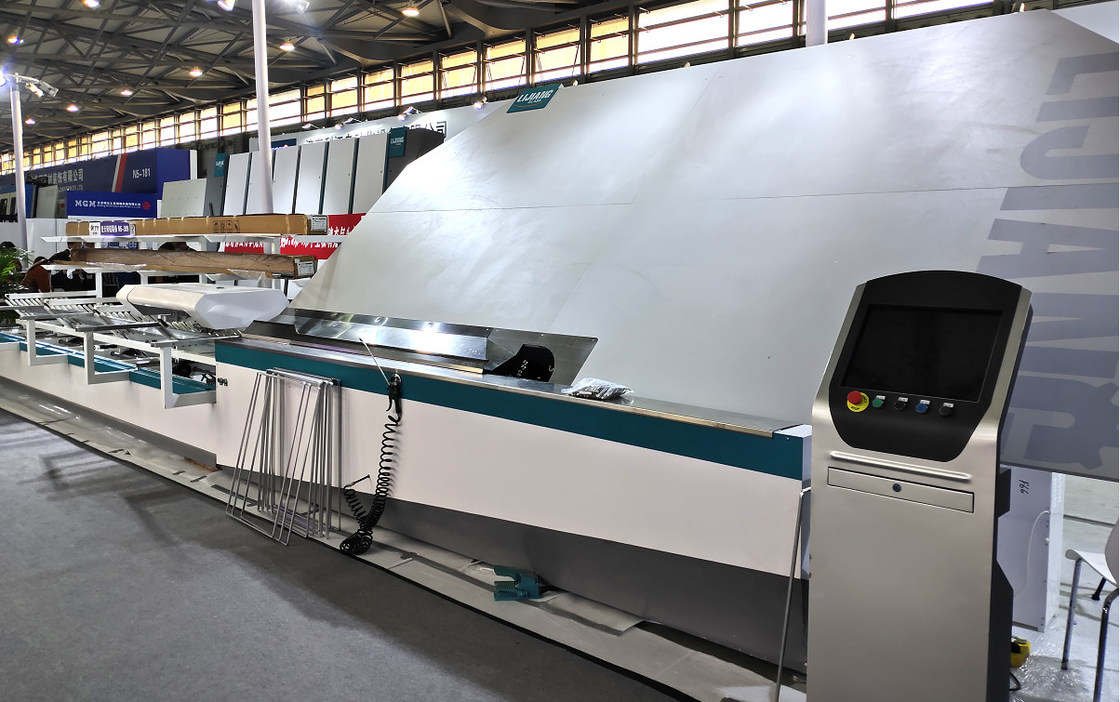

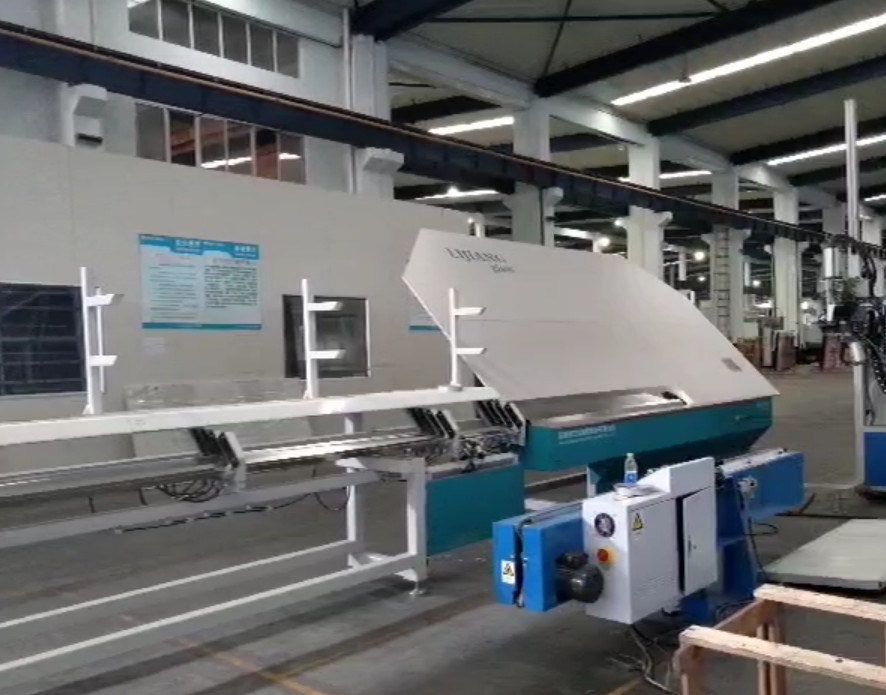

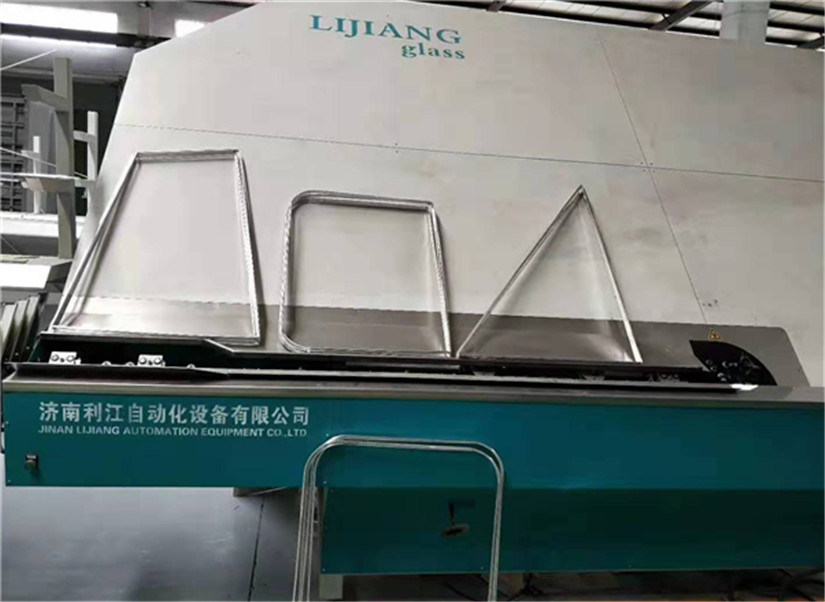

Automatic Spacer Bending Machine aluminum strip Tylenol Arup spacer stainless steel strip



Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 0

• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)

Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 1
Max. bending size
2000mm*2000mm (2500mm*2500mm)
Min. bending size
250mm*200mm
Aluminum spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
≤26s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm



Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 2

* Germany Siemens PLC control system,touch screen interface
* Japan FUJI CNC servo control system
* Four spacer size storage units
* Using servo system to control feeding mechanism

* USB input function, read the excel format file directly etc (Optional)
* Stainless steel (Optional)
* Automatic drill gas filling hole (Optional)
* Connect to ERP system (Optional)
* Spacer printing code function (Optional)
* Printing label sticker function (Optional)



Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 3Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 4Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 5Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 6Aluminum Strip Automatic Spacer Bending Machine Tylenol Arup Spacer Stainless Steel 7
