Glass Rotating Table Manual Sealing Pump Machine For Insulating Glass Hollow Glaszing

Large Image : Glass Rotating Table Manual Sealing Pump Machine For Insulating Glass Hollow Glaszing

Product Details:

Place of Origin:	China
Brand Name:	LIijiang Glass
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1800.00 - 2000.00
Packaging Details:	Container/wooden box
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	50sets/month

Contact Now

Glass Rotating Table Manual Sealing Pump Machine For Insulating Glass Hollow Glaszing

Description

Power Supply:	380V 50Hz	Total Power:	0.37kw
Dimension:	600mm550mm985mm	Max. Glass Size:	2000*1500mm
Min. Glass Size:	200*200mm
Highlight:	Rotating Table Sealing Pump Machine , Insulating Glass Sealing Pump Machine , Hollow Glaszing Manual Sealing Pump

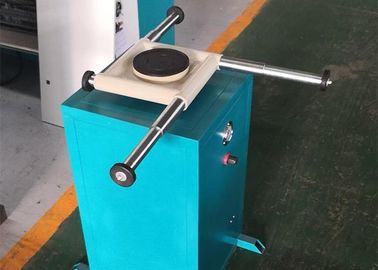

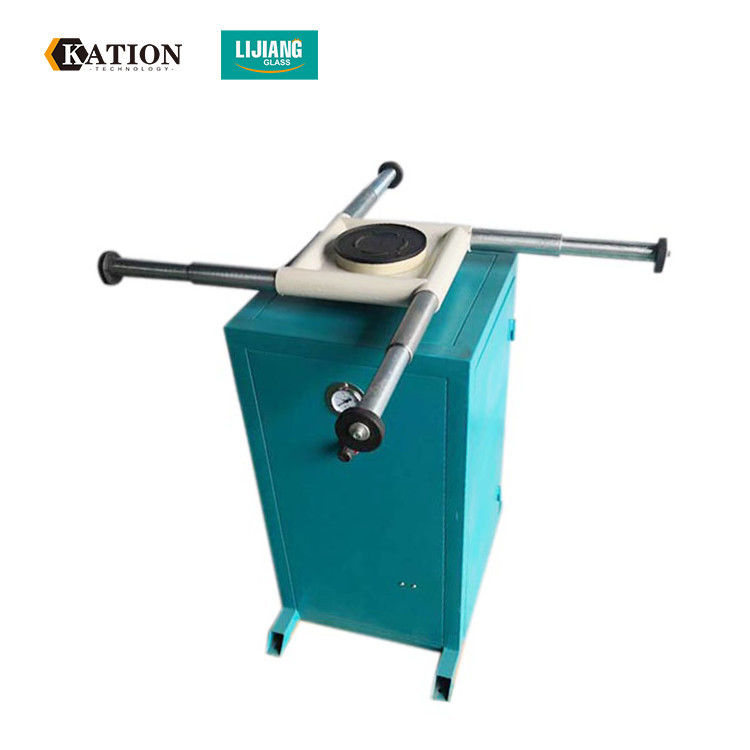

Glass Rotating Table Manual Sealing Pump Machine for Insulating Glass Hollow Glaszing Double

Rotary glue-coating table is auxiliary equipment of trough aluminum insulating glass production line. It is used in conjunction with a two-component glue dispenser. It is mainly used in the process of filling the glass periphery with two-component glue after the hollow glass covering is completed. Through the lifting, rotating, positioning mechanism to achieve the positioning of the glass, surrounding glue, removal and other processes. High degree of automation, reliable performance and convenient operation. It has a gas stop protection function to ensure that the gas plate does not fall in the lifted position when the gas stops.
Size Information

			Item.

			Spec.

			Power supply

			380V 50Hz

			Total power

			0.37kw

			Dimension

			600mm*550mm*985mm

			Max. glass size

			2000*1500mm

			Min. glass size

			200*200mm

			Molding pressure

			0.5t

			Air pressure

			25Mpa

			Max. pressure

			0.5-0.8Kn

 Benefits & Advantages
Main features of the manual rotating sealant spreading table :

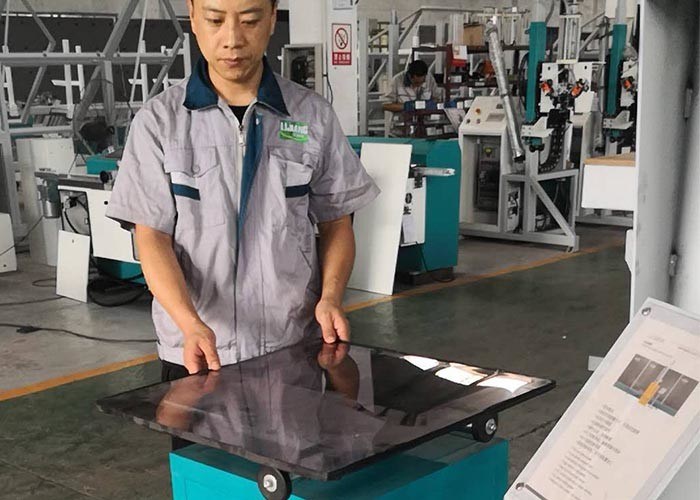

•Easy operating, simple and flexible.•It is used for fixing and rotating glass when manual coating the outside of IG glass .

•The middle sucker is suitable for small pieces of glass, could extra support frame is for large pieces of glass.
