Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min

Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min
Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min

Large Image :  Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min

Product Details:
Place of Origin: China
Brand Name: LIijiang Glass
Certification: CE
Model Number: 2025
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD30000.00 - 35000.00
Packaging Details: Container/wooden box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50sets/month
Contact Now

Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min

Description
Max.glass Size: 2500*3500mm Min.glass Size: 280*450mm
Glass Thickness: 3-15mm Glass Washing Speed: 2-10m/min
Washing Brushes: 3 Pairs Dimensions: 6260*4800*3100
Weight: 3940kg Total Power: 3P 31KW
High Light:

Large Size Low E Glass Washing Machine

,

10m/Min Low E Glass Washing Machine

,

2m/Min vertical glass washing machine

Automatic large size Glass Vertical Low-E Glass Washing Machine

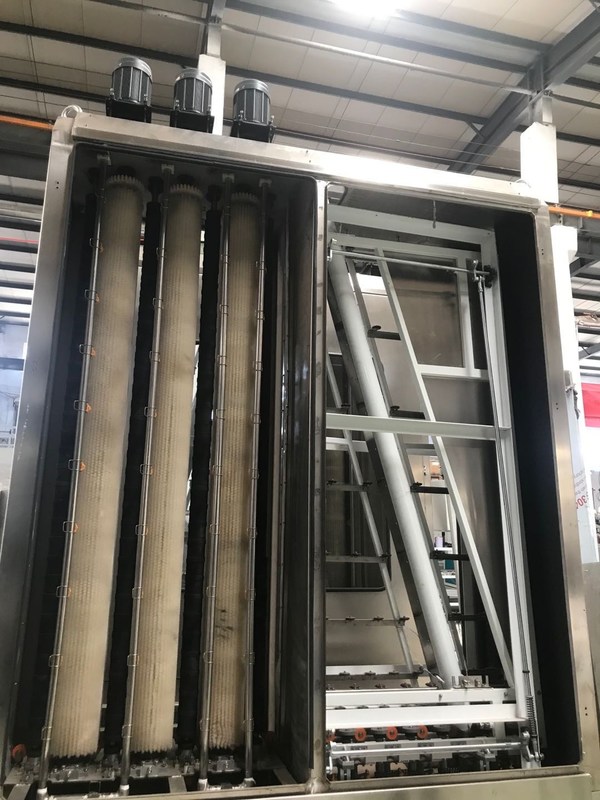

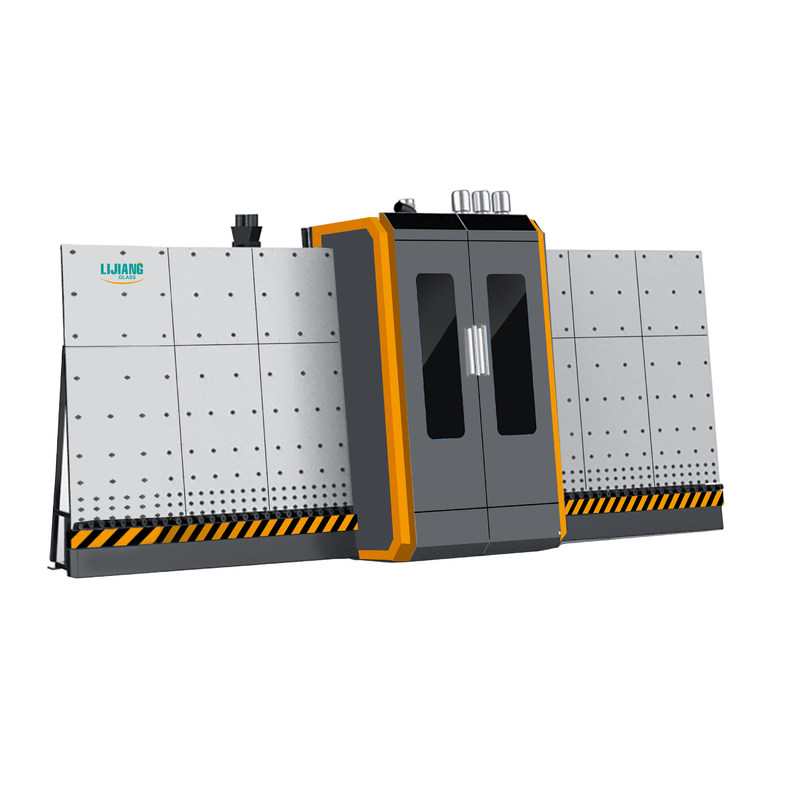

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.


Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 0Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 1Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 2



Main feature:



• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted

by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure

that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 3



Technical data:



Max.glass size(Optional) 2500*3500mm
Min.glass size 280*450mm
Glass thickness 3-15mm
Glass washing speed 2-10m/min
Glass conveyor speed 15m/min
Washing brushes 3 pairs
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Dimensions approximately 6260*4800*3100
Weight 3940kg
Total power 3P 31KW



1. There is the Low-e glass sensor in the washing machine
This sensoris installed before washing machine. It could automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.

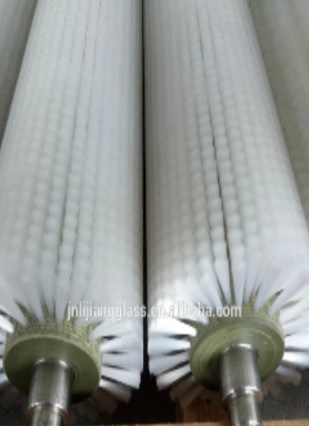

2. The washing machine uses six soft (Low-e) brushes with the 01mm diameter only. It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
3. Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges

4. Water heating system and water filter system.
As different countries have differentwater quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

5. The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass.

1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.



Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 4Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 5Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 6Large Size Glass Vertical Low E Glass Washing Machine Automatic 2-10m/min 7
