2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing

2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing

Large Image :  2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing

Product Details:
Place of Origin: Jinan
Brand Name: Lijiang
Certification: CE
Model Number: KTLQ-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 35000 USD/SET
Packaging Details: Container
Delivery Time: 20DAYS
Payment Terms: L/C, T/T
Supply Ability: 20SETS/MONTH
Contact Now

2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing

Description
Product Name: Glass Washing Machine Voltage: 380V 50HZ
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Glass Thickness: 3-15mm Warranty: 1 Year
Min Glass Size: 2500mm*3000mm Color: Customers' Request
Application: Flat Glass Washing Max Glass Size: 2000mm*2500mm
Power: 3P 380V 50Hz Washing Speed: 2-10m/min
High Light:

2500mm*3000mm Glass Washing And Drying Machine

,

Double Glass Washing And Drying Machine

,

2500mm*3000mm Vertical Glass Washer

Vertical Glass Washing and drying Machine for double glass processing

Product Description
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 0





Common Problems and Solutions in the Glass Deep-Processing

In the glass deep-processing, the frequently occurring problems are: 1. When butyl rubber is extruded, burrs and not smooth 2. Butyl glue does not stick to aluminum strips and glass and loses its stickiness 3. After the second seal is completed, a cold flow of butyl rubber appears after some time 4. When butyl rubber is extruded, there will be glue breaking and blockage... Frequent problems in finished hollow glass products: 1. Fogging inside the hollow glass 2. Condensation of hollow glass 3. Insulating glass self-explodes... Jinan LIJIANG Glass focuses on providing high-quality production and processing equipment and services for the global insulating glass processing industry, and actively provides users with professional and intelligent summaries and solutions to common problems of insulating glass.
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 1
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 2

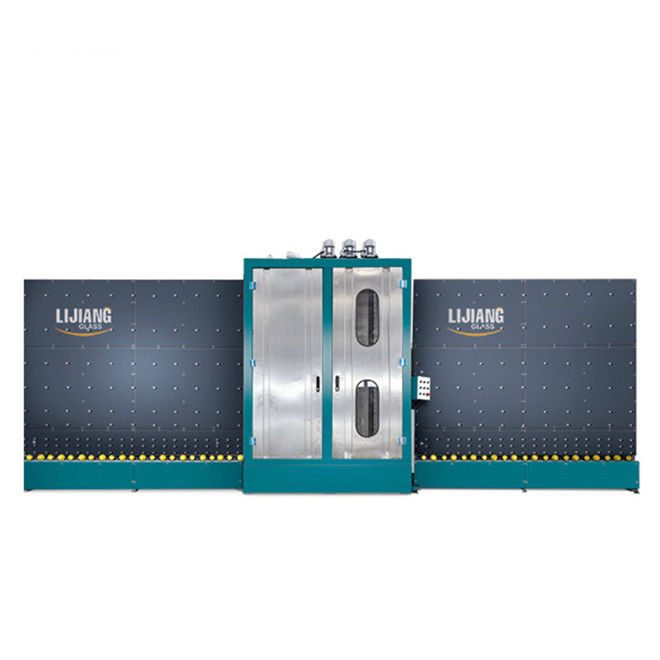

KTLQ-2500 Vertical Glass Washing Machine
KTLQ-2500 glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional.
- Self-Diagnosis system with touch screen on computer.
- Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input.
- Rotate speed of brush frequency control. (optional)
- Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm
- High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit)
- Automatic detection of Low-E glass and alarm for coating in reverse. (optional)
- Structure stepped and three-layer I.G. unit available. (optional)
- Precision of plate press: ±0.3mm




Vertical Glass Washing Machine Video Display

The series vertical glass washing and drying machine uses advanced fixture and technology during the whole production process, and ensures formation and assembly accuracy of work pieces.
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 3
Vertical Glass Washing and Drying Video Play
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 4
Vertical Glass Washing and Drying Video Play
Equipment Advantages
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 5
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 6
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 7
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 8
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 9
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 10
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 11




Advantages & Benefits

☆The glass washing machine could clean ordinary flat glass or coated glass with a thickness of 3~12mm; ☆The cleaning area uses 3 pairs of brushes or optional 4 pairs of brushes (or imported soft brushes, coating or LOE special), two or four water cleaning; ☆The machine adopts an inclined vertical structure, the flat glass is placed on the conveyor roller, passes through the feeding section, cleaning and drying section, and reaching the discharging section to complete the glass cleaning task; ☆The cleaning area and the water tank are made of stainless steel and corrosion-resistant materials; the inclined wind knife with strong wind can dry the glass surface; ☆The discharge section is equipped with inspection lamps to check the cleaning quality of the glass. The machine is easy to operate, and the operation buttons are concentrated on the operating table.
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 12

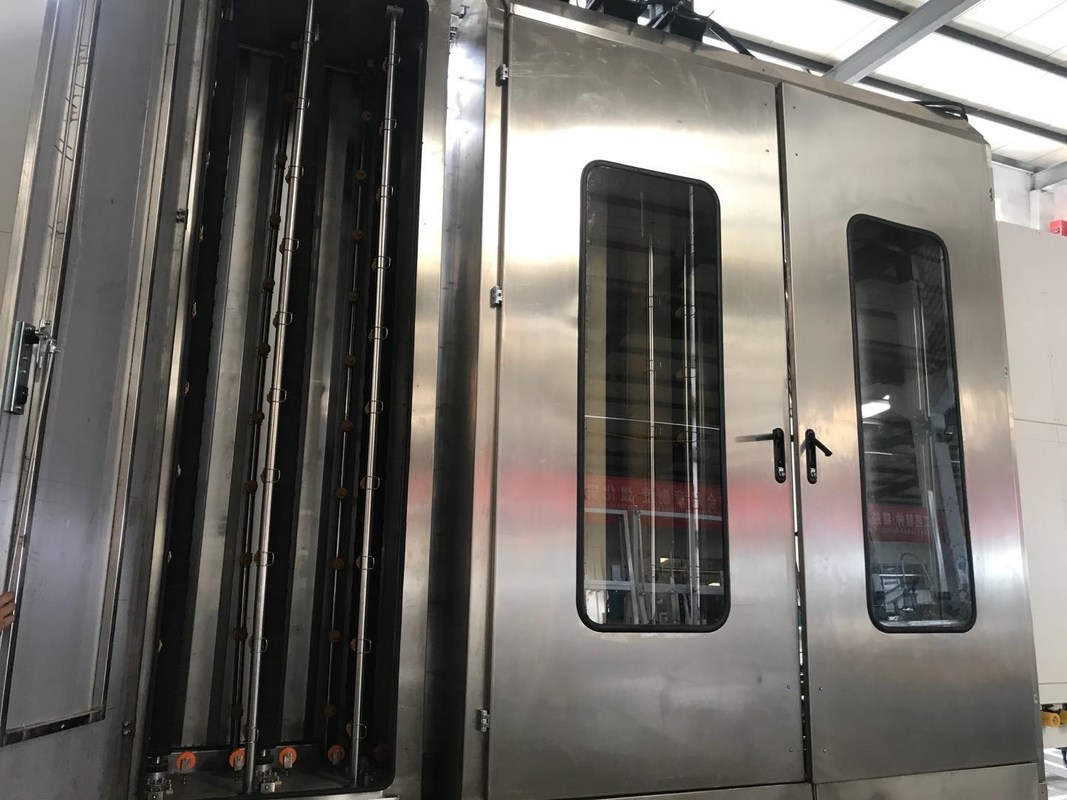

Configuration of three pairs of brushes
Six high temperature resistant wire brushes with diameter of 180mm + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles and is lifted by a cylinder.
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 13



Water rust and corrosion resistant
The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials. They will not rust after long-term use and are easy to maintain.
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 14



High efficiency air knives
Two pairs of stainless steel air knives are equipped with high wind power and good drying effect, with heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 15



Stainless steel structure
The air-drying box glass support frame is uniformly welded by high-strength stainless steel, and the whole washing parts of glass washing and drying equipment will be used for a long time without rust and will not cause secondary glass pollution.
Above information is the special details from Jinan LIJIANG Glass.
If customers want to know more special details, please contact us directly.
Main Technical Parameter
Jinan LIJIANG Vertical Glass Washing Machine Specifications.




Type: KTLQ-2000 Vertical Glass Washing Machine
Application: Flat Glass Laminated Glass Washing and Drying Control Sytstem: PLC Control Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity. Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems OEM/ODM:Yes CKD/SKD Cooperation:Yes
Regional Exclusive Agent: Yes
Inquiry Now




Type: JLLQ-2500 Vertical Glass Washing Machine
Application: Flat Glass Laminated Glass Washing and Drying
Control Sytstem: PLC Control
Adopts energy-saving intermittent automatic working system, the brushes, water pumps, and fans start automatically, saving energy and electricity.
Three brushes and three showers are used to ensure the cleaning effect. All cleaning sections are made of high-quality stainless steel, equipped with coarse and fine two-pole filtration systems OEM/ODM:Yes CKD/SKD Cooperation:Yes
Regional Exclusive Agent: Yes
Inquiry Now
Type: KTLQ-2000 Vertical Glass Washing Machine
Type: KTLQ-2500 Vertical Glass Washing Machine
Max glass size: 2000mm*2500mm
Max glass size: 2000mm*2500mm
Min glass size: 2500mm*3000mm
Min glass size: 2500mm*3000mm
Working direction facing the equipment, from right to left
Working direction facing the equipment, from right to left
Washing speed: 2-10m/min
Washing speed: 2-10m/min
Glass thickness: 3-15 mm
Glass thickness: 3-15 mm
Insulating glass thickness: ≤40 mm
Insulating glass thickness: ≤40 mm
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Water supply: 0.5 tons/day of circulating water, conductivity ≤40μS
Washing speed: 2-10m/min
Washing speed: 2-10m/min
Working height: 580mm
Working height: 580mm
Power: 3P 380V 50Hz
Power: 3P 380V 50Hz
Ambient temperature: 10°C-30°C, according to DIN 40040
Ambient temperature: 10°C-30°C, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040
Relative air humidity: ≤ 75 %, according to DIN 40040
Above Information are Jinan LIJIANG Glass Standard Spec.
If customer want to change Spec. Please let us know.
Main Feature
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 16
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 17
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 18
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 19
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 20
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 21
Company Profile
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 22
The Brief Information
Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Trading Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2021, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10+ powerful agents and made an endeavor together to build a famous international brand to the world. Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 23
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 24
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 25
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 26
After-sale Service




Better Trading Service to Benefit Global Customer

Not only excellent in product performance. Meanwhile Jinan LIJIANG Glass provide excellent trade service for oversea customers. Bring best benefit to our Customers.
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 29
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 30
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 31
Agency Policy
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 33
Contact Us
2500mm*3000mm Vertical Glass Washing And Drying Machine For Double Glass Processing 34
