Product Details:
|
| Name: | Insulating Glass Production Line | Washing Brushes: | 3 Pairs |
|---|---|---|---|
| Water Supply: | Water Consumption:0.5t/h Conductivity：40μs/cm | Air Pressure: | ≥0.8MPa |
| Total Power: | 3P 380V 50HZ 40KW | Weight: | 6500kg |
| High Light: | Insulating Glass Double Glazing Production Line,Horizontal Glass Double Glazing Production Line,Horizontal Insulating glass production machinery |
||

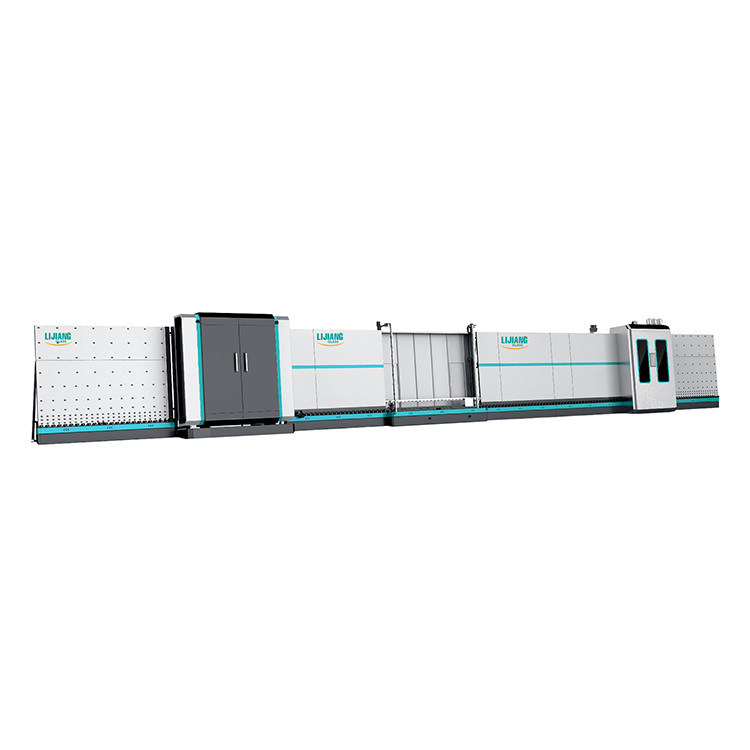

Horizontal insulating glass of Automatic double glass production line used for double glazing glass makin

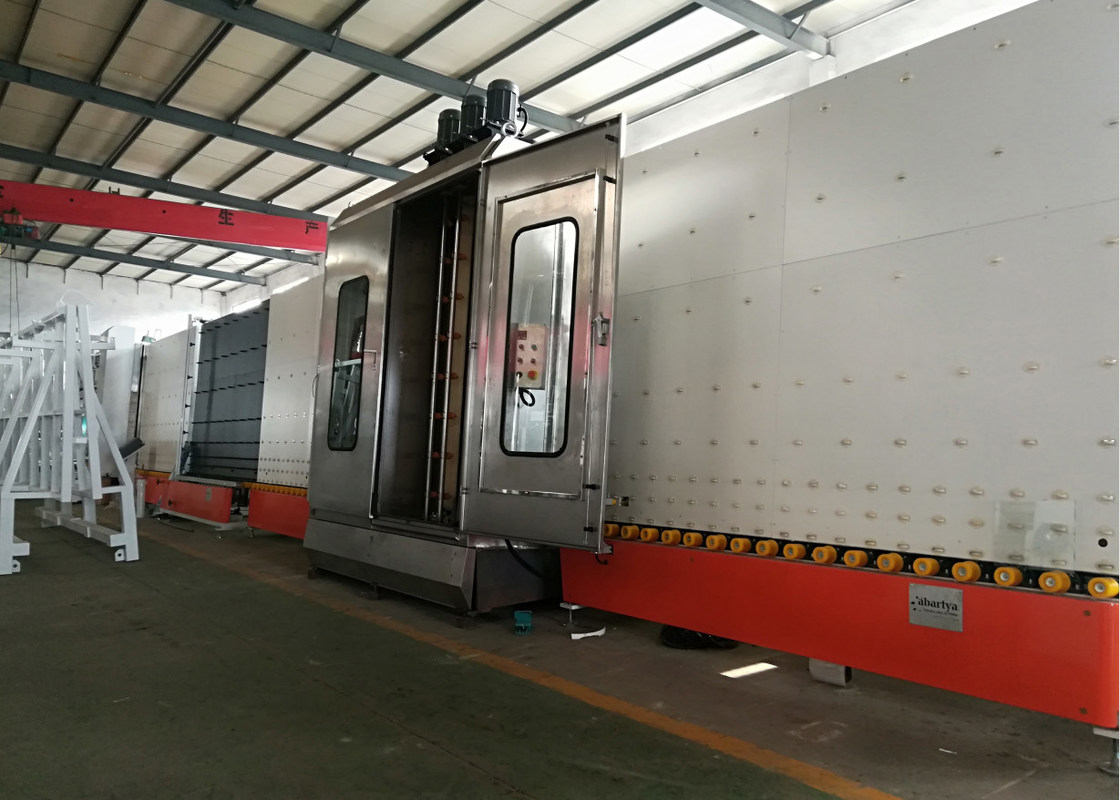

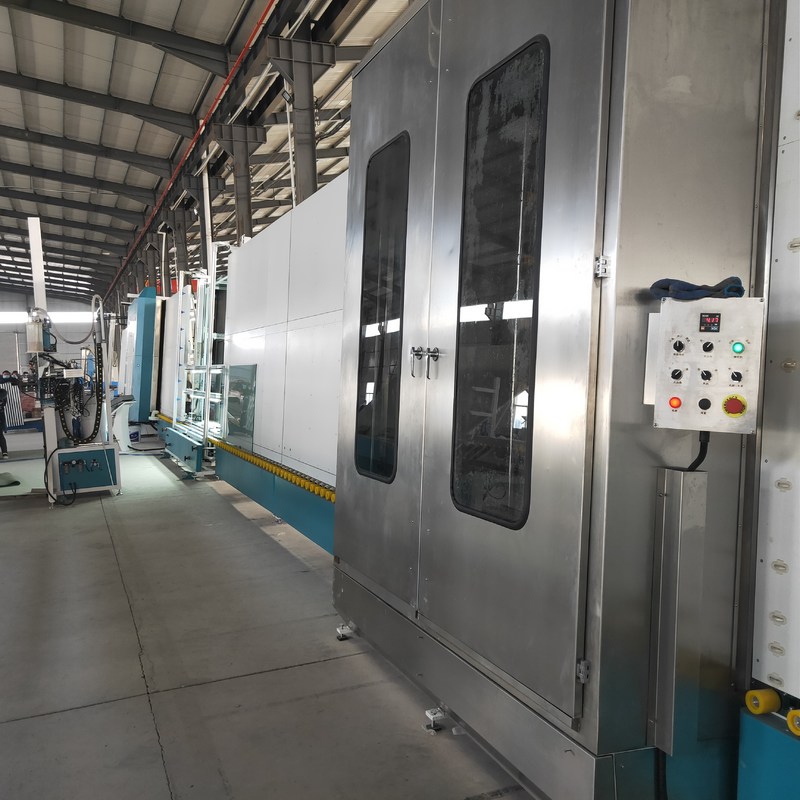

• Glass washing part of washing machine production line
Main feature of insulating glass equipment
• Using 6 pieces of soft brushes
• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• European silencer system
• 304 stainless steel materials
Main feature of glass production machinery
• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet
• Equipped with a precisely adjustable front platen mechanism
• The system can diagnose fault information
• The pressing plate can be opened to 400mm width for easy maintenance
• Applicable to produce four-side step IG, triple IG and shaped IG

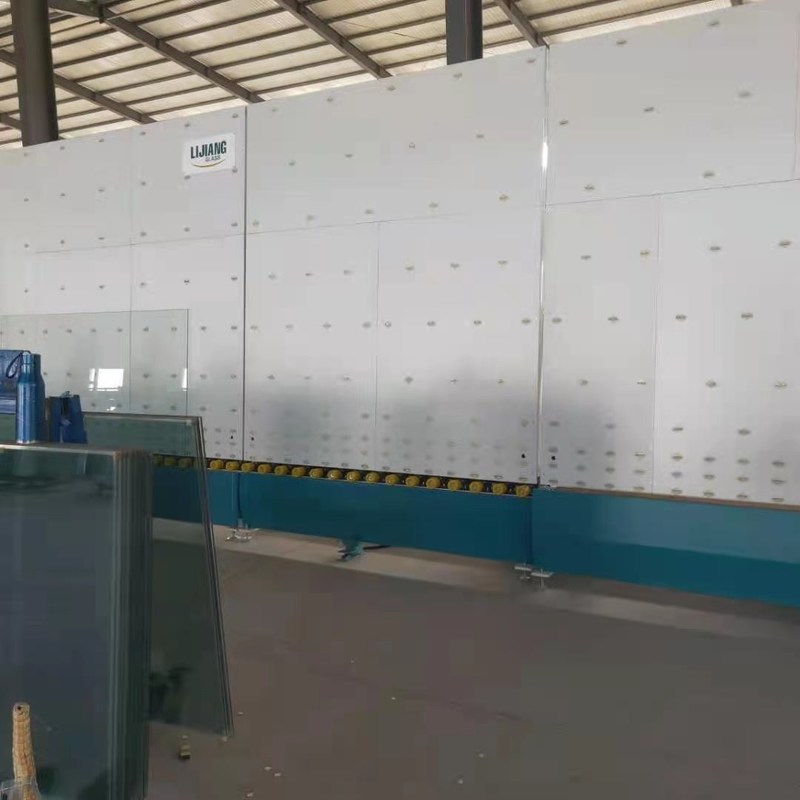

• Automatically filling argon gas inside the pressing plate with precise gas concentration
• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
• No need to drill holes in spacer frame
• Standard gas is Argon gas
• Fast reacting sensor for permanent control of gas filling process
• Automatically set gas data and display data on the screen
Technical data of glass manufacturing machinery and equipment
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
