Vertical Automatic Insulating Glass Production Line Double Glazing Glass Making Machine

Large Image : Vertical Automatic Insulating Glass Production Line Double Glazing Glass Making Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJBZ2535

Payment & Shipping Terms:

Minimum Order Quantity:	One
Price:	USD 60,000 per unit
Packaging Details:	Wooden box ，container
Delivery Time:	15 work days
Payment Terms:	L/C, T/T
Supply Ability:	Five units per month

Contact Now

Vertical Automatic Insulating Glass Production Line Double Glazing Glass Making Machine

Description

Voltage:

3P,380V,50Hz

Power:

37kw

Weight:

6000kg

Mini Glass Size:

450*280 Mm

Highlight:

Automatic Insulating Glass Production Line

Vertical Insulating Glass Production Line

Vertical Double Glazing Glass Making Machine

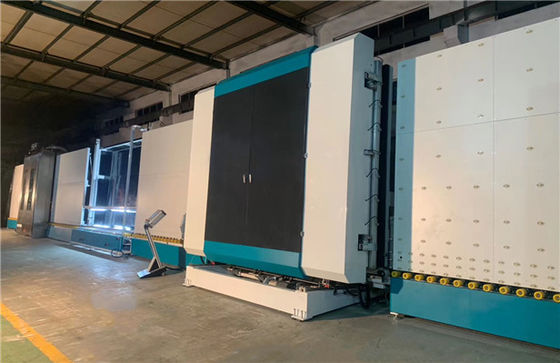

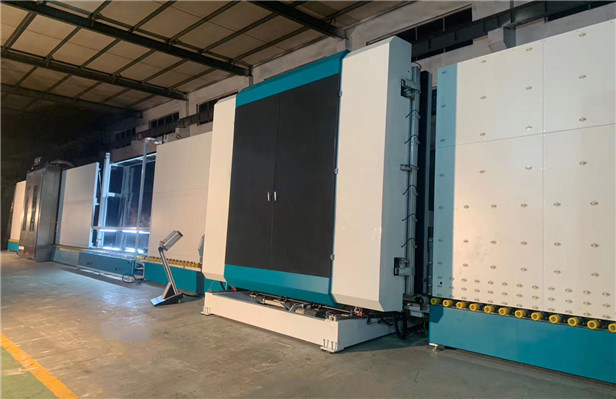

LJBZ2535 Vertical Automatic Insulating glass production line double glazing glass processing machine

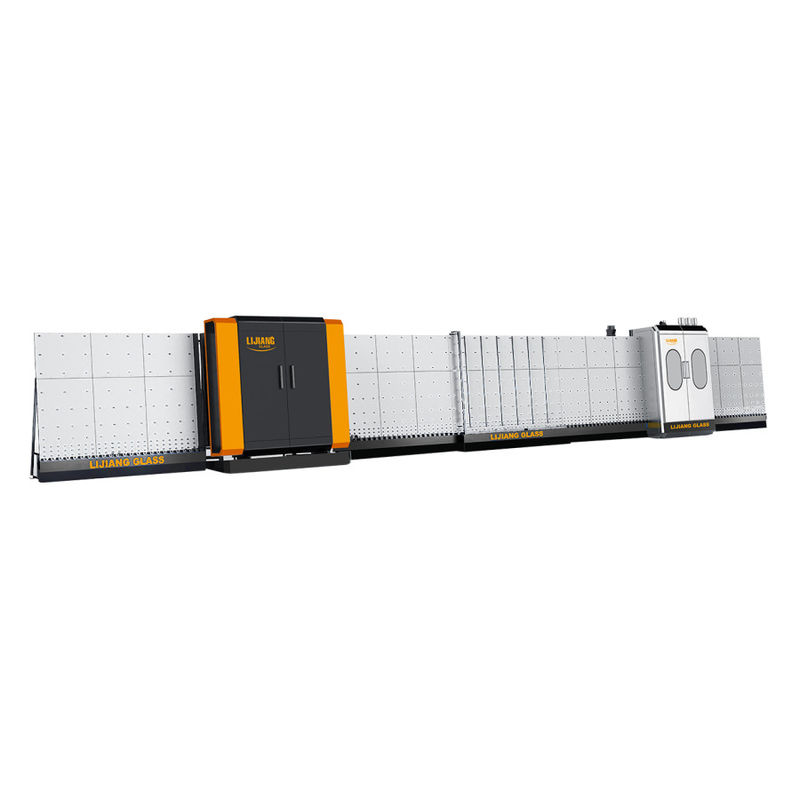

LJBZ2535 Vertical Automatic Insulating glass production line

APPLICATION

As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

Drying knife design

Touching screen

Three pairs of soft brushes

LJBZ2535 Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)

1,Loading section(with low-e checking)

2,washing and drying section(can washing low-e glass)

3,conveyor section

4,checking and assembly section

5, conveyor , measure and sensor section

6,press part with gas filling

7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:Gas filling on line syetem(option)
About Gas filling online of LJBZ2535 Vertical Automatic Insulating glass production line, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing

process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.

Washing speed	2~10m/min
Max.working speed	45m/min
Washing glass thickness	3~15mm
Max.insulating glass thickness	60mm
Conveyor height	500mm
Min.glass size	450×280
Max.glass size	2500×3500

Cantilever crane LJXJ300

This vacuum glass lifter is for handling insulating glass sheet.

This glass lifter is able to lift the glass sheet with 800kg

It is equip with 5 suckers. But the sucker can be add according to need of the client.

The equipment is Stable, Easy to use and safe.

The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.

Benefits & Advantages

Adopt SIEMENS control system, keep stable performance PLC control system, touch screen interface Automatically adjust the depth of glue with digital display Using servo to control system, modular function, superposition function Applicable to produce stepped IG, triple IG and shaped IG Two pieces of IGU can be made and filled with argon gas in one time (Optional) Min & Max glass sizes can be optional European design concept, simple and smart operation; the world-famous brand of core components, ensure stable operation and long service life; It is designed for processing high quality glass, such as reflective glass, Low-E glass, reflective glass and tempered glass; Large glass processing size, various models and customization available; Large production capacity, output 1,000pcs in working days; It can be used for two-layer, three-layer, pad and glass with irregular shape; Automatic air gas filling during the glass paper assembly process.

The coating inspection

To Avoid the Low-E glass put inverse side and Leave wheel marks or scratch low-e Coating, Jinan LIJIANG Glass uses coating inspection -metal film conductive. (others suppliers from China, usually use the photoelectric detection, and it's actually little hard to recognize for higher transparent)

The pressing box uses the high precision servo motor.

The servo motor could be accurately calculated the thickness of the Insulated glass and aluminum spacer. Compared with traditional hydraulic station. And also, it could guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.

Air floating technology - Optional

The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The equipment adopts the new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.

The first one to use adjustable points to ensure that the platen will never deform.

The whole equipment adopts CNC technology into the pressing board. It was designed the adjustable points inside the pressing board to keep the backplate straight all the time. In China, except LIJIANG, no more others suppliers could guarantee that the pressing board will remain vertical andstraight all the time after used over 10 or 20 years.

It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.

It has 6 brushes which are all soft brush, could wash and dry more difference types and sizes ofr low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass cleaning.

The whole washing machine all uses 304 stainless steel materials

The whole washing and drying section adopt 304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers.
