Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 800KG | ||
| High Light: | 800kg Cantilever Jib Crane,600kg Cantilever Jib Crane,400kg cantilever lifting device |
||
Insulating Glass 200KG/400kg/600kg/800kg Cantilever Jib Crane With Lifting Sucker and Vertical Low-e deletion machine

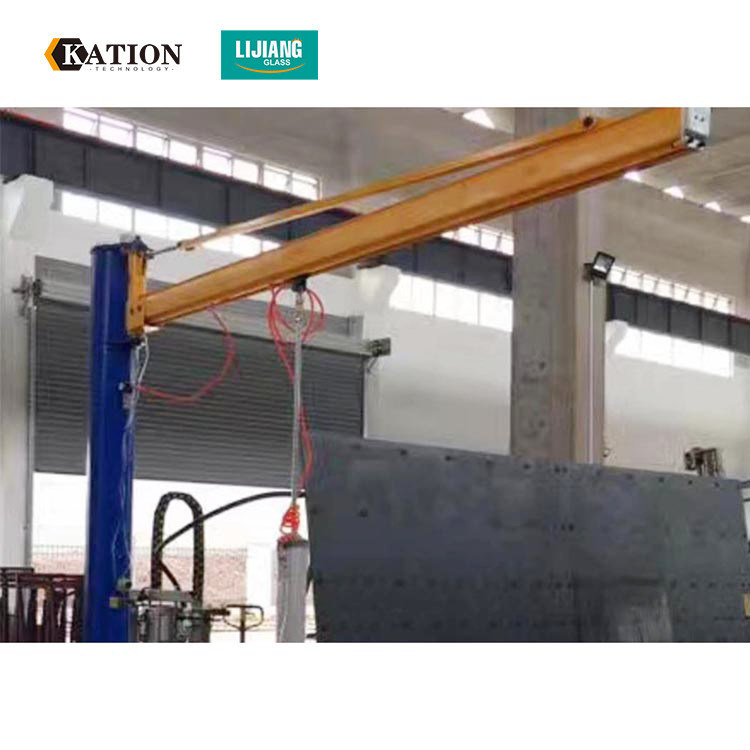

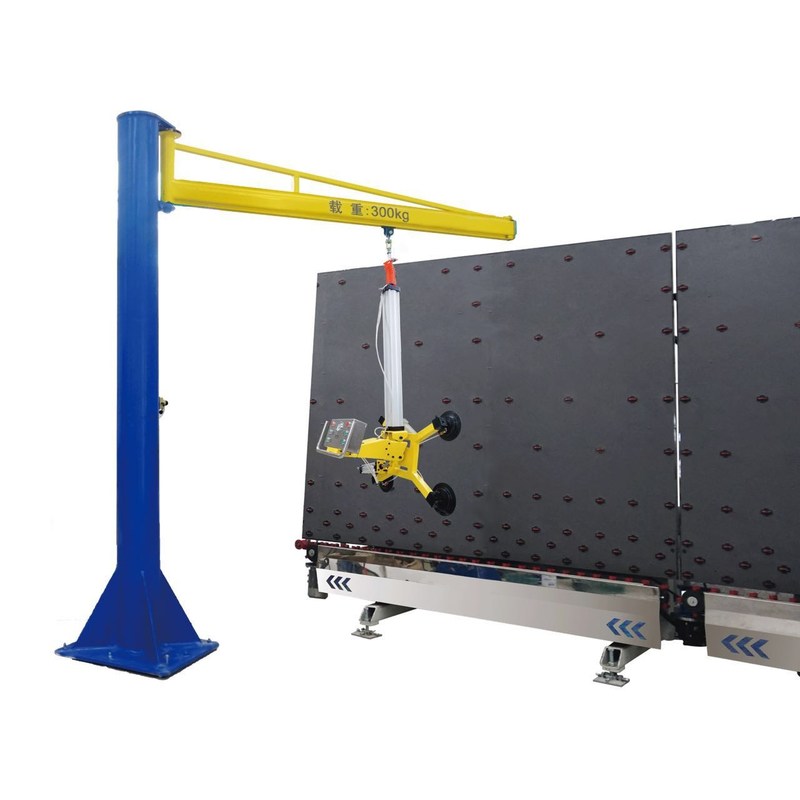

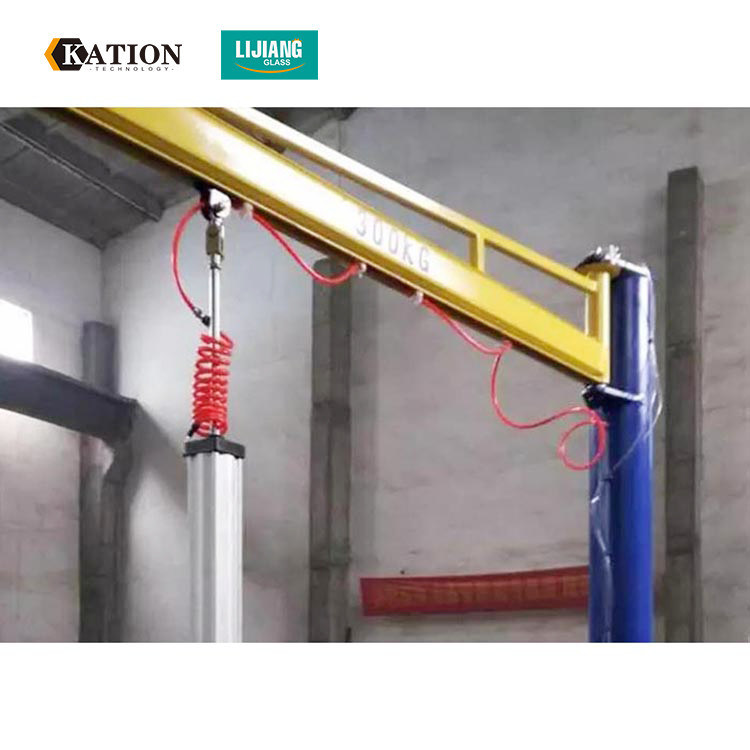

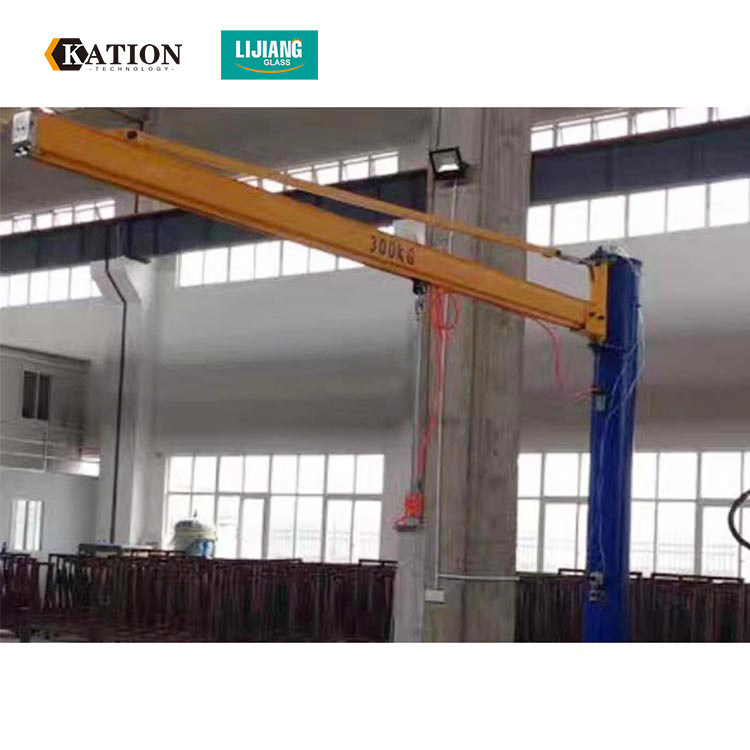

Glass Cantilever Crane with lifting sucker
1. This vacuum window regulator is intended for handling insulating glass sheets.
2. This glass lifter is able to lift the glass sheet with 800 kg

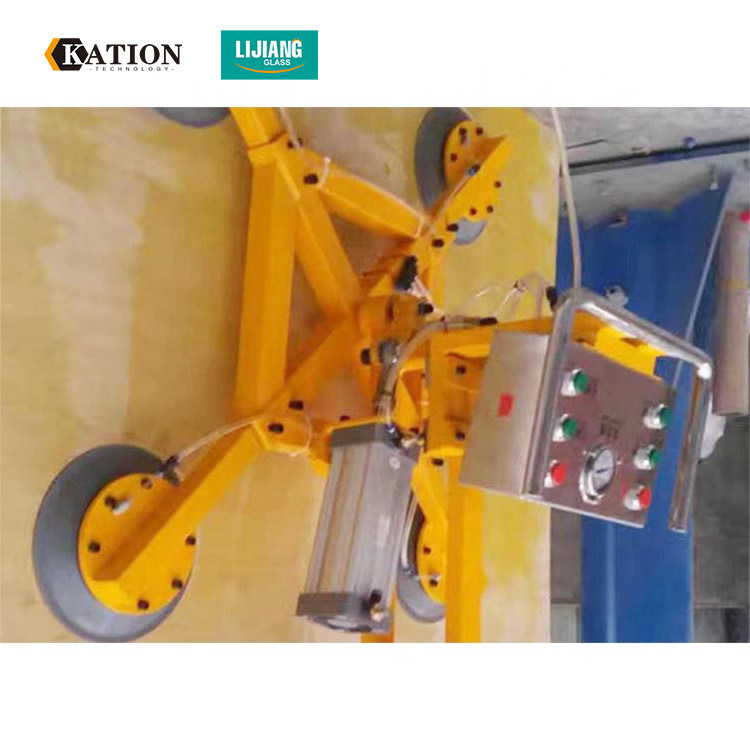

3. It is equipped with 5 suction cups. But the suction cup can be added according to customer needs.
4. The equipment is stable, easy to use, and safe.
5. The suction cup lifter is equipped with a warning light in case of power failure or vacuum leak, an optical and acoustic signal is triggered immediately to warn the operator to carry out an emergency operation.
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Useing For
- Insulating glass production line,
- Installation of a glass curtain wall system,
- Loading and unloading of the glass sheet on a glass cutting table,
- Car windshield installation.
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• two-way glass access
• Automatically measure the size
• Automatically distinguish the low emissivity surface
• Edge suppression is adjustable
• The head can be rotated 360 °
• Safe and fully automatic device
• PLC control system, touch screen interface
• Six servo control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700*2500*3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
