Name: 2500mm*3500mm Vertical Glass Washing And Drying Machine Touch Screen
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: Glass Washing and Drying Machine
Availability: InStock

Home > Products > Vertical Glass Washing Machine >

2500mm*3500mm Vertical Glass Washing And Drying Machine Touch Screen

Vertical Glass Washing And Drying Machine

2500mm*3500mm Glass Washing And Drying Machine

Touch Screen vertical glass washer

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan Lijiang Glass Machinery

Certification:

CE & ISO9000

Model Number:

Glass Washing and Drying Machine

Request A Quote

Product Details

Machine Name:

Vertical Glass Washing Machine

Max Glass Size:

2000mm*2500mm

Min Glass Size:

400mm*280mm

Glass Thickness:

3-15mm

Brushes Wire:

0.1mm

Air Knife:

Adjustable

Brushes Motor:

3 Motors

Color:

Customers' Requirement

Highlight:

Vertical Glass Washing And Drying Machine

2500mm*3500mm Glass Washing And Drying Machine

Touch Screen vertical glass washer

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiated Price

Packaging Details

Wooden Cases Package

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100 sets per month

Processing Hollow Glass 10m/Min Vertical Glass Washer

Get Best Price

Video

Automatic Vertical Glass Washing Machine For Insulating Glass Processing

Get Best Price

Video

Low-E Glass Flat Glass Washing Machine PLC Control 380V 50HZ

Get Best Price

Video

2500mmx3000mm Glass Washing Machine Use For Window Glass Cleaning

Get Best Price

Contact Now

Product Description

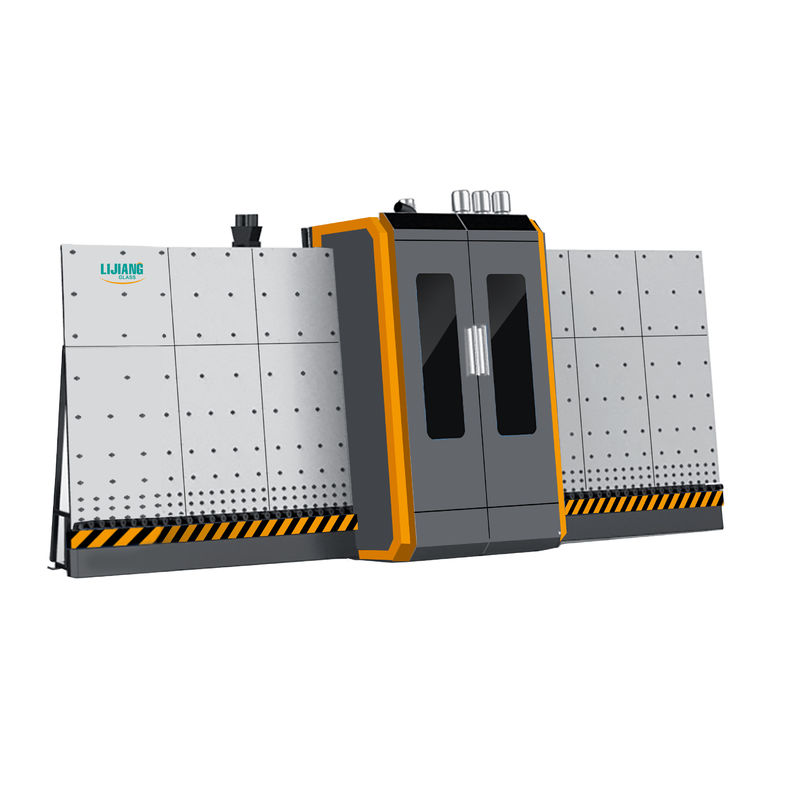

Vertical Glass Washing And Drying Machine

Product Description

Jinan LIJIANG 2535 Insulating Glass Washing Machine

LJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Advantages & Features

Advantages & Benefits

☆The machine can clean ordinary flat glass or coated glass with a thickness of 3~12mm; ☆The cleaning area uses 3 pairs of brushes or optional 4 pairs of brushes (or imported soft brushes, coating or LOE special), two or four water cleaning; ☆The machine adopts an inclined vertical structure, the flat glass is placed on the conveyor roller, passes through the feeding section, cleaning and drying section, and reaching the discharging section to complete the glass cleaning task; ☆The cleaning area and the water tank are made of stainless steel and corrosion-resistant materials; the inclined wind knife with strong wind can dry the glass surface; ☆The discharge section is equipped with inspection lamps to check the cleaning quality of the glass. The machine is easy to operate, and the operation buttons are concentrated on the operating table;

Configuration of three pairs of brushes

Six high temperature resistant wire brushes with diameter of 180mm + four sprays, the glass is cleaned and the speed is fast (10-12m per minute). The first brush is equipped with two bristles and is lifted by a cylinder.

Water rust and corrosion resistant

The parts and screws in the cleaning box that are in contact with water are made of stainless steel, copper, waterproof aluminum, nylon and other materials. They will not rust after long-term use and are easy to maintain.

High efficiency air knives

Two pairs of stainless steel air knives are equipped with high wind power and good drying effect, with the heating system. The unique circulating windshield drying system is energy-saving and low-noise (the wind temperature can reach 40 degrees without heating in winter).

Stainless steel structure

The air-drying box glass support frame is uniformly welded by high-strength stainless steel, and the whole washing parts of glass washing and drying equipment will be used for a long time without rust and will not cause secondary glass pollution.

Main Technical Parameter

Item.	Spec.
Max glass size	2000mm*2500mm
Min glass size	280mm*400mm
Washing speed	2~6m/min
Glass thickness	3 - 15mm
Washing speed	Warm Season: 8 - 10m, Cold Season: 6 - 7m
Power	18.5kw
Weight	3600Kgs
