Intelligent Program Double Layer Glass Processing Line Fully Automatic High Speed

Large Image : Intelligent Program Double Layer Glass Processing Line Fully Automatic High Speed

Product Details:

Place of Origin:	CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	2535/

Payment & Shipping Terms:

Minimum Order Quantity:	One
Price:	$75,000 per unit
Packaging Details:	container
Delivery Time:	15-30 working days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	8 units per month

Contact Now

Intelligent Program Double Layer Glass Processing Line Fully Automatic High Speed

Description

Power:	37KW, 40kw	Weight:	800Kgs
Voltage:	380V 50Hz 3P	Warranty:	1 Year
Max.Working Speed:	45m/min	Color:	Customer
Highlight:	Double Layer Glass Processing Line , Intelligent Double Glass Processing Line , Intelligent double glazing machinery

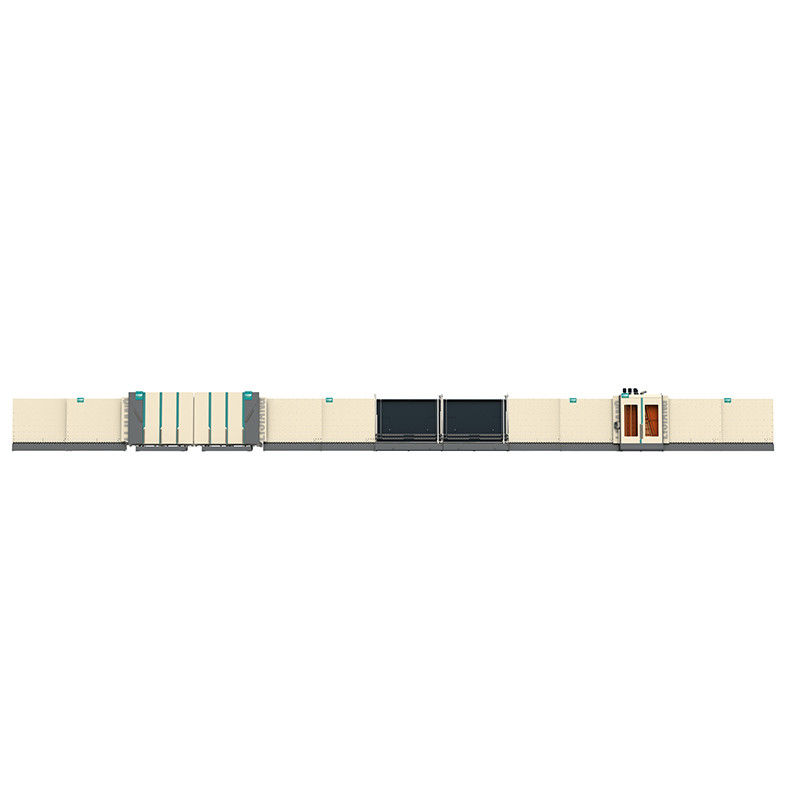

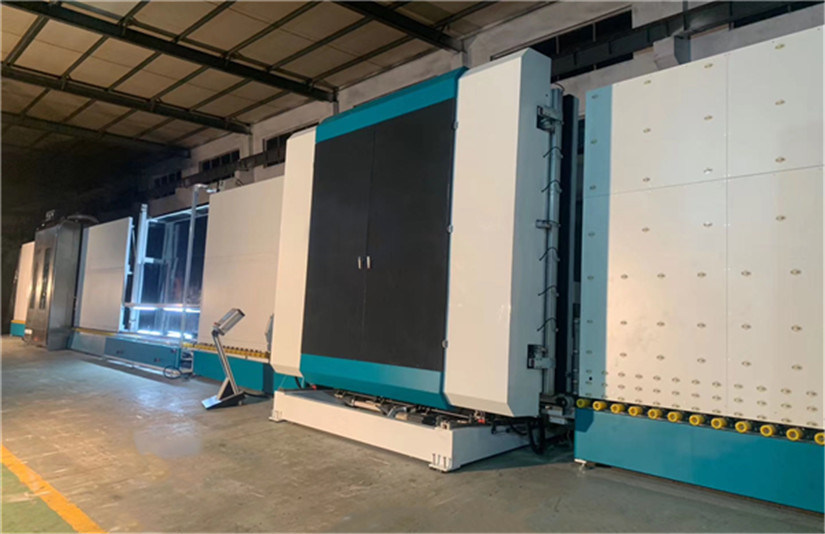

 LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

1. The washing machine uses six soft (Low-e) brushes with the 01mm diameter only.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

2. Using Europe's advanced anti-noise system to create a good working environment for employees
The noise can be controlled below 90 decibels by using nylon gear and sponges.

3. Water heating system and water filter system
As different countries have different water quality, in order to ensure that the glass is washes clearly enough, adopting air heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

			Max.glass size

			2500mm*2000mm

			Min.glass size

			450mm*280mm

			Glass thickness

			3-15mm

			IG thickness

			50mm

			Glass washing speed

			2-10m/min

			Glass conveyor speed

			45m/min

			Washing brushes

			3 pairs

			Total power

			3P 380v 50hz
