Name: Super intelligent, fast and customizable hollow glass processing production line includes inflatable function
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: 2535-
Price: 80 USD
Availability: InStock

Home > Products > Insulating Glass Production Line >

Super intelligent, fast and customizable hollow glass processing production line includes inflatable function

Combined Insulating Glass Production Line

Hollow Insulating Glass Production Line

Combined double glazing glass machine

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

Model Number:

2535-

Request A Quote

Product Details

Power:

37KW, 40kw-

Weight:

800Kgs-

Voltage:

380V 50Hz 3P-

Warranty:

1 Year-

Max.Working Speed:

45m/min-

Color:

Customers' Request-

Highlight:

Combined Insulating Glass Production Line

Hollow Insulating Glass Production Line

Combined double glazing glass machine

Payment & Shipping Terms

Minimum Order Quantity

One-

Price

$80,000 per unit-

Packaging Details

container-

Delivery Time

15-30 working days-

Payment Terms

L/C, T/T

Supply Ability

8 units per month-

Product Description

Products Descriptio

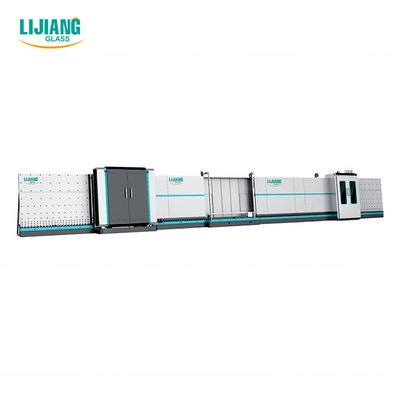

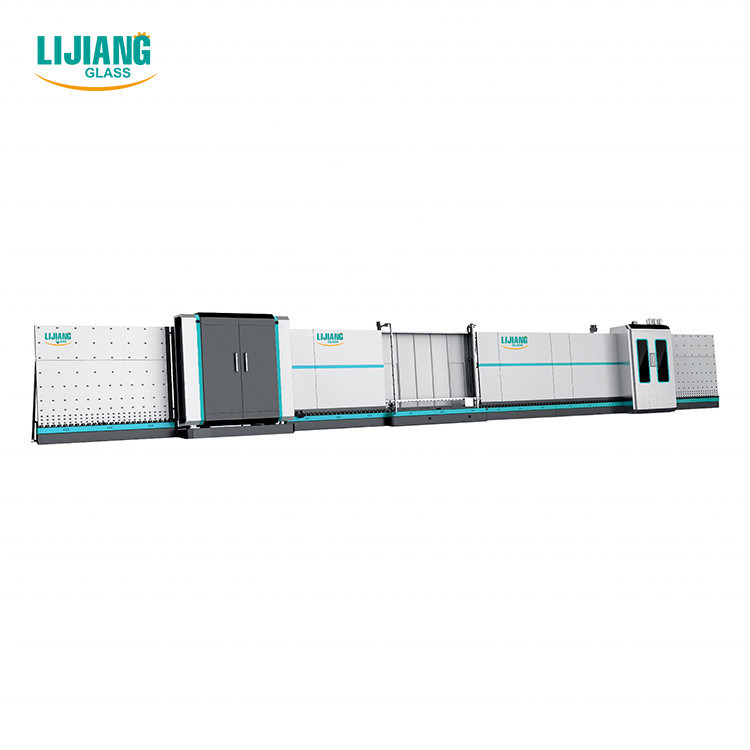

LJBZ2535 Insulating Glass Production Line

The whole LJBZ2535 Insulating Glass Production Line has 7 sections:  01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section. Optional functions:  •Step glass with optional edges •Shaped glass•Filling argon gas automatically •Air-floating technology to transfer glass •PLC control system, touch screen interface
•Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

The second part: the washing and drying section.

The 6th parts: the pressing and gas filling section

Advantages & Features

The coating inspection

To Avoid the Low-E glass or Coated glass put inverse side and Leave wheel marks or scratch low-e Coating, Jinan LIJIANG Glass uses coating inspection -metal film conductive. (others suppliers from China, usually use the photoelectric detection, and it's actually little hard to recognize for higher transparent)

The pressing box uses the high precision servo motor.

The servo motor could be accurately calculated the thickness of the Insulated glass and aluminum spacer. Compared with traditional hydraulic station. And also, it could guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.

It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.

It has 6 brushes which are all soft brush, could wash and dry more difference types and sizes ofr low-e glass, flat glass,

tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass cleaning.

The whole washing machine all uses #304 stainless steel materials

The whole washing and drying section adopt #304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers.

Air floating technology - Optional

The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The equipment adopts the new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.

The first one to use adjustable points to ensure that the platen will never deform.

The whole equipment adopts CNC technology into the pressing board. It was designed the adjustable points inside the pressing board to keep the backplate straight all the time. In China, except LIJIANG, no more others suppliers could guarantee that the pressing board will remain vertical andstraight all the time after used over 10 or 20 years.

Product Paramenters

Item.	Spec.
Max. glass size	2500mm*3500mm
Min. glass size	280mm*400mm
Glass thickness	3-15mm
Insulating glass thickness	50mm / 60mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	3P 380V 50HZ 40KW
Dimension	2350035003700mm
Weight	6500kgs

Name	Brand
Servo motor	Germany Simens
Servo driver	Germany Simens
Servo motor	Germany Simens
Servo motor	Germany Simens
PLC	Germany Simens
Low voltage component	Germany Simens
Frequency converter	Germany Simens
Switching power supply	Taiwan MW
Optoelectronic switch	Korea Autonics
Pneumatic component	Taiwan Airtac
Pneumatic component	Taiwan Airtac
Touch screen	Taiwan Wenview
Travel switch	Taiwan (TEND)
Relay	Japan Omron
Button and indicator light	French Schneider
