Name: Vertical Low E Film Deleting Machine For Insulating Glass Production
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJCM2545
Price: 37,500.00 USD
Availability: InStock

Home > Products > Insulating Glass Production Line >

Vertical Low E Film Deleting Machine For Insulating Glass Production

Low E Film Deleting Machine

Vertical Film Deleting Machine

Insulating Glass edge deleting machine

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

Model Number:

LJCM2545

Request A Quote

Vertical Low E Film Deleting Machine For Insulating Glass Production

Product Details

Voltage:

380V 50HZ

Condition:

New

Dimension(l*w*h):

9700H*2500W*3400H Mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Certification:

Weight:

2600KGS

Power(w):

15KW

Warranty:

1Year

Min. Glass Size:

300x400mm

Max. Glass Size:

3000*2500mm

Highlight:

Low E Film Deleting Machine

Vertical Film Deleting Machine

Insulating Glass edge deleting machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 35000.00 - 40000.00

Packaging Details

Container/wooden box

Delivery Time

45 days

Payment Terms

L/C, T/T

Supply Ability

50sets/month

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

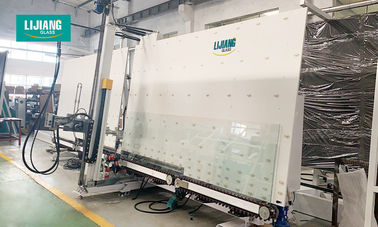

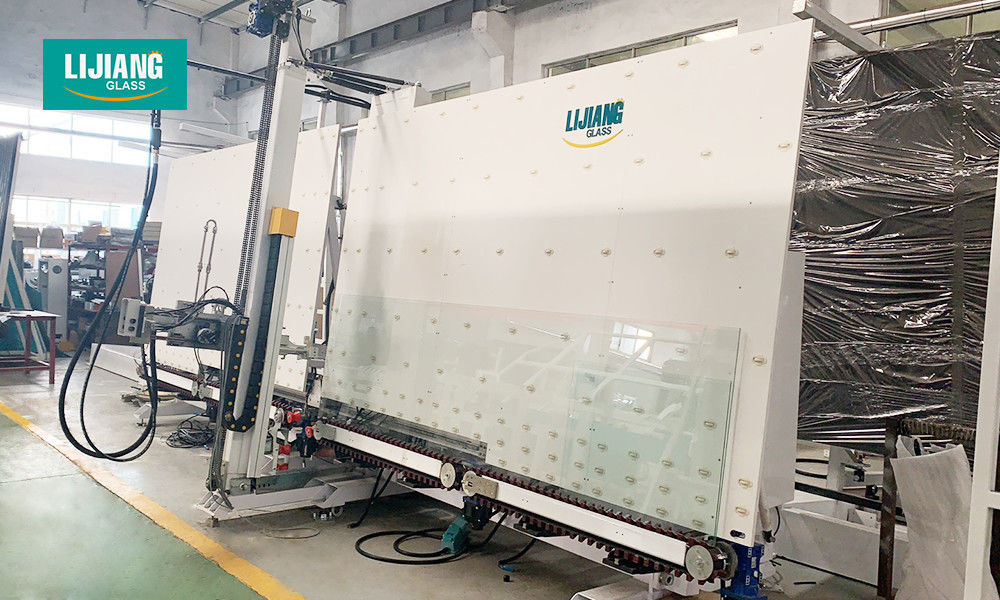

Automatic Vertical Low-e Film Deleting Machine for insulating glass Production

Vertical Low E Film Deleting Machine For Insulating Glass Production 0

APPLICATION

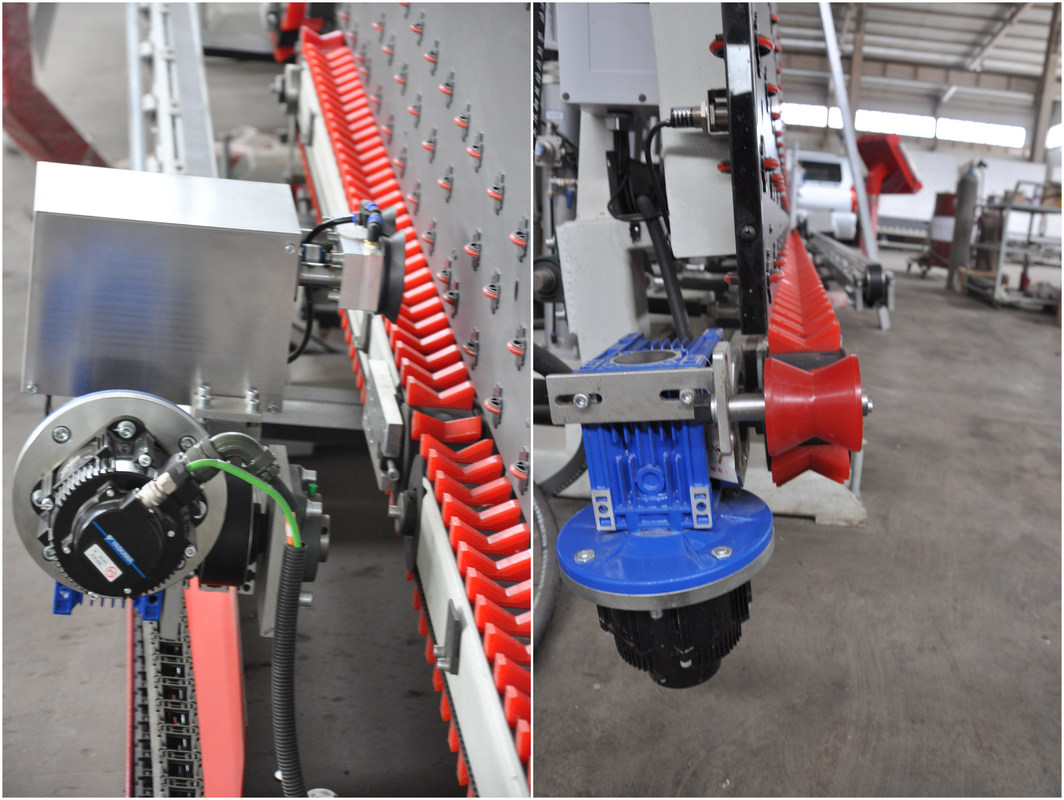

This equipment is specialized for low-e glass deleting edge with vertical structure and convenient production line connection.Transmission adopts imported servo control system, accurate positioning and smooth operation. High quality grinding wheels are durable and can produce neat and beautiful grinding

crack. Distance can be set among 10 ~ 150 mm arbitrarily.

SPECIFICATION


			Transmission speed
			2~29m/min

			Edge finish speed
			2~29m/min

			Glass thickness
			3~15mm

			Diameter of grinding wheel
			200mm

			Width of grinding wheel
			10/12/15mm

			Grinding wheel speed
			0~3000r/min

			Min.Glass
			400×400mm

			Max. Glass
			2500×4000mm

			Conveyor height
			500mm

			Dimensions
			9700×2500×3400mm

● Automatic measure function, no need to input the glass size.

● The width of edge deletion is adjustable and can remove film repeatedly.

● Film dust is equipped with suction device to reduce dust pollution.

● Grinding pressure, grinding speed and grinding wheel speed adjusted at any time according to different film.

● Compatible with left and right feeding direction.

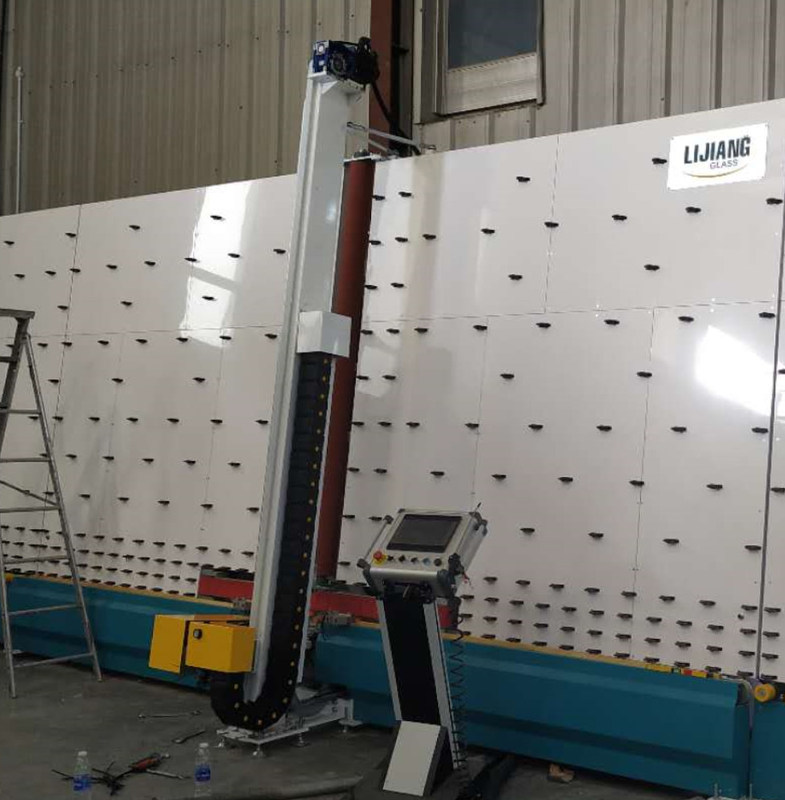

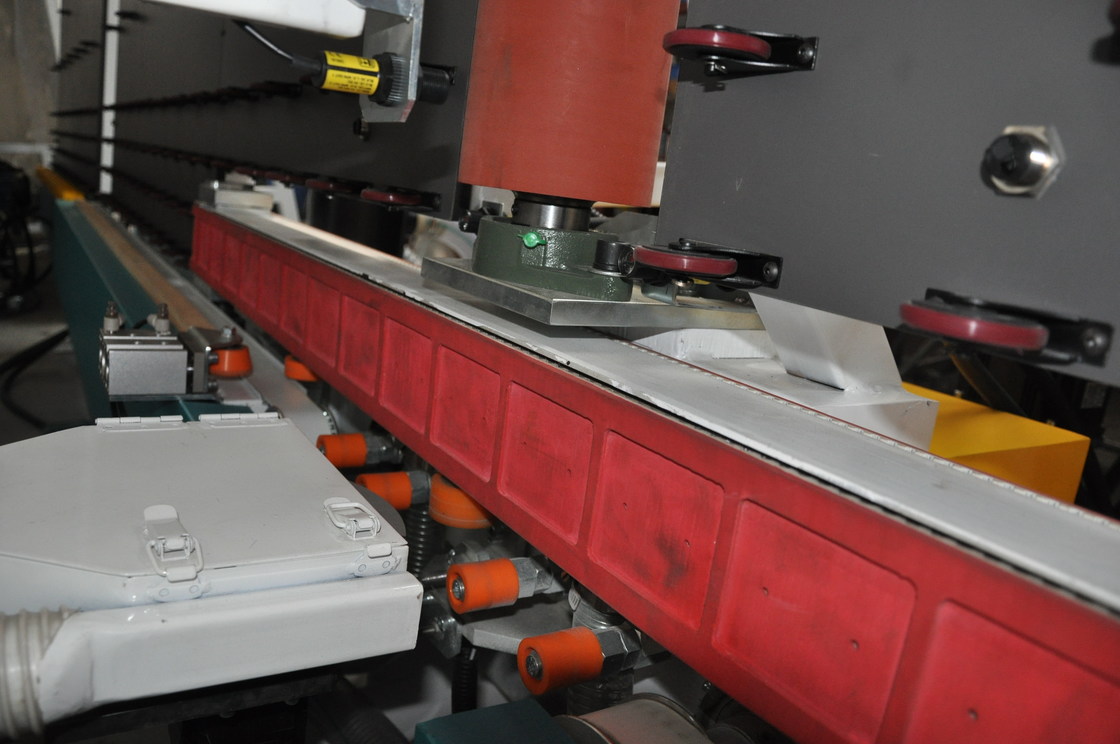

Vertical Low E Film Deleting Machine For Insulating Glass Production 3

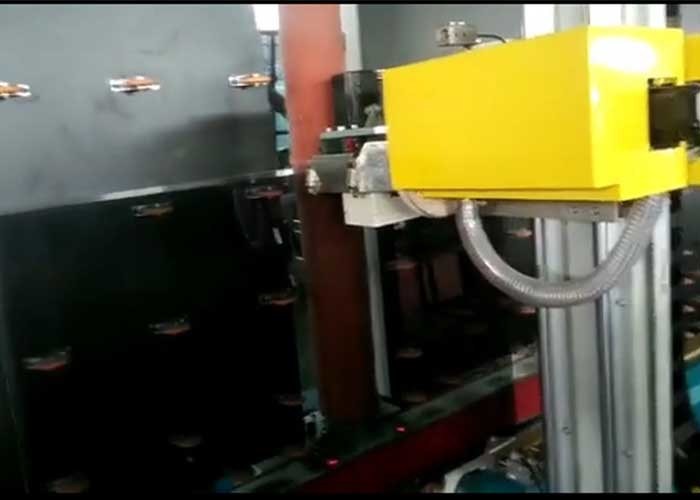

Vertical Low E Film Deleting Machine For Insulating Glass Production 4
