Name: Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: 2020A
Price: 32,500.00 USD
Availability: InStock

Home > Products > Insulating Glass Production Line >

Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function

Aluminum Strip Bending Machine

Insulating Glass Strip Bending Machine

Spacer Printing metal strip bending machine

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

Model Number:

2020A

Request A Quote

Aluminum Strip Bending Machine For Insulating Glass Spacer Printing Function

Product Details

Voltage:

380V 50HZ

Condition:

New

Dimension(l*w*h):

10500mm*2200mm*2500m

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Certification:

Weight:

1000KG

Power(w):

3KW

Warranty:

1Year

Name:

Aluminum Spacer Machinery

Highlight:

Aluminum Strip Bending Machine

Insulating Glass Strip Bending Machine

Spacer Printing metal strip bending machine

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 30000.00 -35000.00

Packaging Details

Container/wooden box

Delivery Time

45 days

Payment Terms

L/C, T/T

Supply Ability

50sets/month

Automatic glass 3mm Vertical Insulating Glass Machine IG Production Line

Get Best Price

Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Get Best Price

Video

Automatic Insulating Glass Production Line Jumbo Size 3300mm*7000mm

Get Best Price

Double Glazing Thick 60mm Insulating Glass Production Line For Washing And Pressing

Get Best Price

Contact Now

Product Description

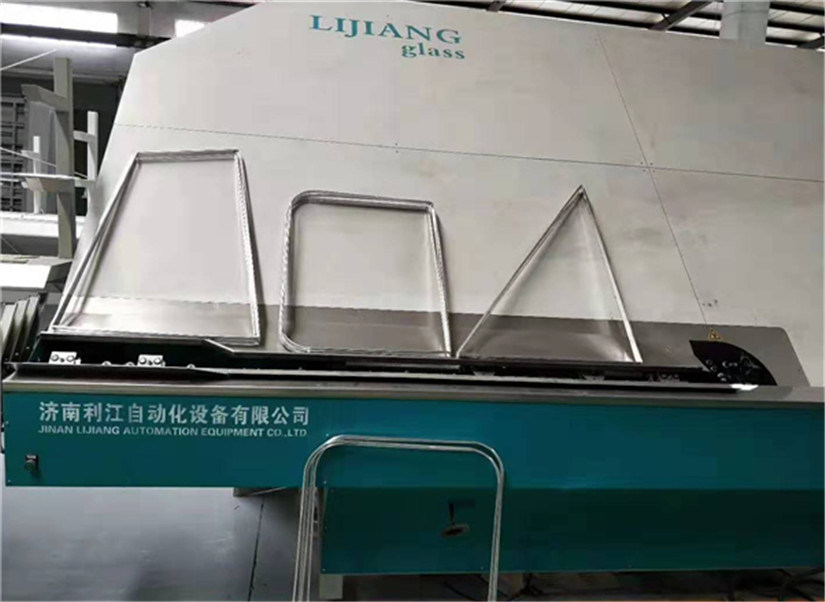

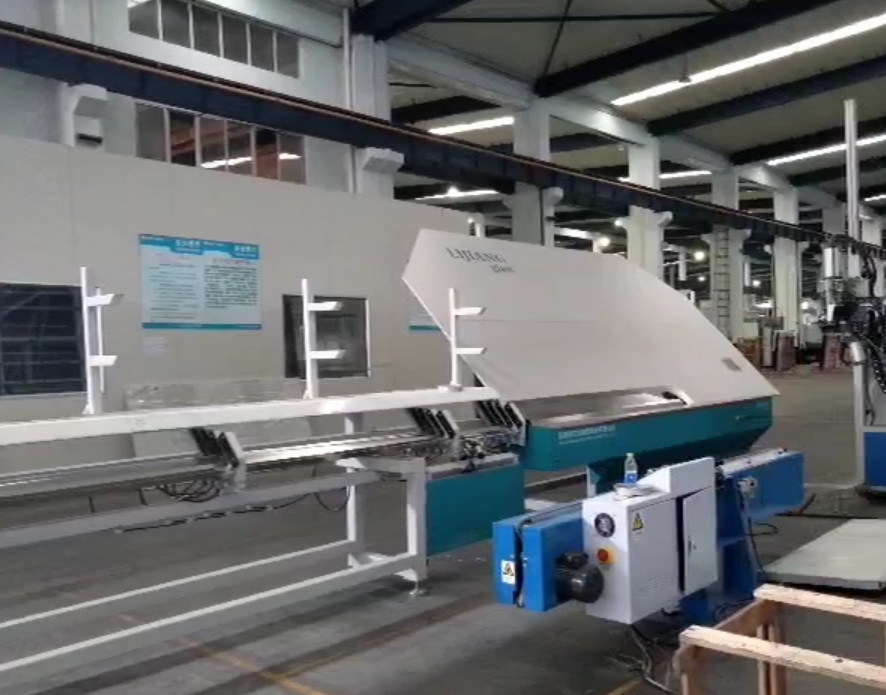

Aluminum strip bending machine for insulating glass with Spacer printing function

1.Application

insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

2. Equipment details

Adopt Siemens PLC control system

There are 4 Siemens servo

Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks. Automatically cut and feed aluminum spacers Bend shaped spacer frames continuously Automatically avoid the connecting corner while bending and cutting

Item.	Spec.
Max.bending size	2000mm*2000mm
Min.bending size	250mm*200mm

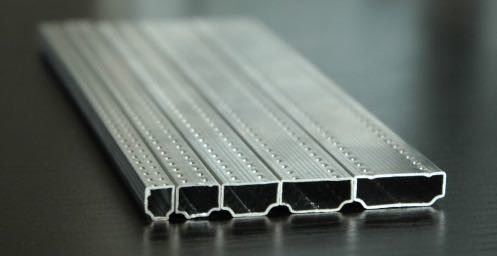

Aluminum spacer width	6A-27A
Dimension error	±0.5mm
Angle error	±1
Air supply	≥0.65Mpa
Total power	AC 220V/380V 50HZ 2.5KW
