Big Glass Vertical Glass Washing Machine Fully Automatic For Hollow Galss

Large Image : Big Glass Vertical Glass Washing Machine Fully Automatic For Hollow Galss

Product Details:

Place of Origin:	China
Brand Name:	LIijiang Glass
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 20000.00 - 35000.00
Packaging Details:	Container/wooden box
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	50sets/month

Contact Now

Big Glass Vertical Glass Washing Machine Fully Automatic For Hollow Galss

Description

Voltage:	380V 50HZ	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Condition:	New	Warranty:	12 Months
Product Name:	Vertical Flat Glass Washing Machine Insulating Double Glass Washer	Color:	Customers' Request
Application:	Flat Glass Washing
Highlight:	Big Glass Vertical Glass Washing Machine , Hollow Galss Vertical Glass Washing Machine , IG Glass Vertical Glass Washing Machine

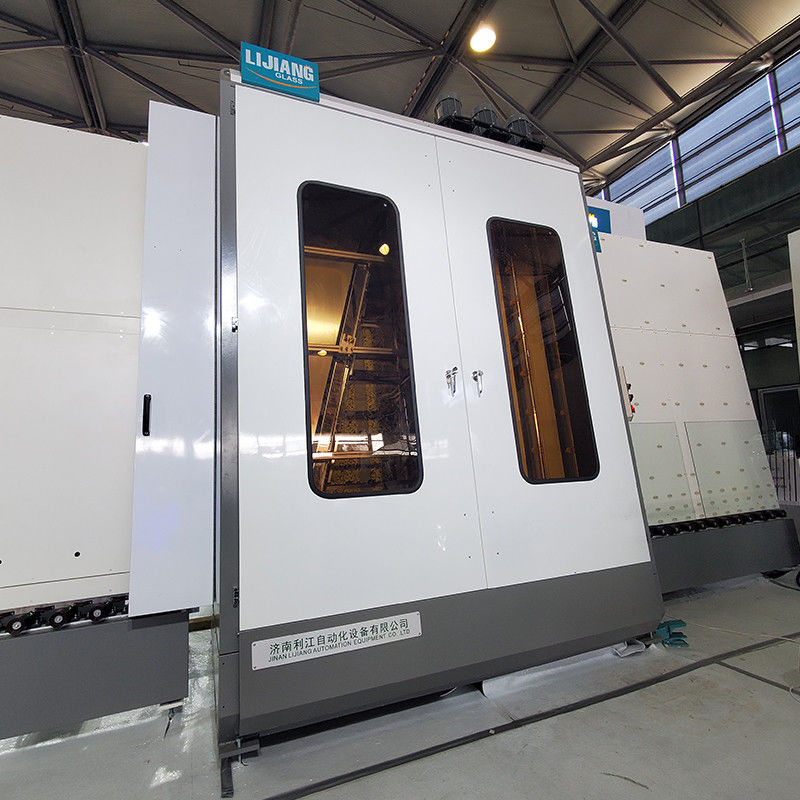

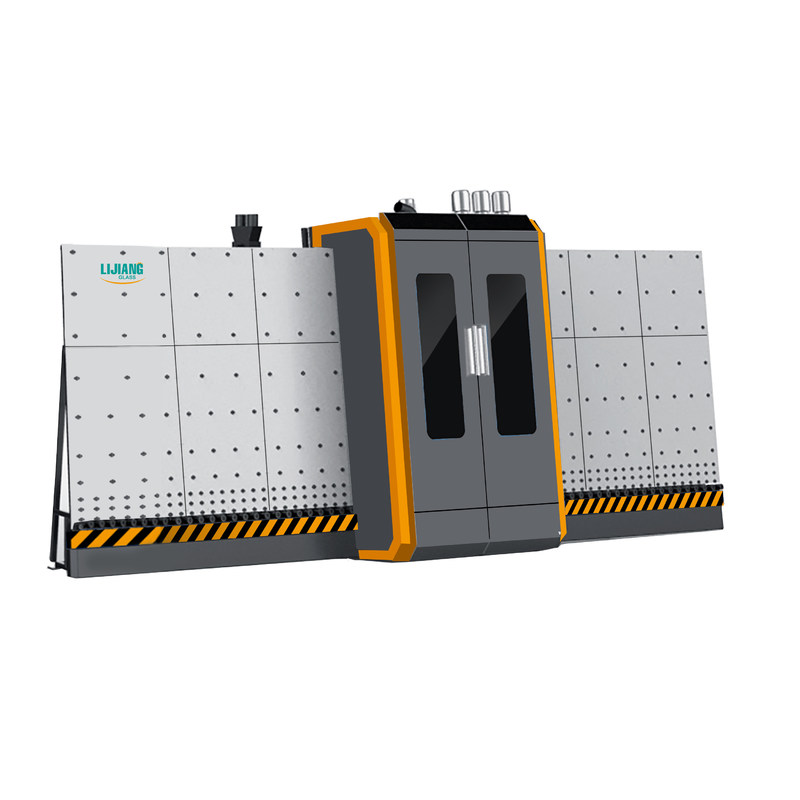

Fully Automatic Big Glass Vertical Glass Washing Machine

Product Description

Insulating Glass Washing Machine

LJBQX2535 insulating glass washing machine can wash max glass of 2500mm*3500mm, more large size and less size can be optional. - Self-Diagnosis system with touch screen on computer. - Stainless steel washer with 8 ( 6 ) brushes, soft brushes from MONFORTS of Germany, hard brushes automatically open when Low-E glass input. - Rotate speed of brush frequency control. (optional) - Stainless steel air knife is automatically adjustable according to glass thickness, Max thickness to 19mm - High speed cleaning ( max 14m/min), Low noise ( max 70dB), high availability working. ( 25 second /unit) - Automatic detection of Low-E glass and alarm for coating in reverse. (optional) - Structure stepped and three-layer I.G. unit available. (optional) - Precision of plate press: ±0.3mm

Details Display

Benefits & Advantages

Stainless steel water contact parts;

Suitable for cleaning and drying of flat glass ;

The top washing section height can be adjusted;

Three pairs of high quality brushes and air knives;

Processing speed can be adjusted by the step less regulator;

This special design makes the glass clean and dry even at the corner position.

Top open for 1.5m machine for option.

Technical parameter

Item.		Spec.
Max glass size		2000*25000mm
Min glass size		280*450mm
Pane glass thickness		3-18mm
Washing speed		0-18m/min
Dimension(LWH)		630015002400mm
Work pressure		0.5~0.8MPa
Power Supply		380V 50Hz 19Kw
Total weight		3000kg

Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to change the Spec., please let us know.

Advantages & Features

1. There is the Low-e glass sensor in the washing machine This sensoris installed before washing machine. It could automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.

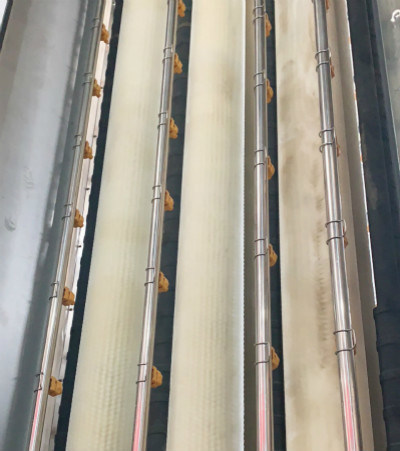

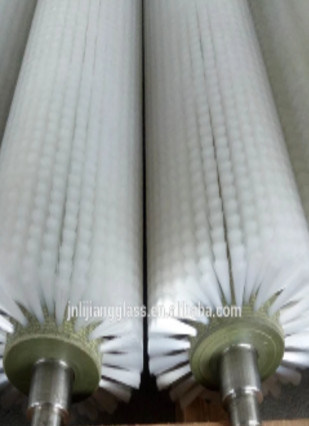

2. The washing machine uses six soft (Low-e) brushes with the 01mm diameter only. It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.

3. Using Europe's advanced anti-noise system to create a good working environment for employees. The noise can be controlled below 90 decibels by using nylon gear and sponges.

4. Water heating system and water filter system.As different countries have differentwater quality, in order to ensure that the glass is washes clearly enough,adoptingair heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.

5. The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*m insulating glass. 1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.
