Spacer Frame Molecular Sieve Desiccant Filling Machine For Glass Manufacturing

Product Description:

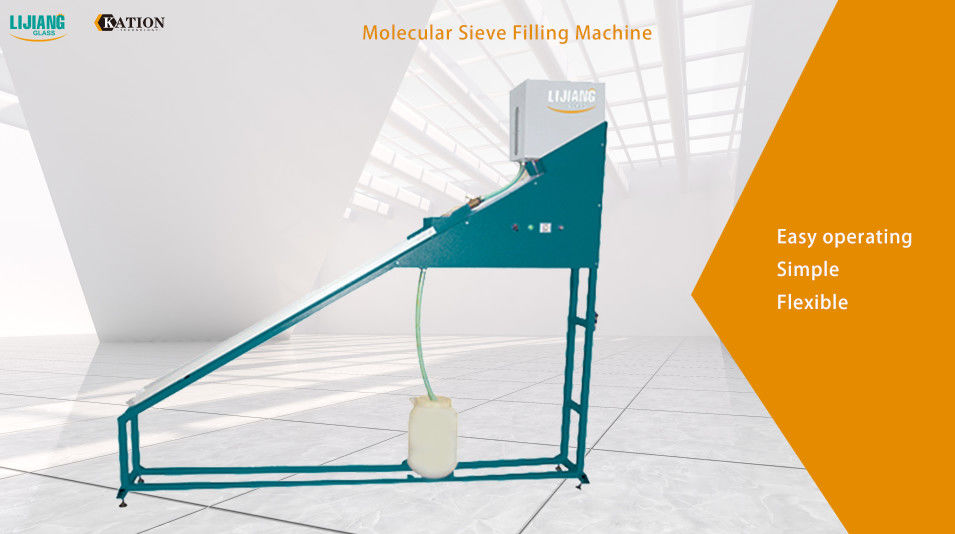

Semi-automatic Spacer Frame Molecular Sieve Desiccant Filling Machine for glass manufacturing machinery and equipment .

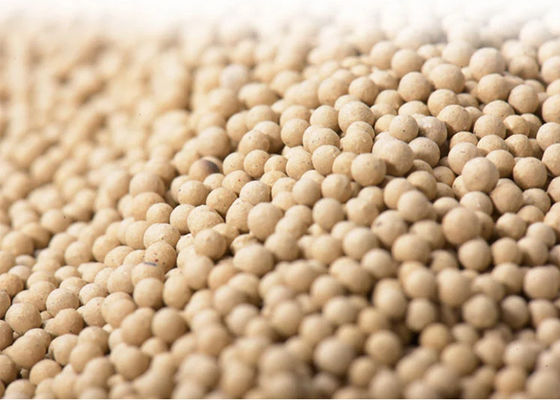

Manual molecular sieve filling machine can effectively seal the molecular sieve for the aluminum spacer frame to keep the aluminum spacer frame dry and avoid moisture absorption.

Advantage :

•PLC control system, touch screen interface

•Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

•The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

•Fast preheat, improve work efficiency

•with preheating function

•With exhaust inflatable function, improve the quality of sealing and save time for plastic

•Quickly coating speed,can up to 47m/min

•Saving the amount of glue

Technical Parameter:

Product Detail:

Automatic Spacer Bending Machine

1. It can set 4 specifications and 32 sizes (8 for each specification) of the original glass sheet size data. The bending machine automatically calculates the aluminum frame data according to each size for sorting, continuous processing, greatly improving efficiency and speed.

2. In addition to start stop operation, all operations are completed on the touch screen, and the mobile operation platform is available. Chinese / English or other languages operation interface, easy to operate, natural, easy to understand.

3. The CNC bending angle control system is adopted, with an adjustable accuracy of 0.1 °.

4.The CNC servo feeding system is adopted, and the adjustable precision of aluminum frame size is 0.1M m/m

5. There is no tailing design, except for cutting loss, zero head processing can be realized.

6. There are four automatic storage tanks, which can store 4-6m aluminum strip materials of four specifications.

7. It has the function of high-speed automatic continuous cutting of aluminum strip.

8. The bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.

9. The aluminum spacer bar is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).

Optional functions :

1. Printing logo and data on spacers with ink.

2. With ERP function

3. Printing label with 3 sizes one the paper sticker

4. Bending different shapes

Technical data :

Electrical parameters:

Relative Machines:

1.Aluminum Spacer Bending Equipment

2.Automatic Desiccant Filler

3.Insulating Glass Sealing Robot

4.Glass Cutting Table

5.Custom Glass Edging Machine

Product Description :

Aluminum Frame Transfer Machine

1. Spacer frame transport

2. Easy operating

3. Simple and flexible

4. Connect with insulating glass line

5. Connect with automatic butyl extruder machine

Technical data:
