Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass

Silicone Polysulfide Sealant Extruder

Hollow Glass Sealant Extruder

Hollow Glass two component sealant extruder

Place of Origin:

China

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJTJ2025

Contact Us
Request A Quote
Product Details
Voltage:
380V 50Hz
Weight:
3700KG
Dimension(L*W*H):
11000*2000*3500mm
Max Glass Size:
2000*2500mm
Glass Thickness:
12-50mm
Air Pressure:
0.8Mpa
Highlight:

Silicone Polysulfide Sealant Extruder

,

Hollow Glass Sealant Extruder

,

Hollow Glass two component sealant extruder

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
US$55,000 each
Packaging Details
Wooden boxes and containers
Delivery Time
10 working days
Payment Terms
L/C, T/T
Supply Ability
10 units per month
Product Description

Two-component Silicone Polysulfide Sealant Extruder Spreading Machine for Insulating Glass Hollow Glass Double Glazed Pr

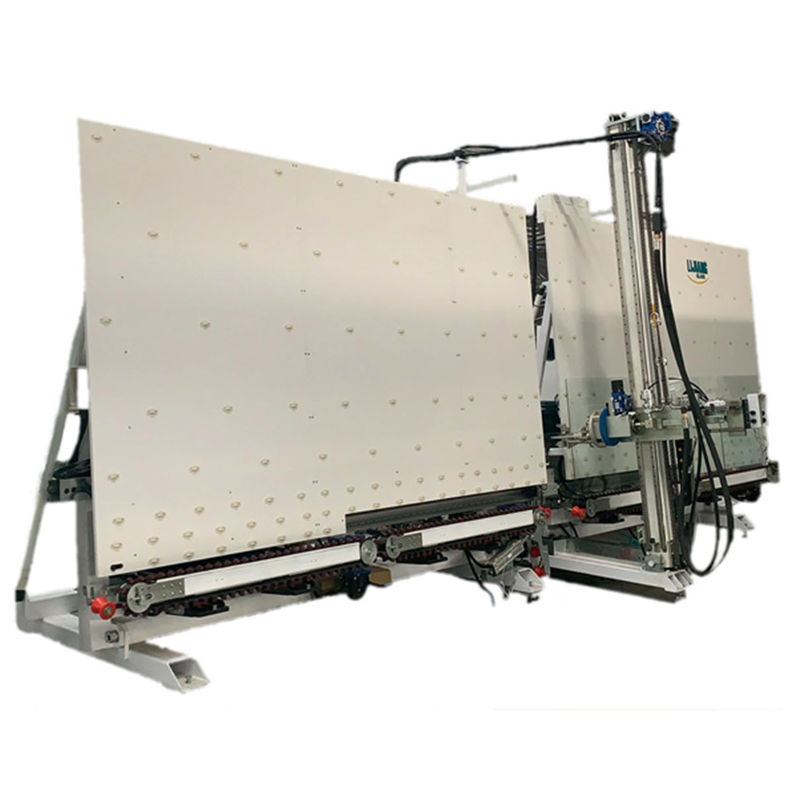

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 0
Machine Description
This type of machine is a full automatic and high-efficienc sealing robot for insulating glass processing. Automatically measure glass size, glue depth and glue speed with linear adjustment. Single-function parts are equipped with manual functions, easy adjustment.Can coating more than 8 kinds of shaped glass,include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc.

Main Feature
* Can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) stepped glass
* Can coat triple glass by one time
* Fast reacting and volume controlled dosing system for IG glass, 2-component sealant
* The glass edge and corner is full without air bubbles, smooth surface, no need to repair the corner
* Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
* Electric and compressed air switch valve: Ensure electrical automatic switch, stable performance and uniform coating.
* Japan YASKAWA servo motor and CPU, Siemens low-voltage electrical appliances.

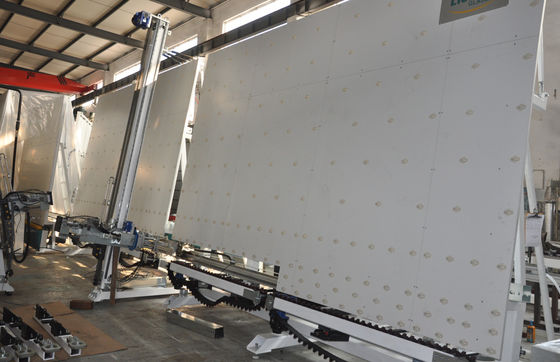

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 1

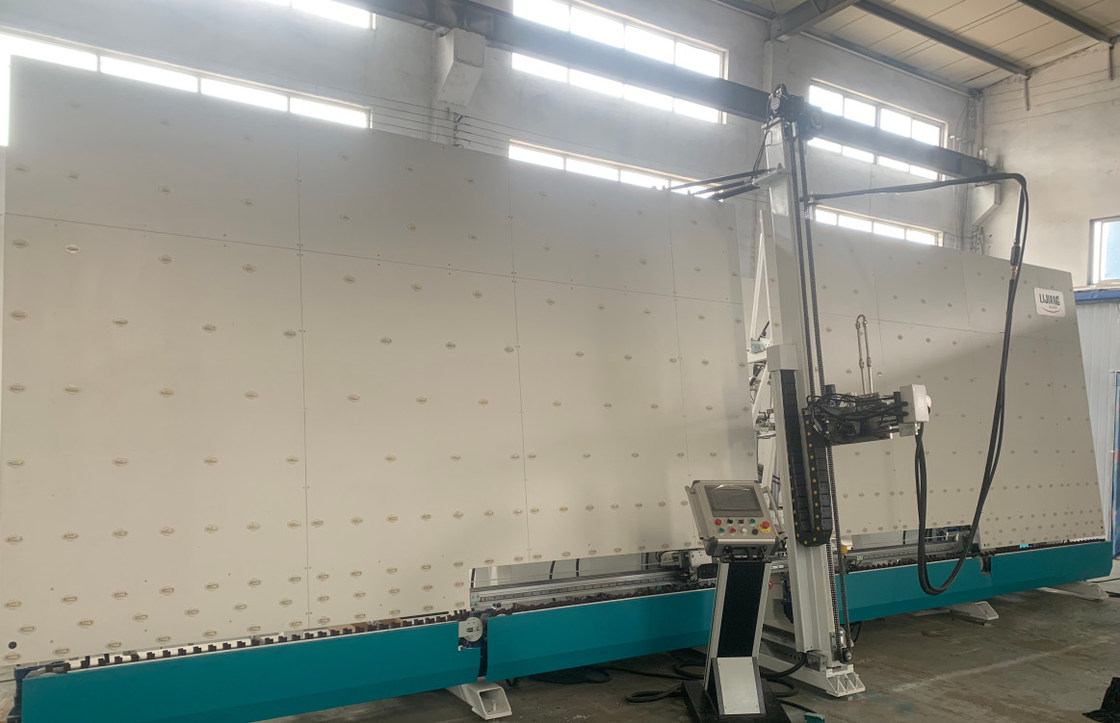

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 2

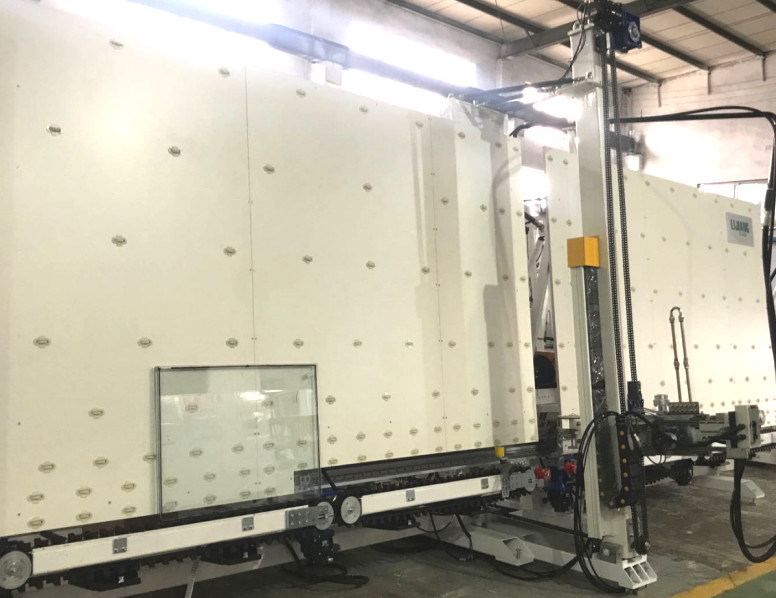

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 3
Item.
Spec.
Max. glass size
2000*2500mm
Min. glass size
300*300mm
Glass thickness
12-56mm
Working speed
5-40m/min
Air pressure
0.5-0.7MPa
Squeeze pressure
32MPa
Overall dimension
8000*1500*2700mm
Max. dimension
11000*2000mm
Name
Brand
Switch
SIEMENS
Servo motor
Japan YASKAWA
I/O model
Japan MSYSTEM
Lower voltage component
Siemens
CPU
Japan YASKAWA
Frequency converter
Japan OMRON
Switching power supply
Taiwan MW
Pneumatic component
Japan SMC
PLC
Siemens
Guideway
Siemens
Above Information is the Specification from Jinan LIJIANG Glass Standard.
If customers want to change the Spec., please let us know.
Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 4



►►►Sealing head showing

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 5



►►►Sealing head showing

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 6



►►►Electrical parts Showing

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 7



►►►Electrical parts Showing

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 8



►►►Two pumps system

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 9



►►►Sealing result showing

Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 10
Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 11
Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 12
Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 13
Two-Component Silicone Polysulfide Sealant Extruder For Insulating Glass Hollow Glass 14
