Name: Horizontal Glass Washing And Drying Machine For Double Glazing Machinery
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJWBQJ2500
Price: 25 USD
Availability: InStock

Home > Products > Horizontal Glass Washing Machine >

Horizontal Glass Washing And Drying Machine For Double Glazing Machinery

Horizontal Glass Washing And Drying Machine

25mm Glass Washing And Drying Machine

W2500mm Glass Washing And Drying Machine

Place of Origin:

CHINA

Brand Name:

LIJIANG

Certification:

Model Number:

LJWBQJ2500

Request A Quote

Product Details

Power:

42Kw

Dimension(L*W*H):

6260*4800*3100

Weight:

3940Kg

Warranty:

1 Year

Glass Thickness:

2-25mm

Marketing Type:

Ordinary Product

After-sales Service:

Online Support, Free Spare Parts, Field Installation

Highlight:

Horizontal Glass Washing And Drying Machine

25mm Glass Washing And Drying Machine

W2500mm Glass Washing And Drying Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

US$25,000 each

Packaging Details

Wooden box and Container

Delivery Time

14 work days

Payment Terms

L/C, T/T

Supply Ability

15 units per month

Horizontal Glass Washing And Drying Machine For Insulating Glass Processing

Get Best Price

Horizontal Flat Glass Washing Machine For Insulating Glass Processing

Get Best Price

2500mm 2650mm Horizontal Flat Glass Washing Machine Easy Operate

Get Best Price

Video

Thickness 2mm-25mm Horizontal Glass Washing Machine For Glass Deep Processing

Get Best Price

Contact Now

Product Description

LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

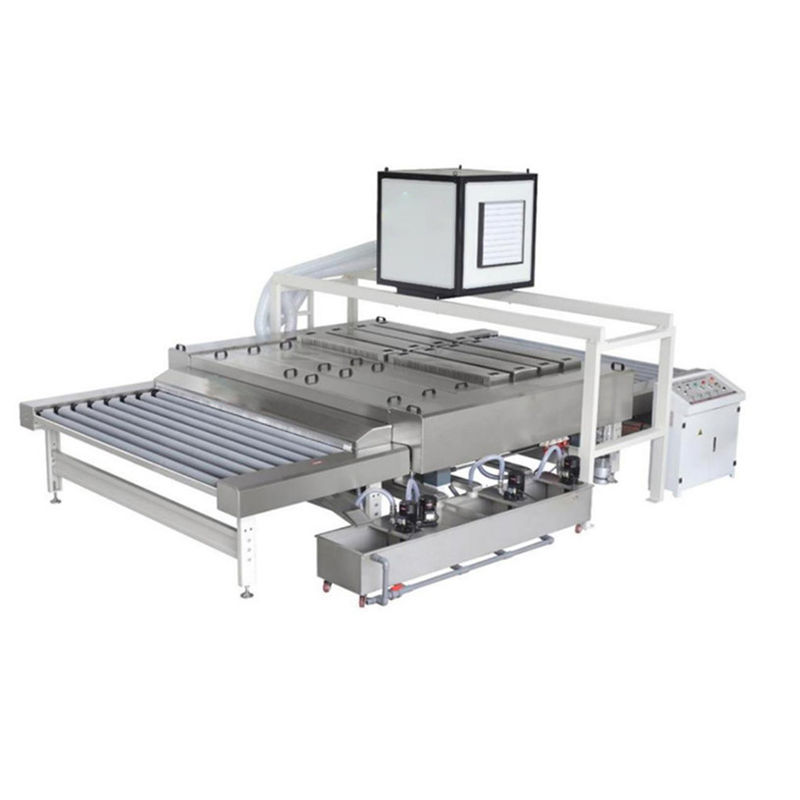

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500

Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out going segment.Structural characteristics:

* The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；

* Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency, energy saving 70% efficiency；

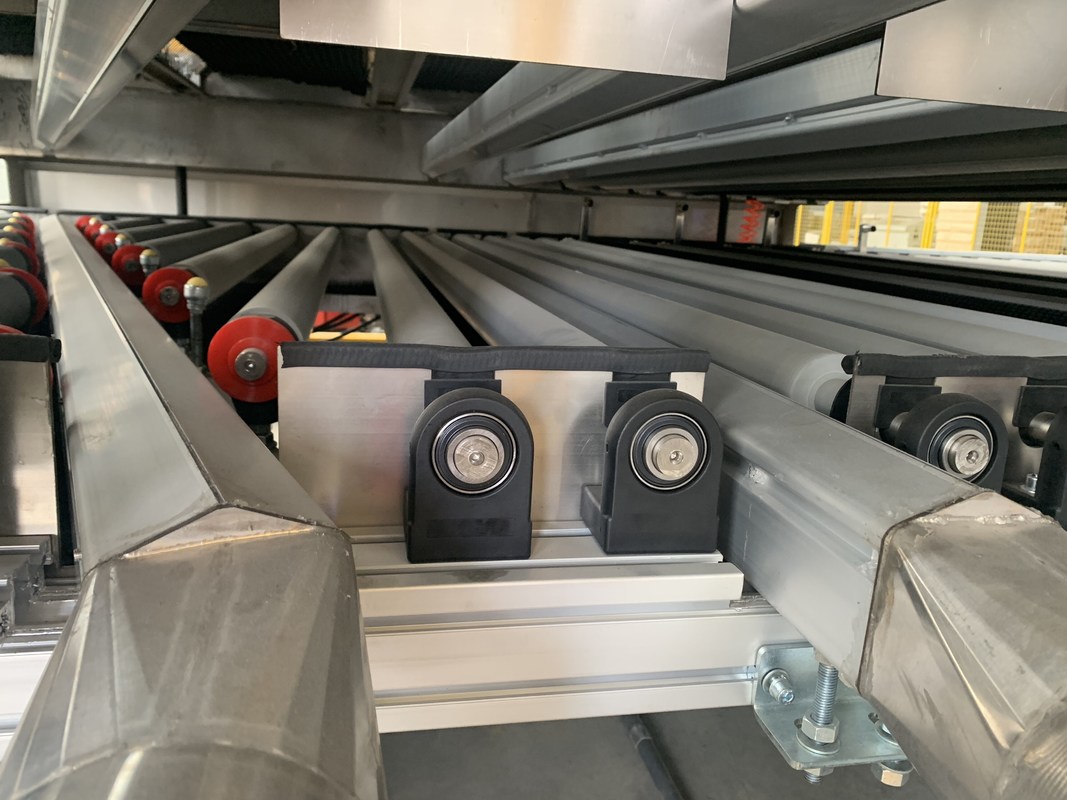

* The rubber roller is made of vulcanized rubber with stainless steel shaft；

* The washing part in contact with water is made of stainless steel；

* Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；

* Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；

* Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；

* The fan is equipped with air filter in the air inlet chamber, with large air volume and good air drying effect,The whole fan box is installed in the upper part of the workshop, with the air filter screen on the side for easy inspection and cleaning；

* Main drive for gear transmission, frequency control, digital display , the rotation of the brush roller in the washing section is driven by independent belts of the upper and lower motors respectively, the frequency conversion adjustment speed is stable,the service life is long, realizes the cleaning high request special glass；

* Mechanical button control, cleaning machine digital display, easy to operate, easy to operate, easy to maintain；

* Washing machine water tank outside, convenient water tank cleaning, water change, check, so that the washing machine cleaning effect is cleaner.

* Optional with PLC control, touch screen display.It is convenient for workers to operate and maintain, and can be connected to all manufacturers of edge grinding machines without gap.(purchase separately if necessary)

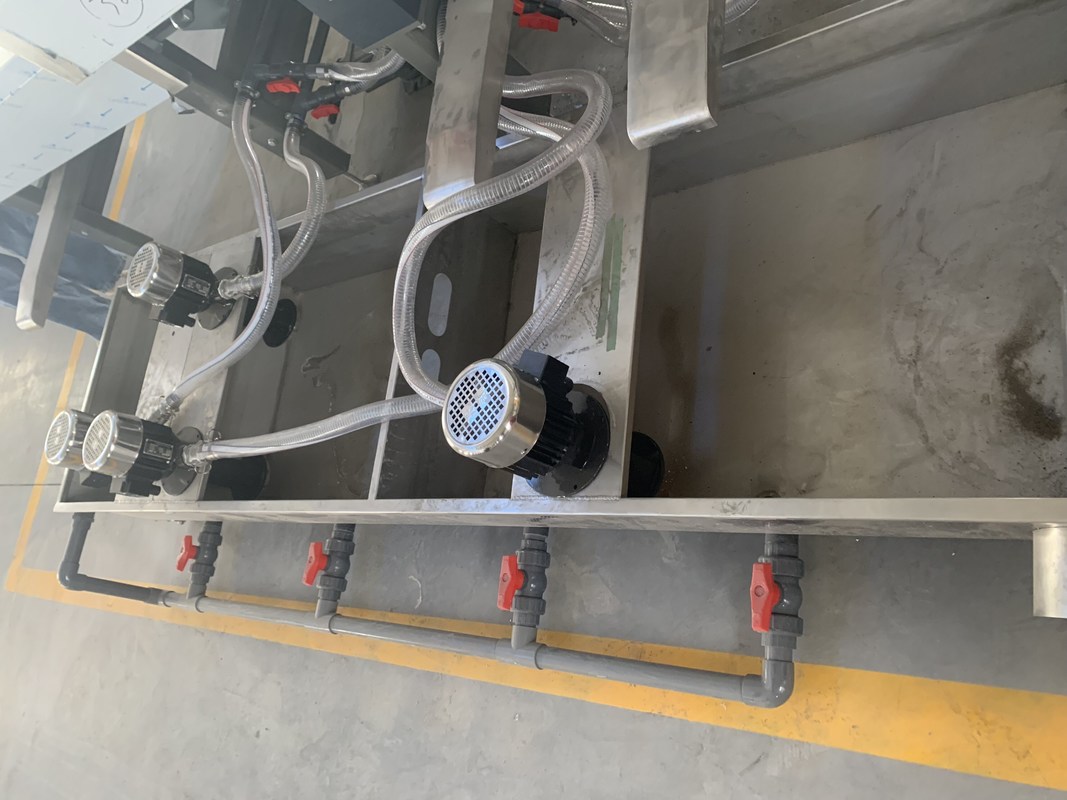

►►►Water tank( stailess steel)

►►►Water tank( stailess steel)

►►►CE standard electrical connecting design

►►►Drying knife design

Maximum glass width	2500mm (effective maximum: 2650mm)
Minimum glass specification	400mm×400mm (limited to single row on left and right sides)
Glass thickness	3mm-25mm (digital display)
Speed range	glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method	frequency control
Table height	900±25mm
Total power	42KW(water-bearing wind heating: 15KW)
Water source	self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source	380V 50Hz
Dimensions (length × width × height)	approximately 626048003100mm
Weight	3940kg

About Us:

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. It is an enterprise which

integrated glass processing equipment research and development, sales and service into a whole world . As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient. The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importingadvanced technology and so on.With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
