Product Details:
|
| Name: | Arc Glass Edge Banding And Polishing Finish Machinery | Max. Glass Processing Size: | 2500*4500mm |
|---|---|---|---|
| Min. Glass Processing Size: | 400*280mm | Glass Thickness: | 3-15mm |
| Diameter Of Grinding Wheel: | 200mm | Abrasive Wheel Width: | 10/12/15mm |
| High Light: | Arc Insulating Glass Edge Grinding Machine,15mm Insulating Glass Edge Grinding Machine,400*280mm glass edge polishing machine |
||

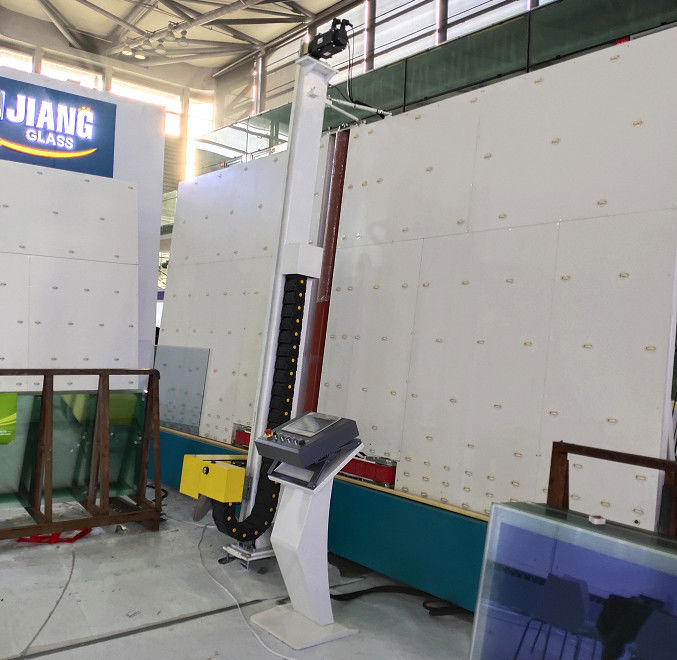

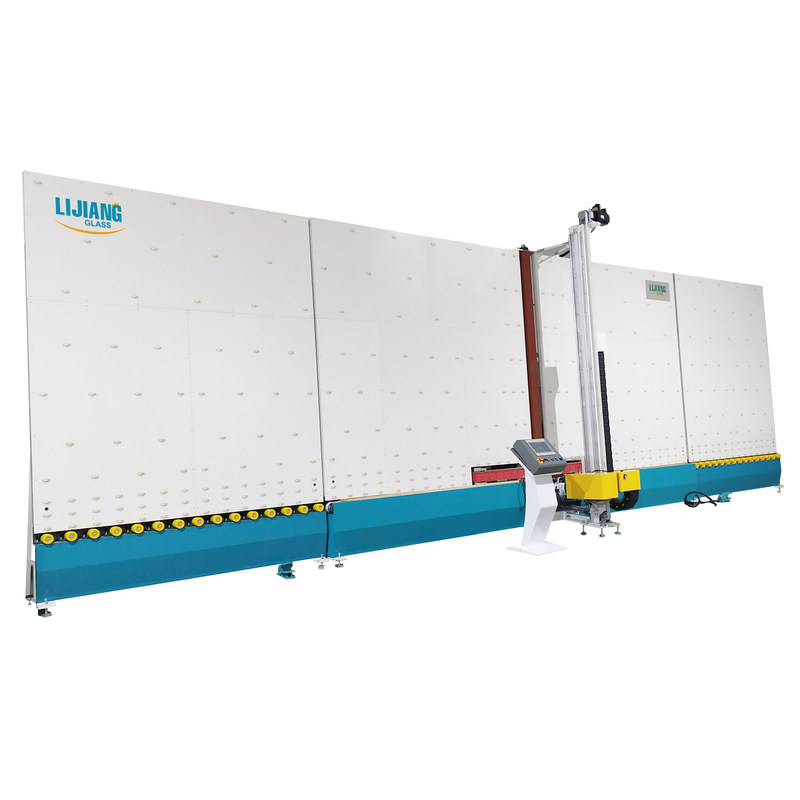

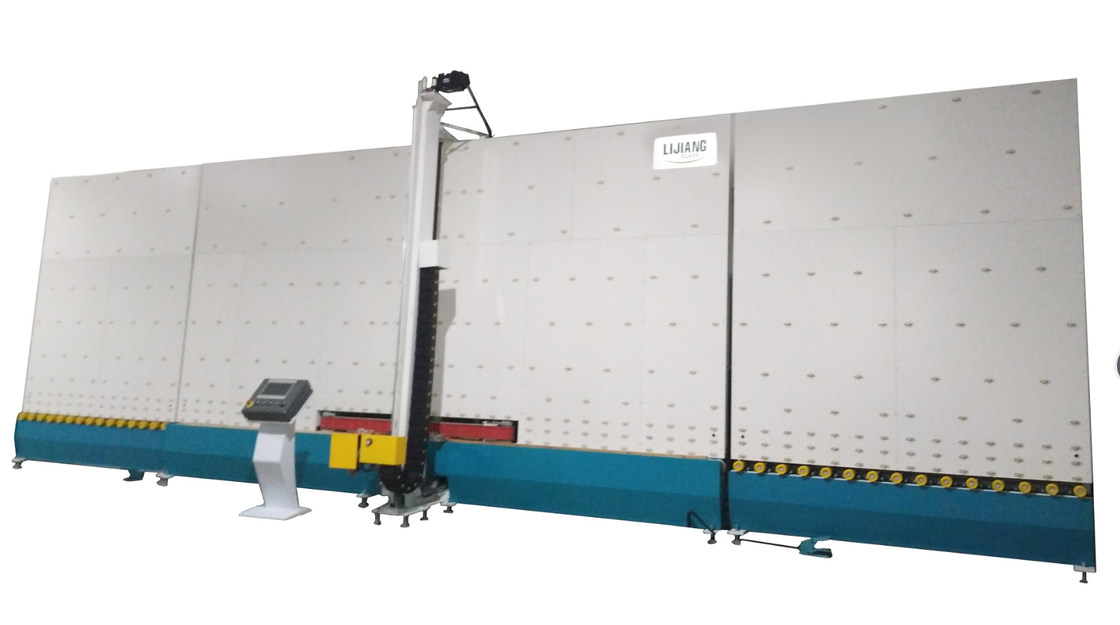

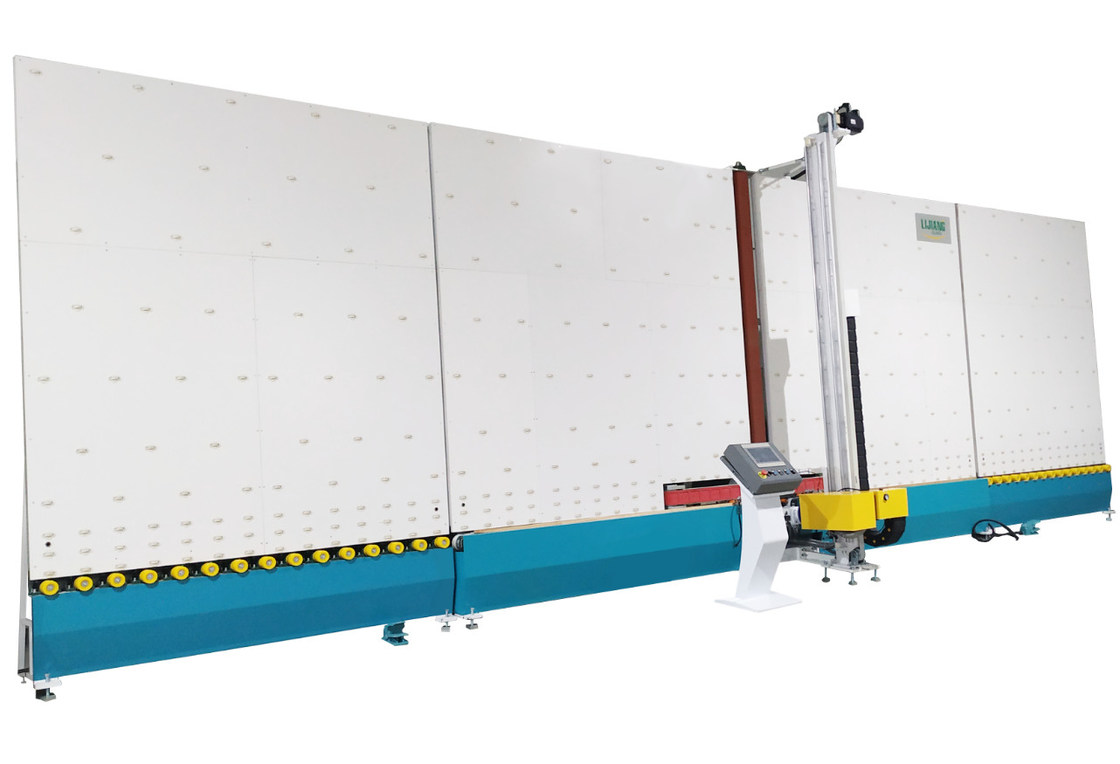

Smart Vertical Edge Deleting Machine LJCM2545
LJDM2545 Smart Vertical Edge Remover is used to remove Low-E glass edge film.
The glass edge remover adopts the imported servo control system,
High-quality whetstones are durable and can produce clean and beautiful whetstones
crack. The distance can be electrically set in the range of 10 to 150 mm.
The main feature of the grinding glass machine
• Two-way glass access
• Remove double and triple silver Low-E glass
• Automatically measure glass size
• Automatically distinguish low-e surfaces
• Edge removal is adjustable
• The head can rotate 360 °
• Safe and fully automatic device
• PLC control system, touch screen interface
• 6 servo control systems
An intelligent control system, can recognize batch processing
Technical data of glass grinding and polishing equipment
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters of glass belt grinding machine
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
FAQ of glass cutting and polishing machines
Q: What is the system of after-sales service?
A: Kation has its own special system for service, we make a "tree of knowledge" for guidance
When customers meet to find common problems and answers.
Q: What is the details of after-sales service?
A: Step 1: Information before installation
Step 2: Confirm before installation
Step3: Site installation
Step:: Site debugging
Step:: Site training
Step:: Customer icon
Step 7: Online service
Step:: Technical service
For more details please visit www.lijiang-glass.com
Q: What is the payment term?
A: T / T, L / C and other payment terms can be negotiated.
Q: About this machine, what is the guarantee?
A: 1) Our guarantee for 12 months.
2) 2 hours of technical support by email or call
)) English manual and video tutorial
)) We will provide consumable parts at agency price
2) 2 hours on line service every day, free technical support.
Q: What is your warranty?
A: Generally, our guarantee is one year. Within the warranty period, we can offer technical support,
2 Give you feedback within 24 hours and help your problem controller repair independently, it's not like that
From our factory
Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we support
Arrange a hotel and pick you up at the airport.
Q: What is the delivery period?
A: Most of the time we have stock in the factory. If there is no stock, usually, the delivery time is 1-20-20
After work day deposit receipt. We may consider making special arrangements if you have an urgent need
For you
