Large Image :  Low E Arc Glass Edge Polishing Machine Banding Finish Machinery

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJCM2545
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 40000
Packaging Details: container
Delivery Time: 30-40

Low E Arc Glass Edge Polishing Machine Banding Finish Machinery

Description
Name: Smart Vertical Edge Deleting Machine Max. Glass Processing Size: 2500*4500mm
Min. Glass Processing Size: 400*280mm Glass Thickness: 3-15mm
Diameter Of Grinding Wheel: 200mm Abrasive Wheel Width: 10/12/15mm
High Light:

Low E Glass Edge Polishing Machine

,

thick 15mm Glass Edge Polishing Machine

,

Low E glass grinding and polishing equipment

Jinan Lijiang Glass machine arc glass edge banding and polishing finish machinery

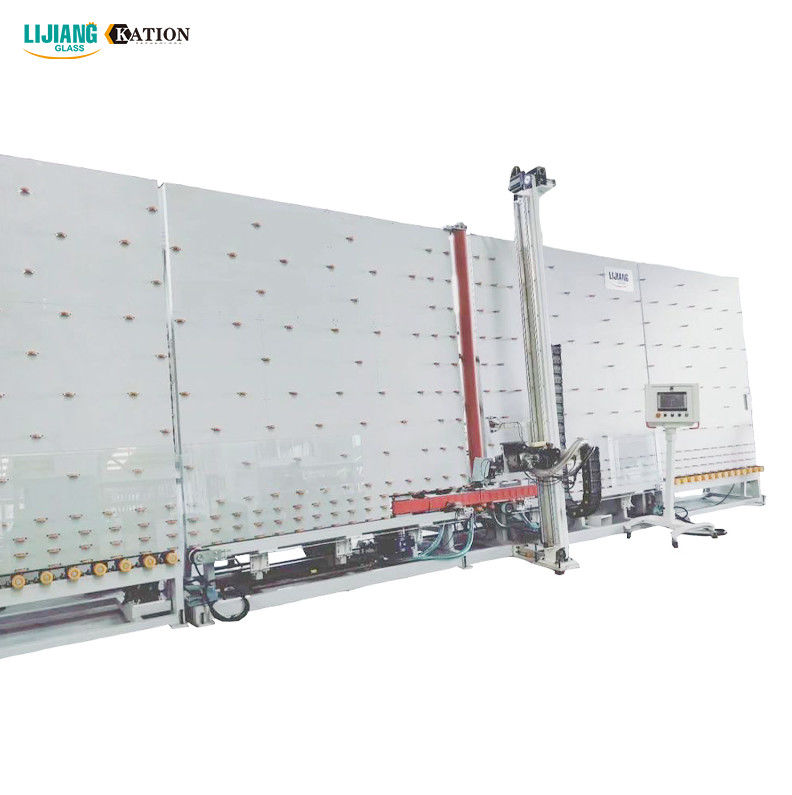

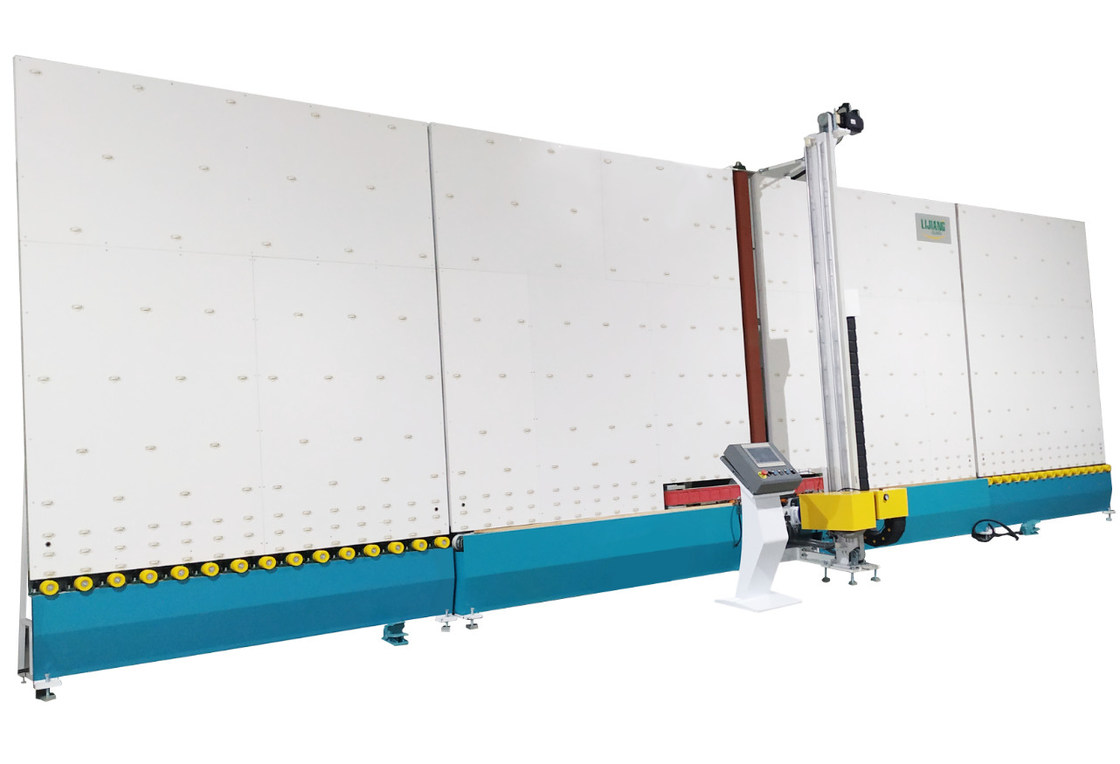

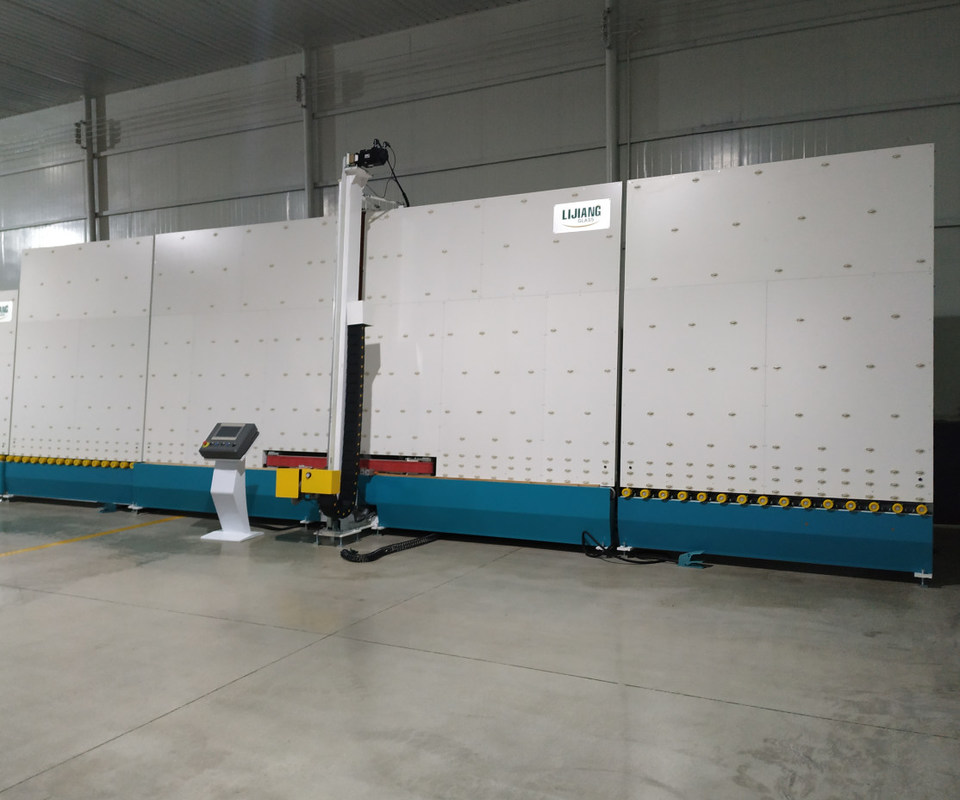

LJDM2545 smart vertical edge deleting machine is used to delete the edge film of the Low-e glass.

The glass edge deleting machine adopts imported servo control system, positioning accurately with

smooth operation. High quality grinding wheels are durable, can produce neat and beautiful grinding

crack. The distance can be set among 10 ~ 150 mm arbitrarily.



Main feature of  grinding glass machine

• Two-way glass access

• Delete double and triple silver low-e glass

• Automatically measure glass size

• Automatically distinguish low-e surface

• Edge deletion is adjustable

• The head can be rotated 360°

• Safe and full automatic device

• PLC control system, touch screen interface

• Six servos control system

Intelligent control system, can recognize batch processing



Technical data  of  glass grinding and polishing equipment



Max. glass processing size 2500*4500mm
Min. glass processing size 400*280mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Glass thickness 3 - 15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 15KW
Dimension Dimensions :9700×2500×3400mm
Total weight 3700KG



Electrical parameters of  glass belt grinding machine

NAME ORIGIN BRAND
Servo motor Taiwan TAIDA
PLC Taiwan TAIDA
Pneumatic component Taiwan AAIRTAC
Low pressure electricity Germany SIEMENS
Circuit breaker Germany SIEMENS
Sensor switch Korea AUTONICS
Approach switch Korea AUTONICS
Limit switch Taiwan TEND
Connector Germany SIEMENS
Frequency converter France SCHNEIDER
Main Button France SCHNEIDER
Intermediate relay Japan OMRON



Low E Arc Glass Edge Polishing Machine Banding Finish Machinery 0

FAQ of  glass cutting and polishing machines

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding

customer to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation

Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service

More details please search www.lijiang-glass.com

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q: About this Machine,What’s the guarantee ?

A:1)Our guarantee for 12 months.

2)24 hour’s technical support by email or calling

3)English manual and video tutorial

4)We will provide the consumable parts at an agency price

5)24 hours on line service each day, free technical support.

Q:How about your warranty?

A:Generally, our warranty is one year. Within the warranty period, we can offer technique support,

Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not

from our factory

Q:Can we visit your factory before order?

A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to

arrange hotel and pick up you from airport.

Q: What's the delivery term?

A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special arrangement

for you.
