Product Details:
|
| Name: | Vertical Insulating Glass Production Line | Insulating Glass Thickness: | 50mm / 60mm |
|---|---|---|---|
| Glass Washing Speed: | 2-10m/min | Glass Conveyor Speed: | 45m/min |
| Washing Brushes: | 3 Pairs | Water Supply: | Water Consumption:0.5t/h Conductivity：40μs/cm |
| High Light: | 60mm Double Glazing Production Line,50mm Double Glazing Production Line,60mm Insulated Glass Manufacturing Equipment |
||

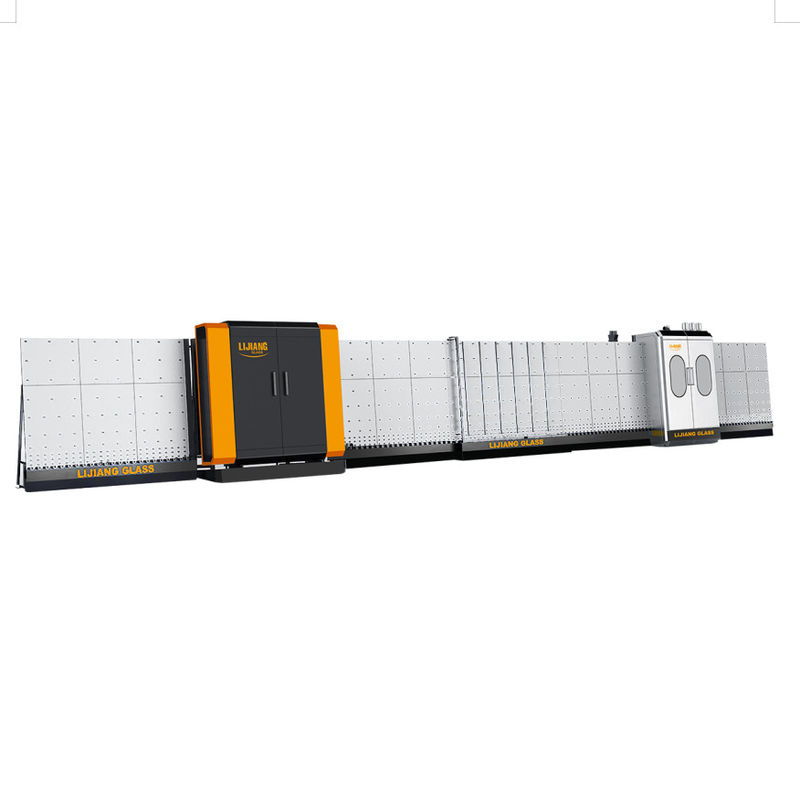

Vertical Insulating Glass Production Line LJBZ2535
Main Features of washing machine production line

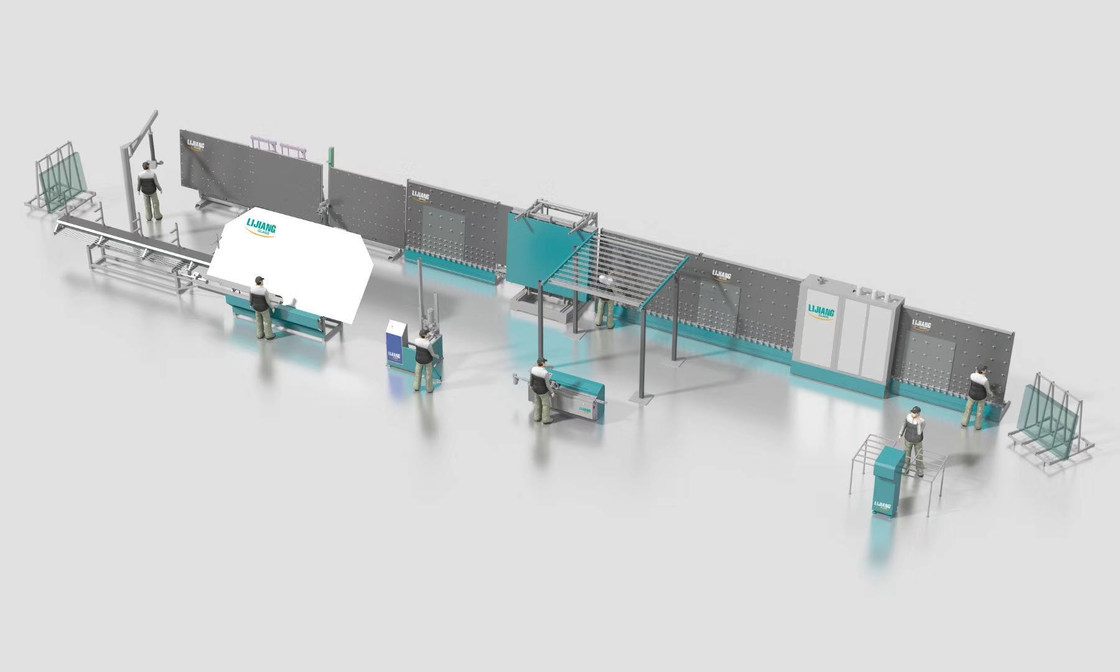

• The line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
• PLC control system, touch screen interface
• Using Siemens servo motors
• Applicable to produce double glass, triple glass
Optional functions of insulating glass equipment
• Step glass with optional edges
• Shaped glass
• Filling argon gas automatically
• Air-floating technology to transfer glass
To prevent the glass from being contaminated by wheels and leaving traces to improve
the IG production’s high quality.
• Pressing and filling 2 pieces of IG units, totally 8 sections
Main Features of glass manufacturing equipment
• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon
gas over 90%
• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU
in once time. Can reach 27s for each 1m*1m double glass, improving work efficiency highly
• High-speed IG processing line, we have obtained patent rights in China in 2019
• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames
for two IGU by one workman
• Automatically measuring glass size and labeling (labeling can be allowed before pressing and
after pressing) with ERP system (Optional)
• From transfer part to pressing part, each part is divided
• Suitable for mass production in a factory. Ultra-fast speed
Technical data of glass processing machinery
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters of glass manufacturing machinery and equipment
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor for step glass | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
FAQ of glass manufacturing equipment
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for
guiding customer
to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
