servo motor Sealant Dispensing Machine With Pump A Pump B Glues

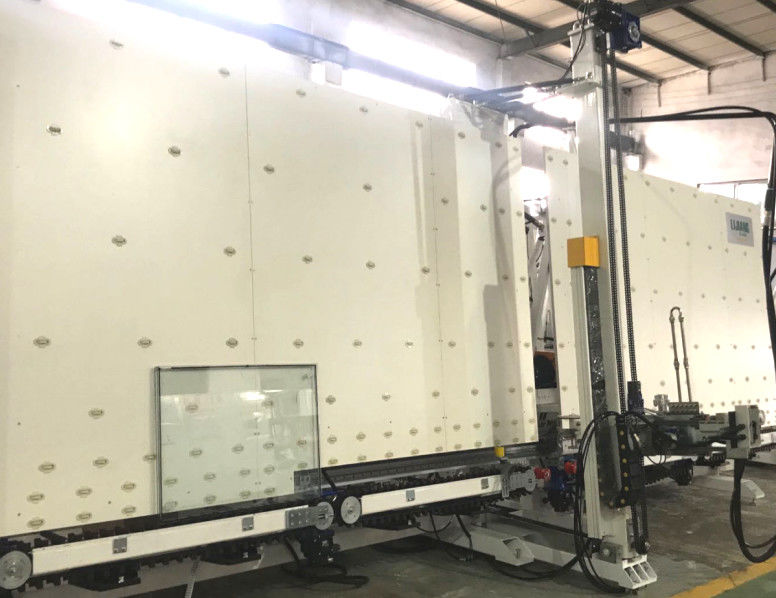

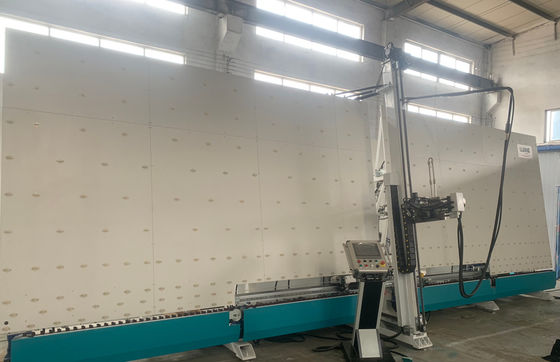

Automatic Insulting Glass Sealant Dispensing Machine with Pump A And Pump B Glues

Main  features of Automatic Insulating Glass Sealing Robot

1. Insulting Glass Sealing Line is equipped with Yaskawa servo motor, servo control system and touch screen, which is more convenient and intuitive for operation, real-time display of technical parameters, simple and intuitive, full automatic and high-efficiency

2. Automatic memory function,no need to input parameters repeatedly

3. Insulting Glass Sealing Line can be used by connecting or stand-alone.

4. Automatically repair glass corners with scraper and roller.The glass corners are full without bubbles, and the glue output is controlled accurately.

5. Synchronous belt drive to ensure smooth glass transportation and accurate positioning

6.Machine has four sections,can store glass

7. It can seal triple , double IG units, shaped and 4-sided step glass

8. The transmission is divided into four sections. The glass can be pre-stored, which can effectively reduce the waiting time of the glass and effectively improve the efficiency

9. Automatic identification of glass size, automatic detection of glue depth and automatic adjustment of glue application speed

10. The conveyor wheel with back plate adopts inlay design, making the glass run more smoothly;

11. Support two different sealants gluing, with a easy operation.

12. The glue mixing system adopts the anti blocking structure, which is easy to clean.

13. The glass support module on the conveyor belt adopts the replaceable V-shaped block, which is simple and convenient to replace after wear and low cost;

Details of insulating glass  extruder machine

• Japan Yaskawa servo system control,full automatic and high-efficiency sealing machine

• Insulating glass sealing robot has 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• One set of booster pump controls two groups of sealants

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

• Shape glass with optional edges, step glass, triple glass (Optional)

• One set of booster pump controls two groups of sealants (Optional)
• With code scanning function (Optional)

Two sealing system of insulating glass sealing line : double sealing pumps with two pump A and two pump B, two sets of glue mixers, one set of glue nozzle. When you change the different sealants, the first sealant. should be flushed clean with the second sealant.

Technical parameter of Automatic Insulting Glass Sealing Robot

Related production of LIJIANG GLASS

Desiccant Filling Machine LJGZ 2020

Main feature

• Adopt Siemens PLC control system

• Touch screen interface, easy operation

• The height can be adjusted according to the size of spacer frame

• Automatically loading and replenish desiccant

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Arc frame (optional)

• Fill large particle molecular sieve (Optional)

Technical data
