Product Details:
|
| Name: | DGU Production Machine | Flat Glass Thickness: | 3-18mm |
|---|---|---|---|
| Glass Washing Speed: | 6-15m/min | Glass Conveyor Speed: | 55m/min |
| Double Glass: | Available | Triple Glass: | Available |
| Step Glass: | Four Step Glass | Shaped Glass: | Available |
| Washing Brushes: | 3 Pairs | Brushes Diameter: | 0.1mm |
| High Light: | Vertical Insulating Glass Production Line,2000*2500mm Insulating Glass Production Line,2000*2500mm double glass machine |
||

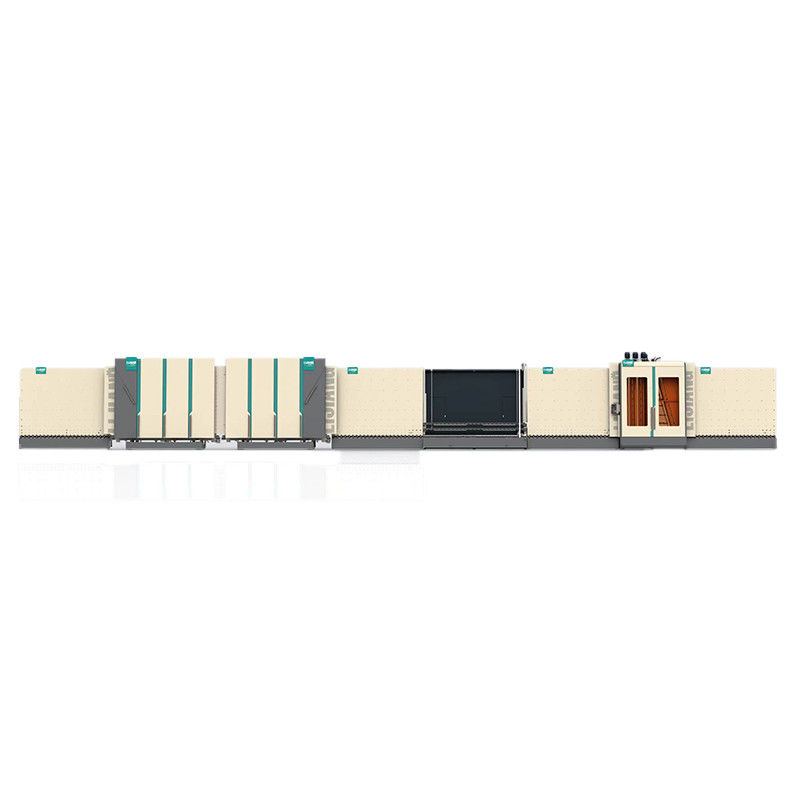

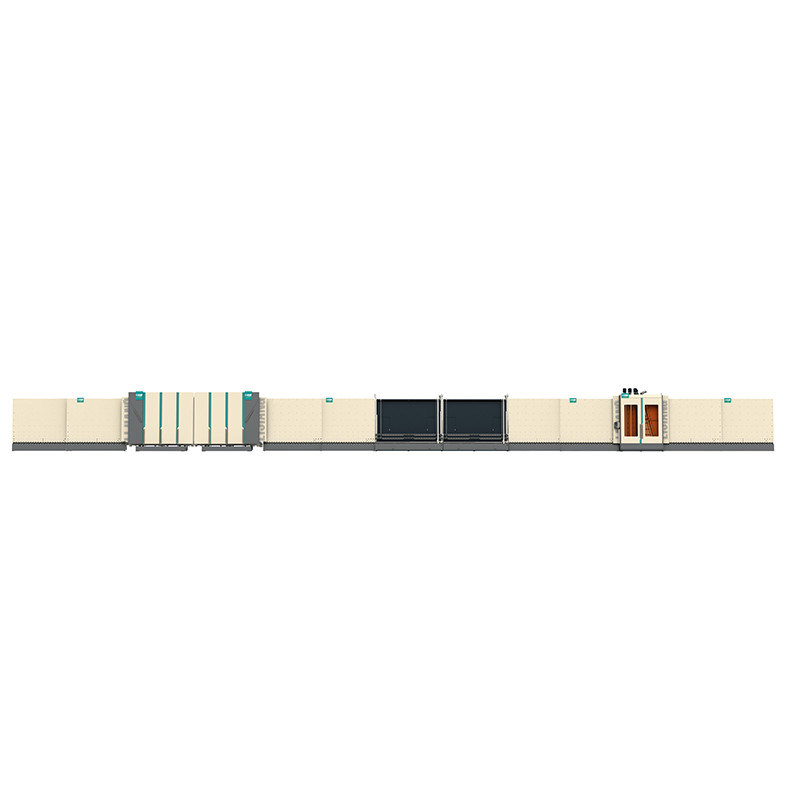

Automatic Vertical Laminated Insulating Glass
Double Glasing Production Line
Similar as Lisec but Cheaper Hot Sale on May Expo
| Components | Brand | Remark |
| Servo motor | Germany Simens | For stepped glass |
| Servo driver | Germany Simens | For stepped glass |
| Servo motor | Germany Simens | For transfer |
| Servo motor | Germany Simens | For press |
| PLC | Germany Simens | |
| Low voltage component | Germany Simens | |
| Frequency converter | Germany Simens | |
| Switching power supply | Taiwan MW | |
| Optoelectronic switch | Korea Autonics | |
| Pneumatic component | Taiwan Airtac | |
| Pneumatic component | Taiwan Airtac | |
| Touch screen | Taiwan Wenview | |
| Travel switch | Taiwan (TEND) | |
| Relay | Japan Omron | |
| Button and indicator light | French Schneider |
Technical data
|
2000*2500 Max.glass size |
Normal glass |
2000*2500mm (2000*3000mm 二次压合) |
| Glass with argon gas | 2000*2500mm | |
| 2500*3500 Max glass size | Normal glass | 2500*3500mm (2000*4000mm二次压合) |
| Glass with argon gas | 2500*3200mm | |
| Min.glass size | 280*450mm | |
| Glass thickness | 3-15mm | |
| Insulating glass thickness | 50mm(special made for 60mm need special notice) | |
| Glass washing speed | Summer 8-10m/min winter 6-7m/min | |
| Glass conveyor speed: | 45m/min | |
| Washing brushes | 3 pairs | |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm6-7 | |
| Air supply | Flow: 0.8m/min | |
| Air pressure | ≥0.8MPa | |
| Total power | 3P 380V 50HZ 34KW | |
| Dimension | 23500*3500*3700mm | |
Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution .
Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,
