Product Details:
|
| Maximum Glass Width: | 2500mm (effective Maximum: 2650mm) | Glass Thickness: | 3mm-25mm (digital Display) |
|---|---|---|---|
| Main Drive, Brush Speed Regulation Method: | Frequency Control | Power Source: | 380V 50Hz |
| Table Height: | 900±25mm | Total Power: | 42KW(water-bearing Wind Heating: 15KW) |
| High Light: | High Speed Vertical Glass Washing Machine,Air Drying Vertical Glass Washing Machine,Frequency Control glass dryer machine |
||
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
1.Aluminum alloy assembled structure, no scrap concept, permanent use,high efficiency,
energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The shaft of rubber roller is made of stainless steel ；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and
maintain；

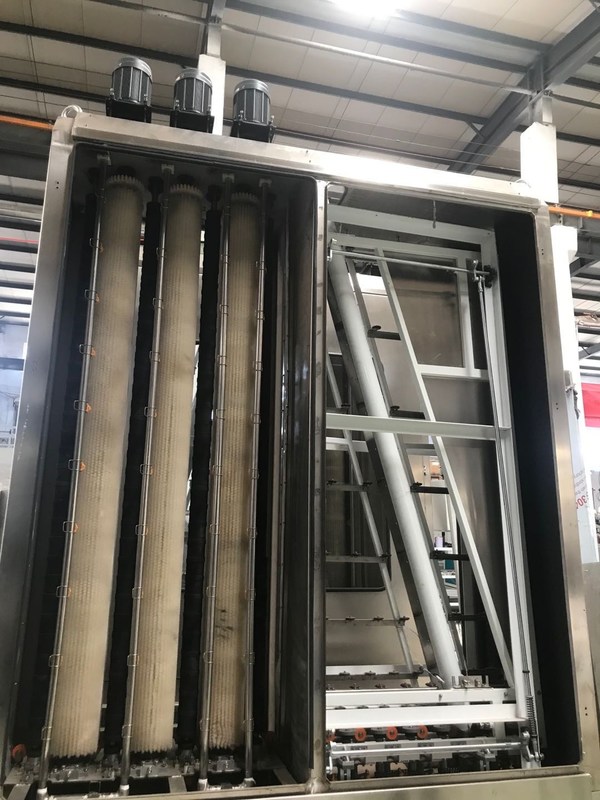

6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary
coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind,
good air drying effect, with heating system(with temperature control device, optional
opening and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good
air drying effect,The whole fan box is installed in the upper part of glass washing machine,
with the air filter screen on the side for easy inspection and cleaning；
9. Main drive for gear transmission, frequency control, digital display , the rotation of the
brush roller in the washing section is driven by independent belts of the upper and lower
motors respectively, the frequency conversion adjustment speed is stable, the service life
is long, realizes the cleaning high request special glass；
10. Mechanical button control, cleaning machine digital display, easy to operate, easy to
operate, easy to maintain；
11. Washing machine water tank outside, convenient water tank cleaning, water change,
check, so that the washing machine cleaning effect is cleaner.
12. Optional with PLC control, touch screen display.It is convenient for workers to operate
and maintain, and can be connected to all manufacturers of edge grinding machines
without gap.(purchase separately if necessary).
