Product Details:
|
| Production Name: | Vertical Edge Deleting Machine | Voltage: | 380V 50Hz 3P |
|---|---|---|---|
| Dimension(l*w*h): | 9700mm*2500mm*3400mm | Weight: | 2600kg |
| Power: | 15kw | Warranty: | 1 Year |
| Glass Thickness: | 3 - 15mm | Edge Width: | 10 -150mm |
| Edge Deleting Speed: | 2-29m/min | Glass Conveying Speed: | 0-30m/min |
| High Light: | 29m/Min Glass Edge Grinding Machine,2m/Min Glass Edge Grinding Machine,29m/Min glass edge polishing machine |
||

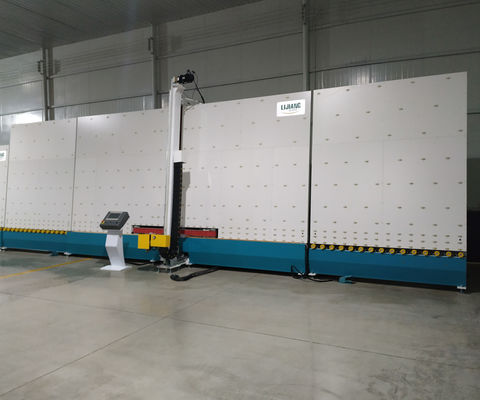

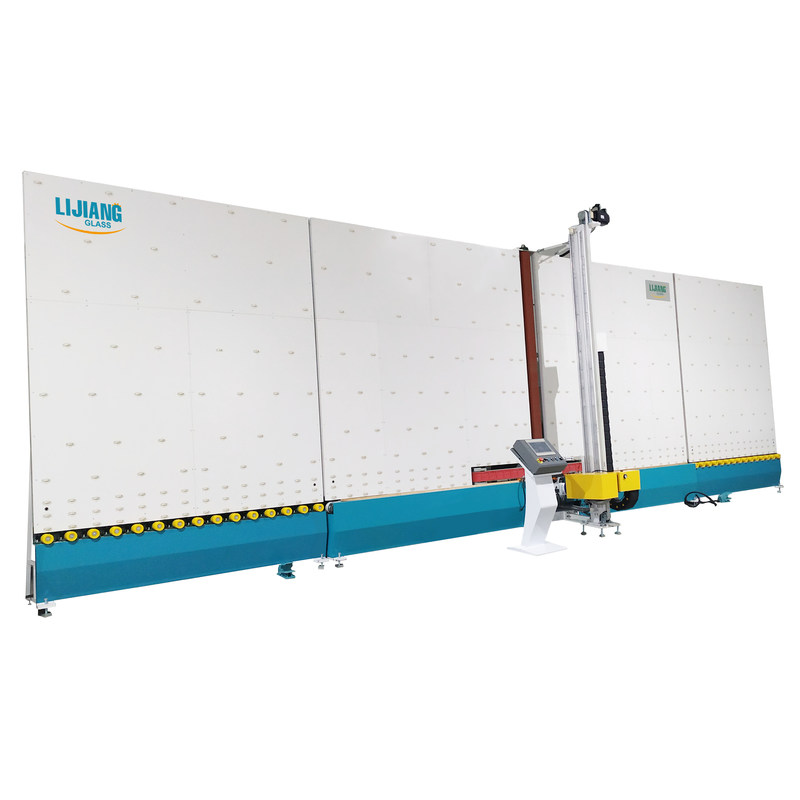

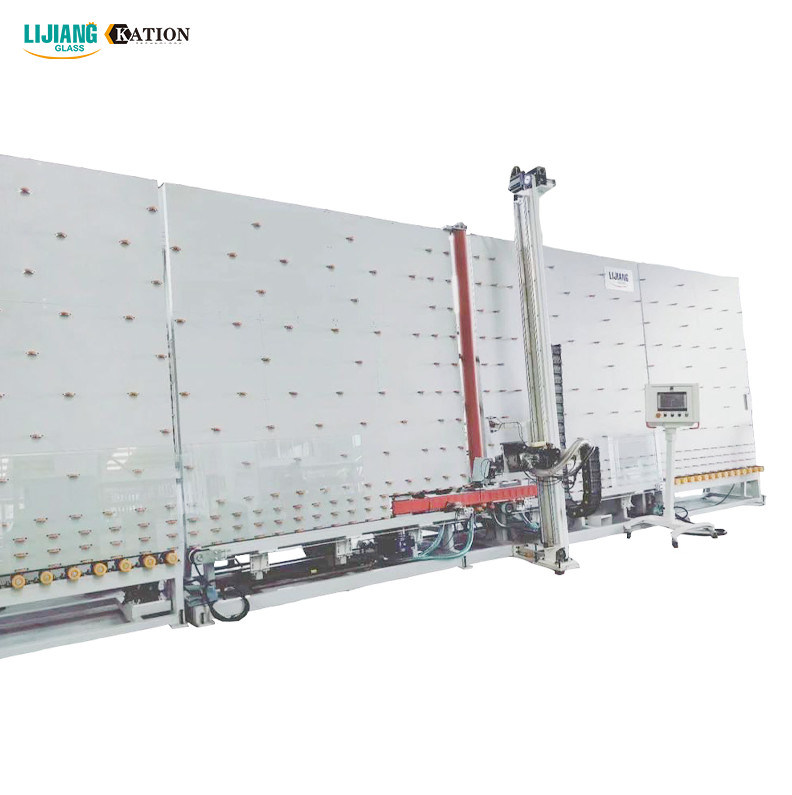

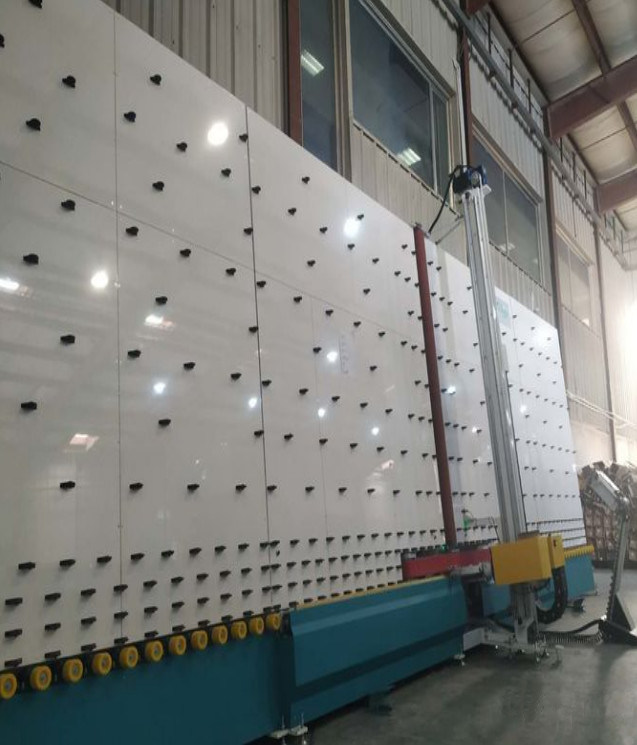

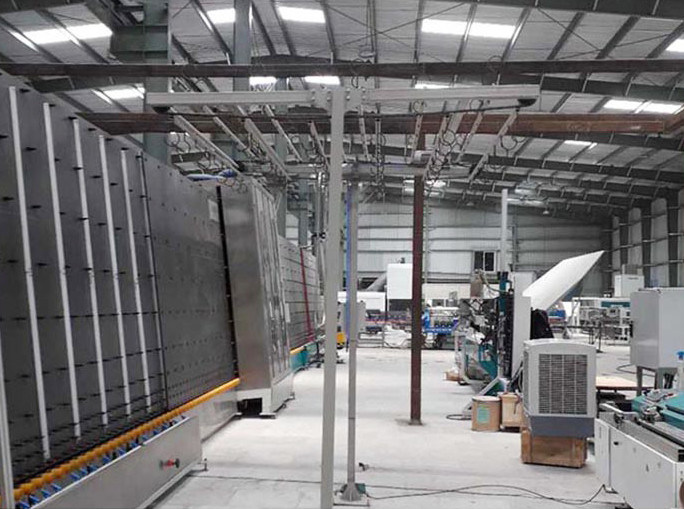

Vertical edge deleting machine Glass Edge Grinding Machine with servo motor
LJDM2545 Smart Vertical Edge Remover is used to remove low-e glass edge film. The glass edge remover adopts the imported servo control method to perform accurate positioning with smooth operation. High quality whetstones are durable and can produce clean and beautiful whetstones. The distance can be electrically set in the range of 10 to 150 mm.
Low-E glass, also known as low-emissivity glass, is a type of film product that consists of a multilayer metal or other compound on the surface of the glass. Compared to common glass and traditional ceramic coated glass, the coating has excellent thermal insulation and excellent light emission.
Low-e glass types:
Single silver Low-E glass
A single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.
Double silver Low-E glass
Double silver Low-E coated glass has two functional layers (silver layer), as well as other metal layers and compound layers, and the total number of coating layers reaches nine. However, the technical process control of double silver Low-E glass is much more difficult. Then single silver.
Main feature of Low-E film deleting machine:
The Vertical Low-E Glass Edge Remover has three sections: a glass loading section, a removing section, and a glass unloading section. The Low-E film remover has four directions. Online Low-E and outline Low-E glass.
The vertical Low-E film edge remover can remove the double or triple Low-E film.
6 sets of servo motors, British TRIO system
2-way and 4-way inlet outlets are available
Automatically measure glass size
Removed double and triple silver Low-E glass
Automatically measure glass size
Automatically distinguish low-e surfaces
PLC control system, touch screen interface
6 servo control systems
An intelligent control system can recognize batch processing
Adjustable edge removal
The head can rotate 360 °
Safe and fully automatic device
Technical parameter:
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
