Place of Origin:
CHINA
Brand Name:
LIJIANG
Certification:
UL
Model Number:
LJWBQJ2500
High Efficient Horizontal Glass Washing Machine
LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE

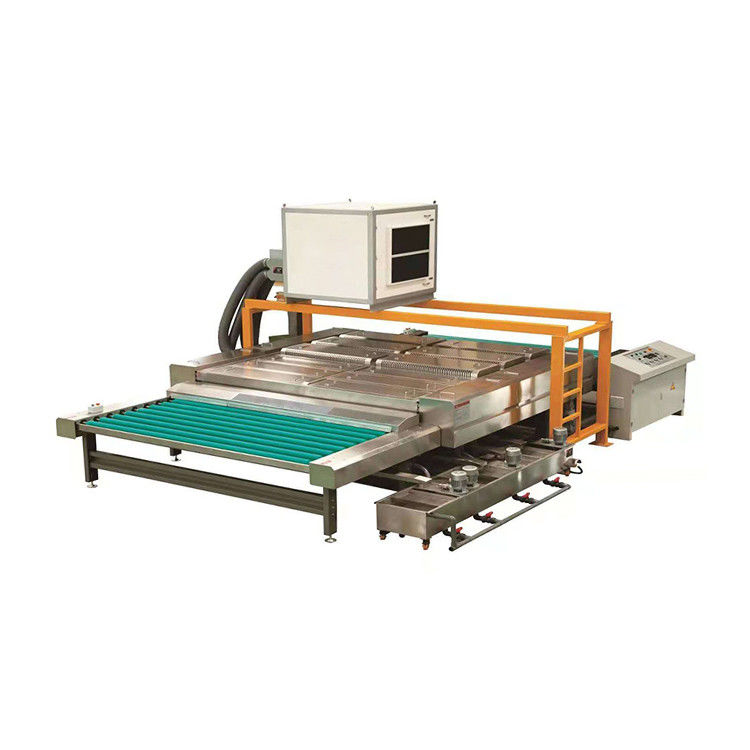

Horizontal Glass Washing Machine with Soft Low e Brushes LJWBQJ2500
Automatic Horizontal Glass Washing and Drying Machine LJWBQJ2500 used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and out goingsegment.
This cleaning machine adopts horizontal structure, which is used for cleaning and drying plate type glass;
-The main part consists of inlet, cleaning, drying, and out of film
-Conveyor adopts chain transmission
-The machine has 1 water tank. primary washing
-There are 4 groups of brushes and 3 groups of absorbent cotton within the machine
-Reliable, good cleaning effect, easy to adjust;
-Conveying glass Frequency Control, easy to control, is more conducive to connect the bilateral edging production lines, glaze line, insulating glass production line, safety glass production lines
-special cleaning requirements or attached features can be customized
- the transmission adopts gear transmission, variable frequency speed regulation, digital display, easy to operate, it is conducive to connecting the production line
- the cleaning department and the wind cadres overall lifting, the highest lift is 400mm, easy to clean the internal rubber roller and maintenance
- by three to two on the hard brush brush cleaning, in front of the available cylinder lifting, cleaning all kinds of Low-e glass on soft brush with third.
- wind cadres use professional design of two pairs of wind knife, wind knife wind dry better effect!
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
| Main drive, brush speed regulation method | frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
LIJIANG GLASS- FOR WORLD GLASS MACHINE USER SERVICE
other product:
1.Spacer Bending Machine
2.Automatic Desiccant Filling Machine
3.Low-E Glass Edge Remover Machine
4.Silicone Sealant Sealing Robot
5.Manual Belt Grinding Machine
