280x450mm Vertical Insulating Glass Production Line For Double Glass Processing

Large Image : 280x450mm Vertical Insulating Glass Production Line For Double Glass Processing

Product Details:

Place of Origin:	china
Brand Name:	Lijiang
Certification:	ce
Model Number:	LJBZ2535G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 90000.00
Packaging Details:	Container/wooden box
Delivery Time:	30days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	15sets/month

Contact Now

280x450mm Vertical Insulating Glass Production Line For Double Glass Processing

Description

Name:	Insulating Glass Machine	Color:	Blue Or Customize
Warranty:	1Year	Min. Glass Size:	280x450mm
Max. Glass Size:	2500*3200	Work Speed:	0~45m/min
Highlight:	Vertical Insulating Glass Production Line , 280x450mm Insulating Glass Production Line , 280x450mm insulated glass manufacturing equipment

Good quality vertical Insulating Glass Production Line for double Glass Processing

Application

As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas filling(optional).The production line can do double glass,triple glass and stepped glass.

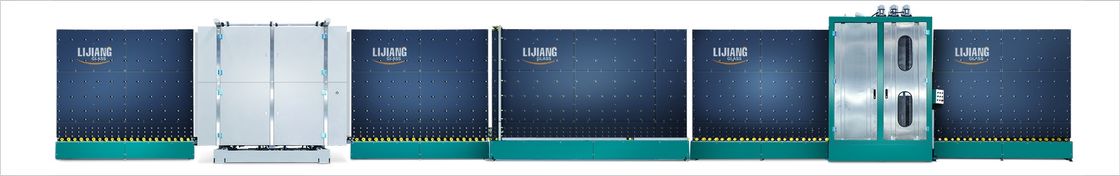

LJBZ2535G Vertical Automatic Insulating glass production line include 7 parts: (standard model :from right to left)

1,Loading section(with low-e checking)

2,washing and drying section(can washing low-e glass)

3,conveyor section

4,checking and assembly section

5, conveyor , measure and sensor section

6,press part with gas filling

7,unloading sectionSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine Advantage:Gas filling on line syetem(option)
About Gas filling online of LJBZ2535G Vertical Automatic Insulating glass production line, we can input the suitable gas proportion value on the touch screen , during the gas filling process, the touch screen can show us the whole gas filing

process visually . (You can see the video that I have sent you before.)We are the first and the only one company who can show the argon percentage on the touch screen on line,its very useful for customer,When argon gas filling,it will show the whole process on the screen. When it reach the data customer set ,It will alarm and stop. So it can save the argon gas. And save the time.

Parameters

			Washing speed
			2~10m/min

			Max.working speed
			45m/min

			Washing glass thickness
			3~15mm

			Max.insulating glass thickness
			60mm

			Conveyor height
			500mm

			Min.glass size
			450mm×280mm

			Max.glass size
			2500mm×3500mm

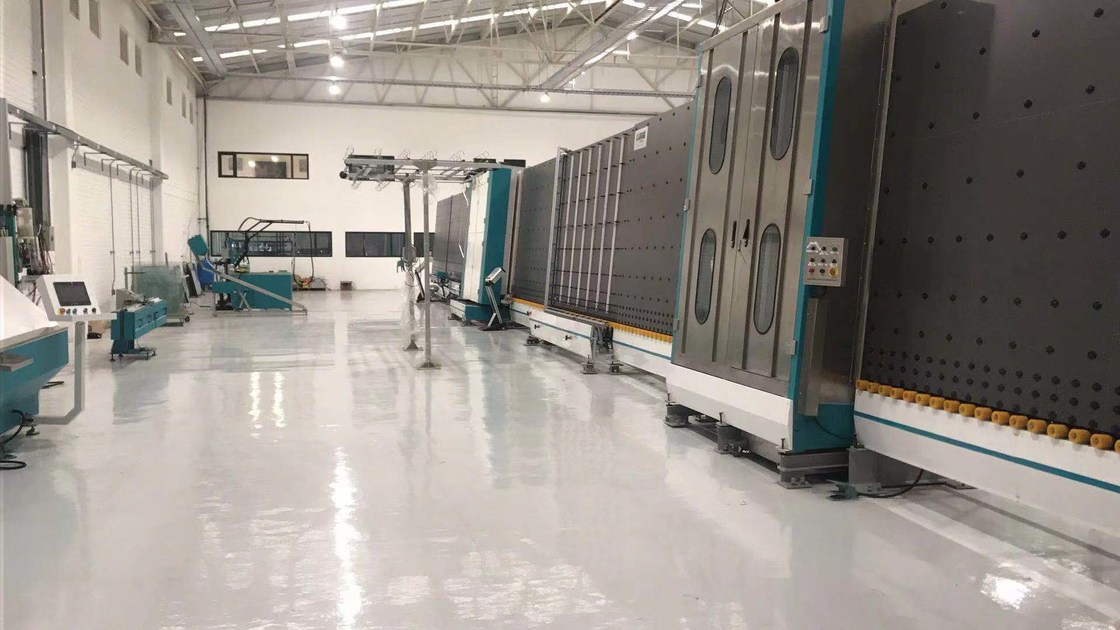

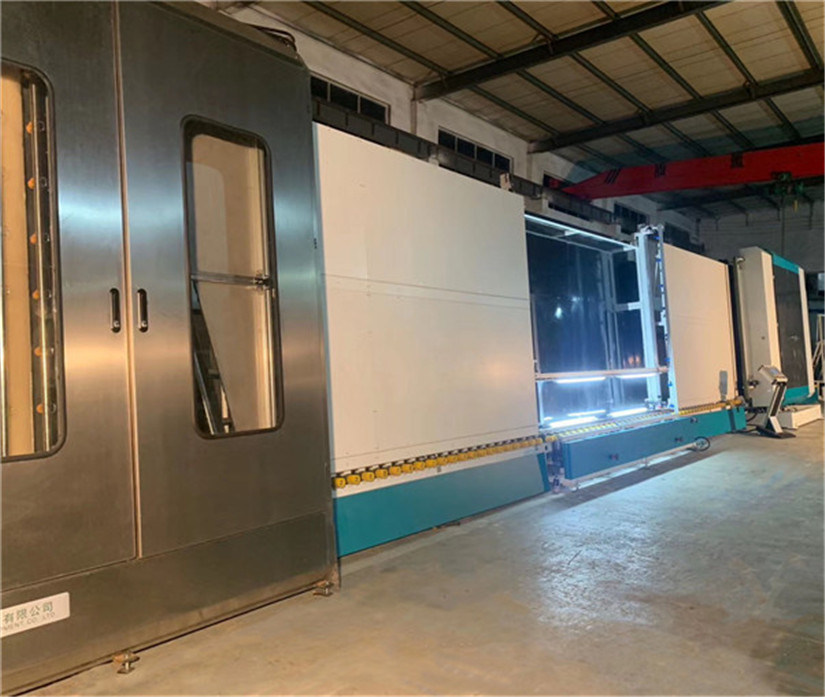

Factary Show
