Product Details:
|
| Name: | Insulating Glass Processing Line | Model: | LJBZ2025 |
|---|---|---|---|
| Voltage: | 380V | Power: | 36 |
| Washing Speed: | 2-10 M/min | Maximum Working Speed: | 45 M/min |
| Maximum Glass Size: | 2000*3000mm | Minimum Glass Size: | 450*280 Mm |
| Flat Glass Thickness: | 3-15 Mm | Washing Brushes: | 6 Pieces |
| Maximum Thickness Of Insulating Glass: | 60 Mm | Dimension: | 19500*3500*3200 Mm |
| High Light: | Double Glazing Glass Processing Equipment,Press Double Glazing Glass Processing Equipment,2000mm insulating glass equipment |
||

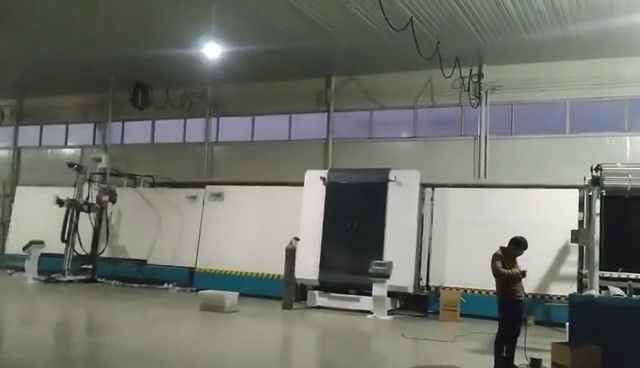

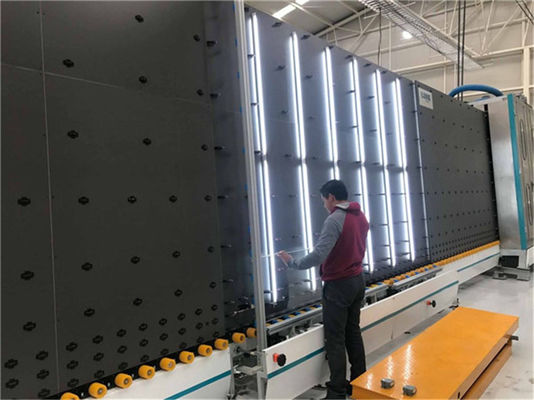

Double / triple / step / low-e glass washing and pressing line
Insulatiing glass machine can complete the following functions : Glass cleaning, Aluminum frame placement ,normal double glass, ordinary three glass, shaped glass and double glass second pressing.
Insulatiing glass machine is a special equipment in the production of aluminum strip insulating glass , which has the advantage of small footprint , high efficiency, reliable performance and convenient maintenance.
Technical data
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor for step glass | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| IG line without filling gas online | ||
