Product Details:
|
| Name: | Edge Deletion Machine | Brand: | Lijiang |
|---|---|---|---|
| Voltage: | Costomization | Max.glass Processing Size: | 2500*4500mm |
| Min.glass Processing Size: | 300*400mm | Glass Thickness: | 3-15mm |
| Edge Deleting Width: | 10-500mm | Edge Deleting Speed: | 2-29m/min |
| Glass Conveying Speed: | 0-30m/min | Total Power: | 15KW |
| Dimension: | 9700*2500*3400 Mm | Weight: | 2600kg |
| High Light: | 29m/min Low E Edge Deletion Machine,Glass Surface Edge Deletion Machine,29m/min glass edge polishing machine |
||

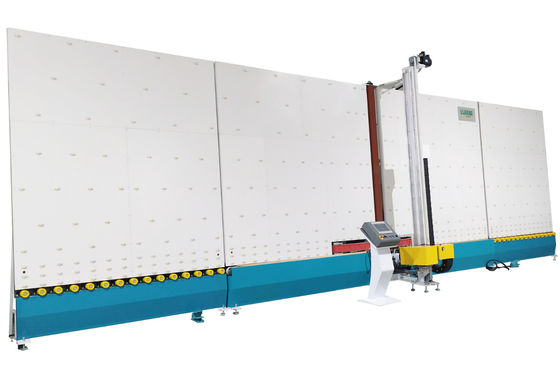

Glass low-e edge deletion machines are used to process and remove coating of glass surface along glass edge
| Production Machine: | Automatic Low-e Film Deletion Machine | Deletion Width: | 10mm - 150mm |
|---|---|---|---|
| Max Glass Size: | 2500mm*4500mm | Min Glass Size: | 350mm*500mm |
| Deletion Speed: | 0 - 15m/min | Wheels Size: | 10mm, 12mm, Or 15mm |
| Application: | Glass Processing | Function: | Automatic CNC Glass Edging Machines |
| High Light: |
15m/min Glass Film Removing Machine,Deletion Glass Film Removing Machine,15m/Min automatic glass grinding machine |
||

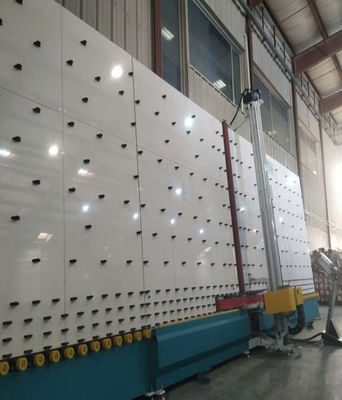

Product overview of automatic Low-e Glass film deletion machine
Automatic Vertical low-e glass film deletion machine for making insulating glass is used to delete the film on the Low-e glass with fast speed,To prevent the film from oxidizing when the insulating glass is synthesized. Low-E Glass Edge Deletion Machine can delete rectangle glass and shape glass, it has 6 servo motors.
The film deletion machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.
Feature of automatic Low-E deletion machine
• PLC control system, touch screen interface
• Six servos control system
• Automatically measure size
• Two-way glass access
• Edge deletion is adjustable
• Automatically distinguish low-e surface
• The head can be rotated 360°
• Safe and full automatic device
• Intelligent control system, can recognize batch processing
• With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass.
Technical parameters
| Max glass size | 2500mm*4500mm |
| Min glass size | 350mm*500mm |
| Wheels width | 10mm, 12mm, 15mm |
| Deletion width | 10mm - 150mm |
| Glass thickness | 3-15mm |
Related Product
. Automatic Spacer Bar Bending Machine LJZW2020
Main feature of automatic bender for spacers
• Adopt Siemens PLC control system, touch screen interface
• Siemens servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
Technical data of auto spacer bending machine
| Max. bending size | 2000mm*2000mm (2500*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Butyl Extruder Machine LJTB 01
Main feature of
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
