Product Details:
|
| Name: | Warm Edge Spacer Of Insulating Glass | Colour: | Customerized |
|---|---|---|---|
| Dilivery Time: | 10days | Material: | Sealant |
| Sample: | Can Be Support | Advantage: | New Technolgy Of Warm Edge |
| High Light: | 0.35mm Insulating Glass Spacers,L5M Insulating Glass Spacers,0.35mm double glazing spacers |
||

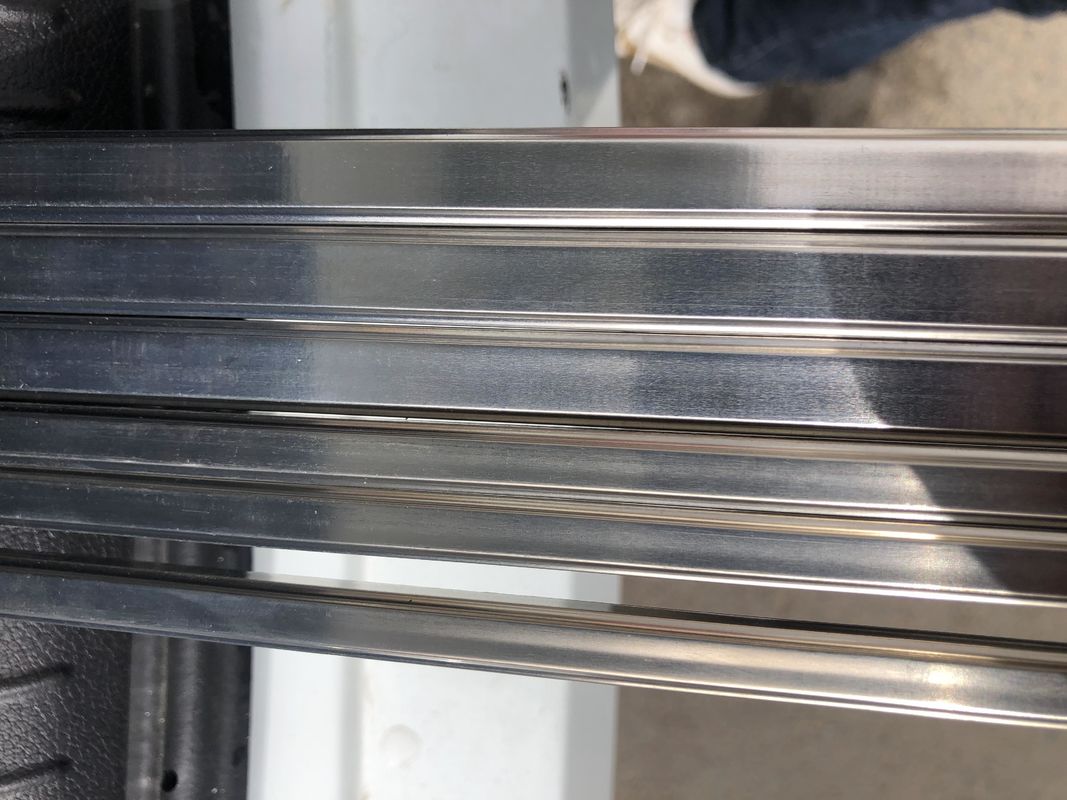

High quality Insulating Glass warm edge spacers for insulating glass processing and professional spacer bending machine
Warm Adge Spacer with Butyl Sealant for Insulating Glass Processing
The insulating glass sideband has the functions of sound insulation, heat insulation, energy saving, safety, anti-fog, etc. It is suitable for building curtain walls, door and window glass, trains, ships, airplanes, refrigerators, etc.
Color: You can choose gold, silver, black, etc.
Uses manufacture building doors and windows, trains, buses, hollow glass, hollow doors, shutters, refrigeration equipment, etc.
Usage and precautions: All glass should be dry and clean. The insulating glass should be made through the following steps.
Compared with ordinary partitions, the advantage of warm edges
------Can reduce the heat transfer coefficient of the whole window
------Improve the dew resistance of insulating glass
------effectively reduce the possibility of glass self- explosion crack
Declare:
1. The thickness can be customized according to requirements
2. The packing quantity of each carton is determined by the model, thickness and length
. No rust, corrosion resistance, high brightness.
. The surface is uniform, straight, without deformation and dimensional stability.
. Only one straight connection is used, with good sealing performance and long service life.
The limit deviation of the outer wall thickness is ±0.025mm.
High strength, toughness, and can be continuously bent to any angle of the aluminum frame of the terminal device.

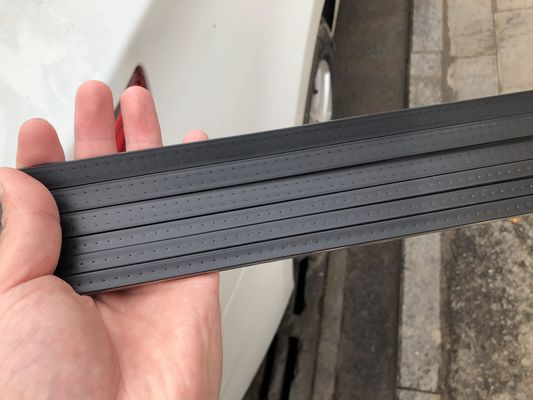

The vents are neatly arranged.
In order to ensure the activity of molecular sieve, to ensure excellent adhesion with various types of adhesives.
Energy-saving and environmental protection, low heat transfer coefficient

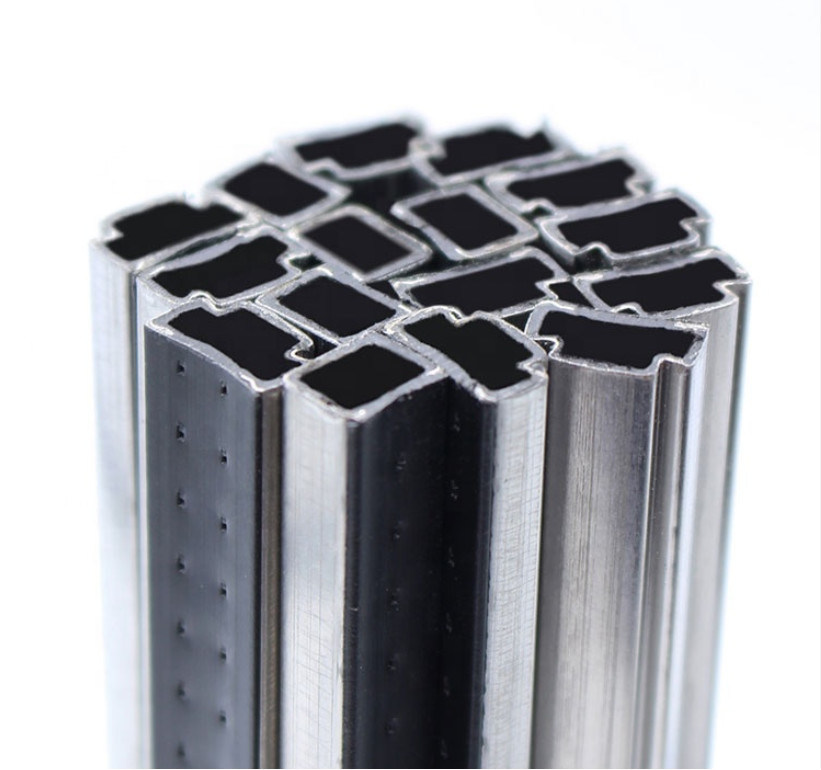

Three types: all stainless steel, stainless steel + glass fiber, all glass fiber
The color and thickness are variable and can be customized.
| Model | Thickness(mm) | Length(m) |
AmountPer box(m) |
Package dimensions(m) |
| 9A | 0.2-0.35 | 5M | 1100 | 5×0.16×0.11 |
| 12A | 0.2-0.35 | 5M | 880 | 5×0.16×0.11 |
| 14A | 0.2-0.35 | 5M | 770 | 5×0.16×0.11 |
| 15A | 0.2-0.35 | 5M | 660 | 5×0.16×0.11 |
| 19A | 0.2-0.35 | 5M | 550 | 5×0.16×0.11 |
| 20A | 0.2-0.35 | 5M | 490 | 5×0.16×0.11 |
| 22A | 0.2-0.35 | 5M | 450 | 5×0.16×0.11 |
| 24A | 0.2-0.35 | 5M | 400 | 5×0.16×0.11 |
| 27A | 0.2-0.35 | 5M | 350 | 5×0.16×0.11 |
Automatic spacer bending machine LJZW2020
Application
The automatic gasket bending machine is special equipment that replaces the hollow glass aluminum frame of the hollow glass manufacturing technology. The equipment can produce one aluminum belt at a time to make a variety of convex polygonal aluminum frames, thereby enhancing the strength of the aluminum frame and making the sealing effect of the insulating glass better.
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
As professional Insulating glass machine manufacture in China, except material such as Molecular sieve and aluminum spacer and sealant. We are good at developing and producing automatic vertical insulating glass processing production lines, vertical Low-E glass edge deleting machines, automatic robots insulating glass production lines,s and so on.
