Product Details:
|
| Name: | Glass Washing Machine Technical Parameters | Glass Thickness: | 3mm-25mm (digital Display) |
|---|---|---|---|
| Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min | Main Drive, Brush Speed Regulation Method: | Frequency Control |
| Power Source: | 380V 50Hz | Weight: | 3940kg |
| High Light: | 12m/Min Insulating Glass Processing Machines,Combining Insulating Glass Processing Machines,12m/Min Vertical Glass Washing Machine |
||

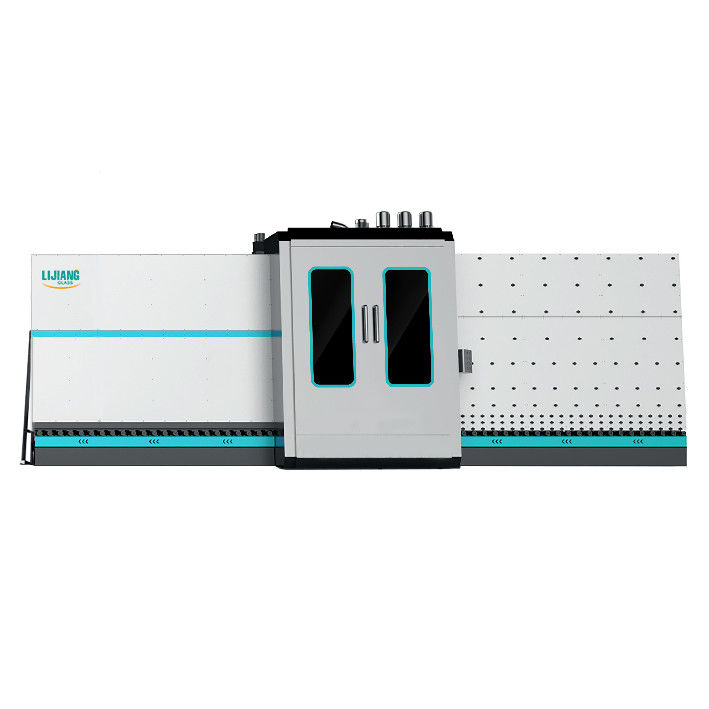

Vertical glass washing machine 2500
high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical
paint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean
and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary
coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind,
good air drying effect, with heating system(with temperature control device, optional opening
and closing)；
8. The fan is equipped with air filter in the air inlet chamber, with large air volume and good
air drying effect,The whole fan box is installed in the upper part of the workshop, with the air
filter screen on the side for easy inspection and cleaning；
| Maximum glass width | 2500mm (effective maximum: 2650mm) |
| Minimum glass specification | 400mm×400mm (limited to single row on left and right sides) |
| Glass thickness | 3mm-25mm (digital display) |
| Speed range | glass thickness within 3-25mm Vmax=1-12m/min |
|
Main drive, brush speed regulation method |
frequency control |
| Table height | 900±25mm |
| Total power | 42KW(water-bearing wind heating: 15KW) |
| Water source | self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer) |
| Power source | 380V 50Hz |
| Dimensions (length × width × height) | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Main drive motor | Zhejiang province |
| Brush motor | Zhejiang province |
| High pressure air blower | Guangdong province |
| The water pump | Shanqing |
| brush | Anhui province |
| Rubber roller | Guangdong province |
| Frequency converter | VEICHI/Rexroth |
| Electric parts | Schneider |
FAQ of washing machine for glass
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback
to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel
and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days
after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
