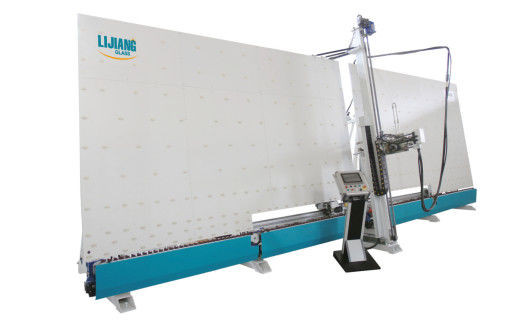

Double Glazing Glass Sealant Extruder Sealing Machine With Two Pumps

Double Glazing Glass Sealant Sealing Machine With Two Sealants Pumps Coating Glue

Introduction of Insulating glass  sealing robot:
Full automatic insulating glass sealing robot machine is used to seal the second glues during making insulating glass units. The sealing robot has the same method with coating glass, however, the sealing robot used servo mortor and PLC to control the whole working, it improves working efficiency. The sealing robot can out put  500 - 800 pieces per day in 8 hours.


Function and feature of Automatic insulating glass sealing robot:
1.Japan Yaskawa serbo control system,full automatic and high-efficiency
Sealing robot is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .Automatic memory function,no need to input parameters repeatedly
3.Automatically repairglasscornerswithscraper and roller,After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly

Specification of sealing robot:



Machine Noise :


Operating notes:

• Max. glass size (mm):2500(H)*4000(L)
• Min. glass size (mm):300(H)*400(L)
• Extruding speed :100mm~500mm/s
• Extruding depth:5mm~18mm
• Sealant supply pressure :<35 Mpa (hydraulic pressure<10Mpa ,sealant pressure <35Mpa)
• Board angle :6°~9°
• Air pressure :0.6~0.8 Mpa
• Max glass weight :300kg
• Glass specification :(4+6+4)mm~(12+25+12)mm
• Extruding sealant must under the condition that the glass edge is smooth and without dislocation of the insulating glass ,there are many sensors on the machine ,it require unrelated persons do not near the machine so as to avoid malfunction and cause damage of the machine or threaten the personal safety .
• It need to open the timing sealant discharge function if it need long time (more than 5 minutes )to extrude sealant to the second glass so as to avoid blocking the mixer
• Check the parameters carefully before extruding sealant ,change the parameter of glass size ,glass thickness etc timely when change the glass batch.
• It need to change the sealant amount if use different sealant as the viscosity maybe different

When start working ,it need to wait the hydraulic pressure is stable ,then start extruding sealant on the first glass so as to avoid sealant output not stable.
