Product Details:
|
| Production Machine: | Automatic Low-E Film Deletion Machine | Max Glass Size: | 2500mm*4500mm |
|---|---|---|---|
| Min Glass Size: | 350mm*500mm | Deletion Speed: | 0 - 15m/min |
| Deletion Width: | 10mm - 150mm | Wheels Size: | 10mm, 12mm, Or 15mm |
| Application: | Grinding Low-e Film Edge | Edge Deleting Speed: | 0-30m/min |
| High Light: | 15m/Min Automatic Glass Grinding Machine,150mm Automatic Glass Grinding Machine,15m/Min glass grinding equipment |
||

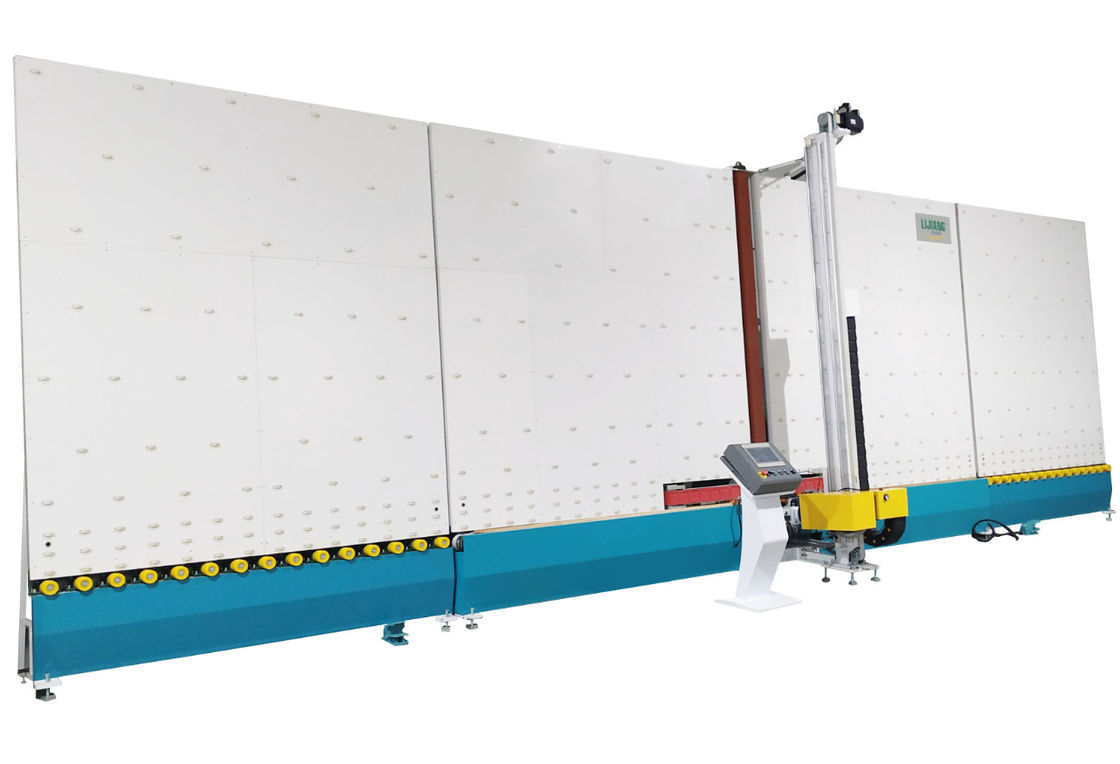

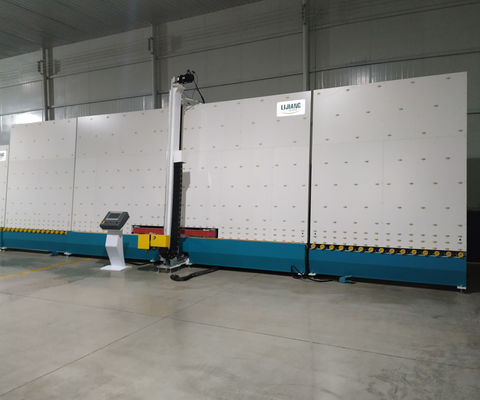

Vertical Low-E glass film deletion machine for making double glazing glass is used to deleting the film on the low-e glass with fast speed. Automatic Low-E deletion machine can delete rectangle glass and shape glass, it has 6 servo motors.
Six sets of servo motors,British TRIO system
Delete double and triple silver low-e glass
Automatically measure glass size
Automatically distinguish low-e surface
PLC control system, touch screen interface
Six servos control system
Intelligent control system, can recognize batch processing
Edge deletion is adjustable
The head can be rotated 360°Safe and full automatic device
Technical parameter
| Max glass size | 2500mm*4500mm |
| Min glass size | 350mm*500mm |
| Wheels width | 10mm, 12mm, 15mm |
| Deletion width | 10mm - 150mm |
| Glass thickness | 3-15mm |
1. What is the function of Low-E film deletion machine?
Low-E film deletion machine is to remove the edge film of Low-e glass
2. Why should deleting low-E glass film?
To prevent the film from oxidizing when the insulating glass is synthesized.
3. What glass needs to be deleted?
When off-line Low-e glass
4. In addition to using the vertical film deletion machine to delete film, what other ways can remove film?
Manual, horizontal edge grinding machine, bilateral edge grinding machine, four-edge edge grinding machine, cutting machine, etc
5. What are the advantages of using our film separator? What are the disadvantages? What are the advantages of using other methods? What are the disadvantages?
With our vertical film rdeletion machine can be connected to use, save labor, film removing effect is good, glass flatness is good, can be in addition to the large plate glass. Disadvantage is to increase the length of the whole line, cover a large area.
Manual film removal effect is poor, slow speed. The others are film removal before toughening, because the heating time of white glass and Low-e glass during toughening is not the same, it will cause glass deformation, advantage does not need too high investment.
6. Is glass before toughening divide film is good still after toughening divide film is good? Why is that?
After toughening, film removal is good, glass deformation is small.
7. What brand of PLC, servo motor driver, frequency converter is used to deletion machine?
At present, delta PLC servo motor and drive, inverter delta and schneider
8. How many sections does the film deletion machine divide into? What are the dimensions of each segment? What are the roles?
The film deletion machine is divided into three sections, the first or the third section is 2.2 meters, mainly for glass input and output and storage of glass, the middle section 5.3 meters, mainly for film deletion.
9. Can the device distinguish the low-e film surface?
The film layer can be detected automatically.
10. Do you need to input the length and width of the glass when using the film remover?
No, it's automatically detected.
