Product Details:
|
| Name: | Glass Washing Machine Technical Parameters | Maximum Glass Width: | 2500mm (effective Maximum: 2650mm) |
|---|---|---|---|
| Minimum Glass Specification: | 400mm×400mm (limited To Single Row On Left And Right Sides) | Glass Thickness: | 3mm-25mm (digital Display) |
| Speed Range: | Glass Thickness Within 3-25mm Vmax=1-12m/min | Main Drive, Brush Speed Regulation Method: | Frequency Control |
| High Light: | W2500mm Vertical Glass Washing Machine,Ultrasonic Vertical Glass Washing Machine,W2500mm Double Glass Washer |
||

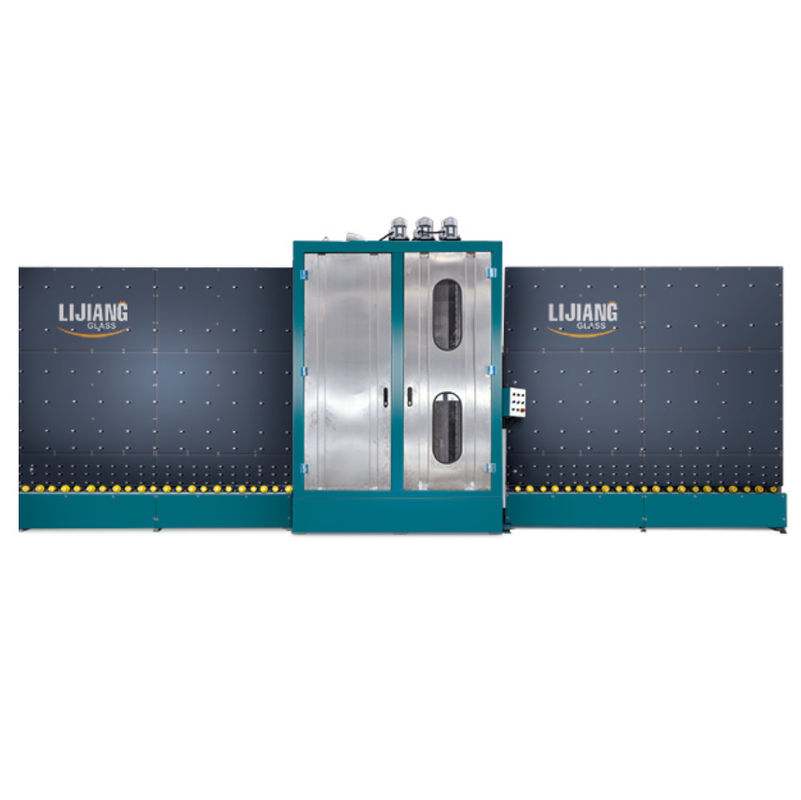

Ultrasonic Flat vertical building glass laminate floor cleaning and washing drying machine double glass washer
1,USES of Washing machine for glass
glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.
2,Structural characteristics of aluminium ingot casting machine
1,Aluminum alloy assembled structure, no scrap concept, permanent use,
high efficiency, energy saving 70% efficiency；
2. The rest of the sheet metal parts are sprayed with advanced mechanical paint or powder；
3. The rubber roller is made of vulcanized rubber with stainless steel shaft；
4. The washing part in contact with water is made of stainless steel；
5. Cleaning department, wind staff overall lift, the maximum lift: 350mm,easy to clean and maintain；
6. Three pairs of brush(Ø150mm)Stainless steel shaft configuration (low-e glass, ordinary coated glass and sunshine coated glass can be washed without damaging the coated surface)；
7. Two pairs of special stainless steel aluminum alloy air knife configuration, strong wind, good air drying effect, with heating system(with temperature control device, optional opening and closing)；
Technical data of Glass Washer and dryer
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Dimensions | approximately 6260*4800*3100 |
| Weight | 3940kg |
| Total power | 3P 31KW |
Electrical parameters of second hand glass washer
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Photoelectric switch | Korea | AUTONICS |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Pneumatic Components | Taiwan | AIRTAC |
FAQ of glass cleaning equipment
Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer to
find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback
to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
