sealant Insulating Glass Warm Edge Spacer Bar For Double Glazed Units

Large Image : sealant Insulating Glass Warm Edge Spacer Bar For Double Glazed Units

Product Details:

Place of Origin:	China
Brand Name:	Kation
Certification:	CE
Model Number:	Kation006

Payment & Shipping Terms:

Minimum Order Quantity:	10meter
Packaging Details:	Container or papaer case
Delivery Time:	10days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10sets/month

Contact Now

sealant Insulating Glass Warm Edge Spacer Bar For Double Glazed Units

Description

Name:	Warm Edge Spacer Of Insulating Glass	Colour:	Customerized
Dilivery Time:	10days	Material:	Sealant
Sample:	Can Be Support	Advantage:	New Technolgy Of Warm Edge
Highlight:	Insulating Glass Warm Edge Spacer Bar , sealant Warm Edge Spacer Bar , spacer bars for double glazed units

High quality Insulating Glass warm edge spacers for double glazing glass

Warm Adge Spacer with Butyl Sealant for Insulating Glass Processing

Insulating glass warm edge with sound insulation, heat insulation, energy saving, safety, anti-fog and other functions applicable to building curtain wall, windows and doors glass, trains, ships, aircraft, refrigerators.

Colour: could choose the Gold, Silver, Black, and so on.Use: Manufacturing building doors and windows, Train, Bus, insulating glass, insulating door, shutter, refrigeration equipment and so on.
Using method and attention: All the glass should be dry and clean. The insulating glass should be made by the following steps.
Benefits & Advantages


1. Putting the spacer onto the corner of one glass, then making the spacer straight, at the same time keeping the spacer around the surface of the glass, at the end, reserved 2.5mm– 3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint, making no space in the circle. 2. Then putting another glass onto the one which has the spacer above, making sure the two pieces of glass are mutual alignment in both vertical and horizonal. 3. Putting them into the hot press machine with the temperature between 110–140S inside and 50~60S the outlet. 4. According to the structure requirement of the insulating glass, two component silicone sealant could be putting outside of the spacer. Then a piece of insulating glass should come out. 5. The butyl spacer must be carried out in accordance with this attention otherwise may cause the seal leakage.
Anti-condensation Performance
When encountering a cold climate, there is a large temperature difference between indoor and outdoor, hot inside and cold outside, and condensation will appear on doors and windows. This is because traditional aluminum spacers have very good thermal conductivity, leading to rapid loss of heat on the metal. Therefore, when the doors and windows are warm and cold, the water vapor in the air is more likely to liquefy into small water droplets, which will become dew after gathering. . The warm edge strip has low thermal conductivity, the heat energy on the metal is not easy to lose, the temperature difference between the two sides of the door and window will not be too large, and the phenomenon of condensation will not appear.

Model	Thickness(mm)	Length(m)	AmountPer box(m)	Package dimensions(m)
9A	0.2-0.35	5M	1100	5×0.16×0.11
12A	0.2-0.35	5M	880	5×0.16×0.11
14A	0.2-0.35	5M	770	5×0.16×0.11
15A	0.2-0.35	5M	660	5×0.16×0.11
19A	0.2-0.35	5M	550	5×0.16×0.11
20A	0.2-0.35	5M	490	5×0.16×0.11
22A	0.2-0.35	5M	450	5×0.16×0.11
24A	0.2-0.35	5M	400	5×0.16×0.11
27A	0.2-0.35	5M	350	5×0.16×0.11

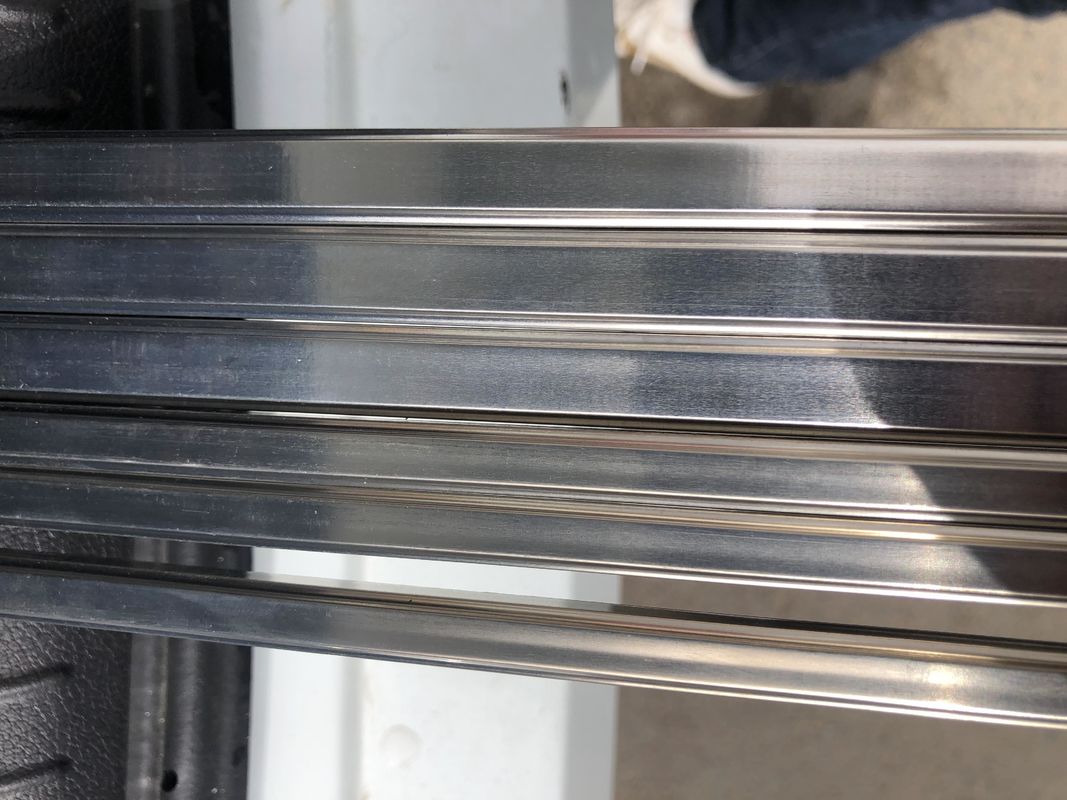

sealant Insulating Glass Warm Edge Spacer Bar For Double Glazed Units 3

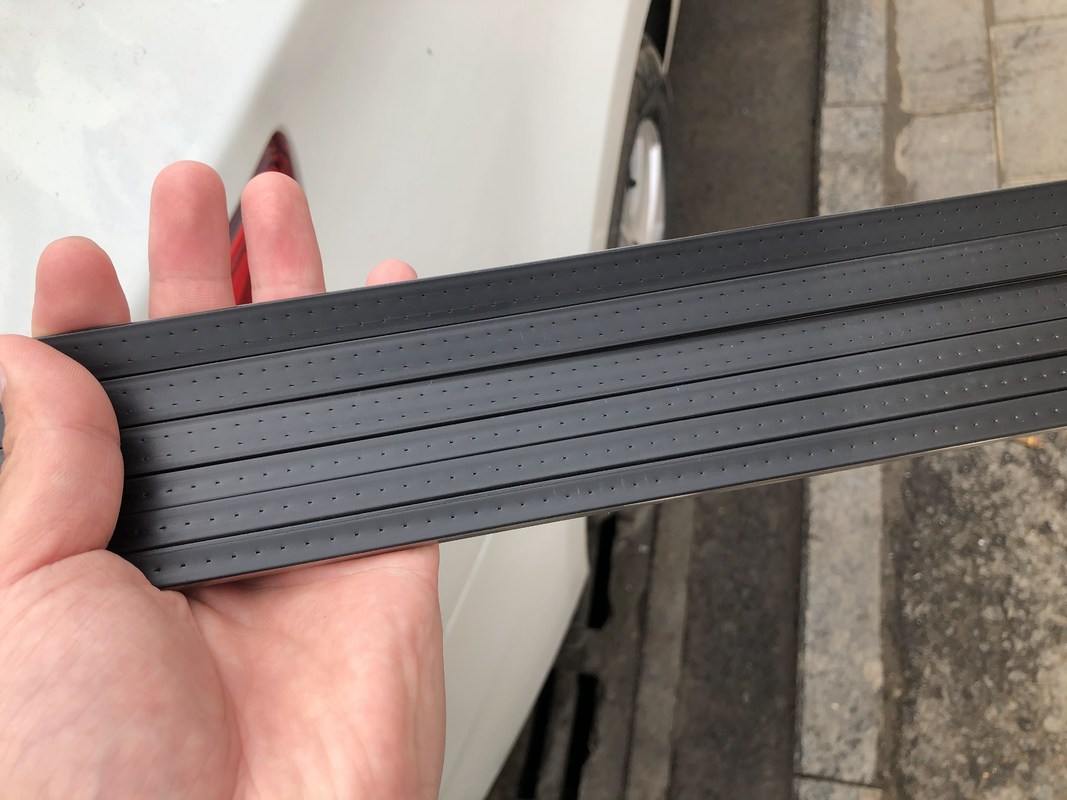

sealant Insulating Glass Warm Edge Spacer Bar For Double Glazed Units 4
