Product Details:
|
| Production Name: | Sealant Dispensing Equipment Insulating Glass Sealing Robot | Max Glass Size: | 2000*2500 |
|---|---|---|---|
| Pressing Twice: | 2000*3000 | Glass Thickness: | 60 Mm |
| Glass Type: | Double/triple/step Glass | Warranty: | 1 Year |
| High Light: | 2000*2500 Sealant Dispensing Equipment,60mm Sealant Dispensing Equipment,2000*2500 Insulating Glass Sealing Robot |
||

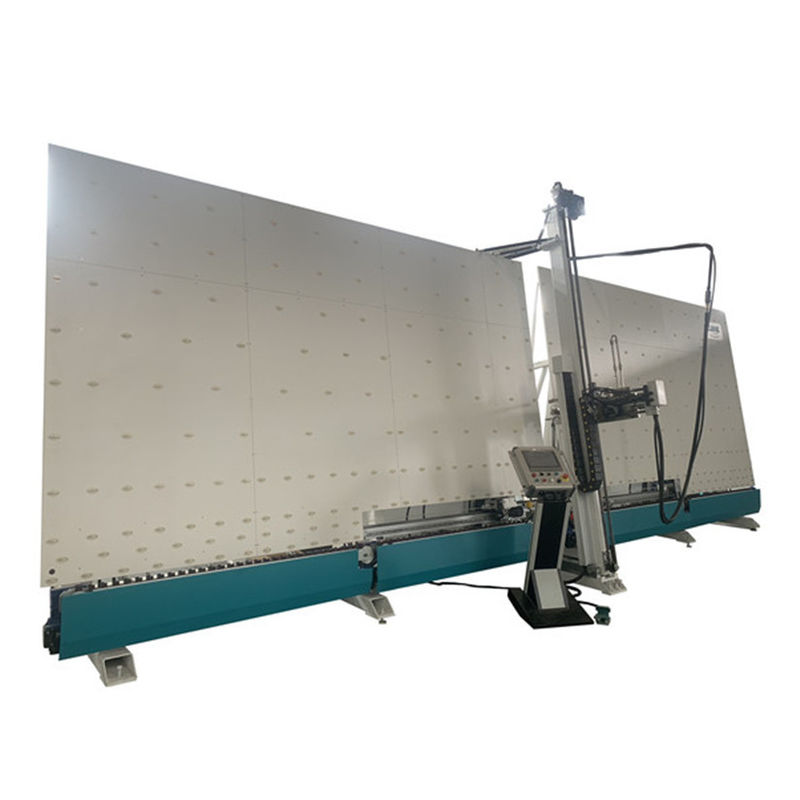

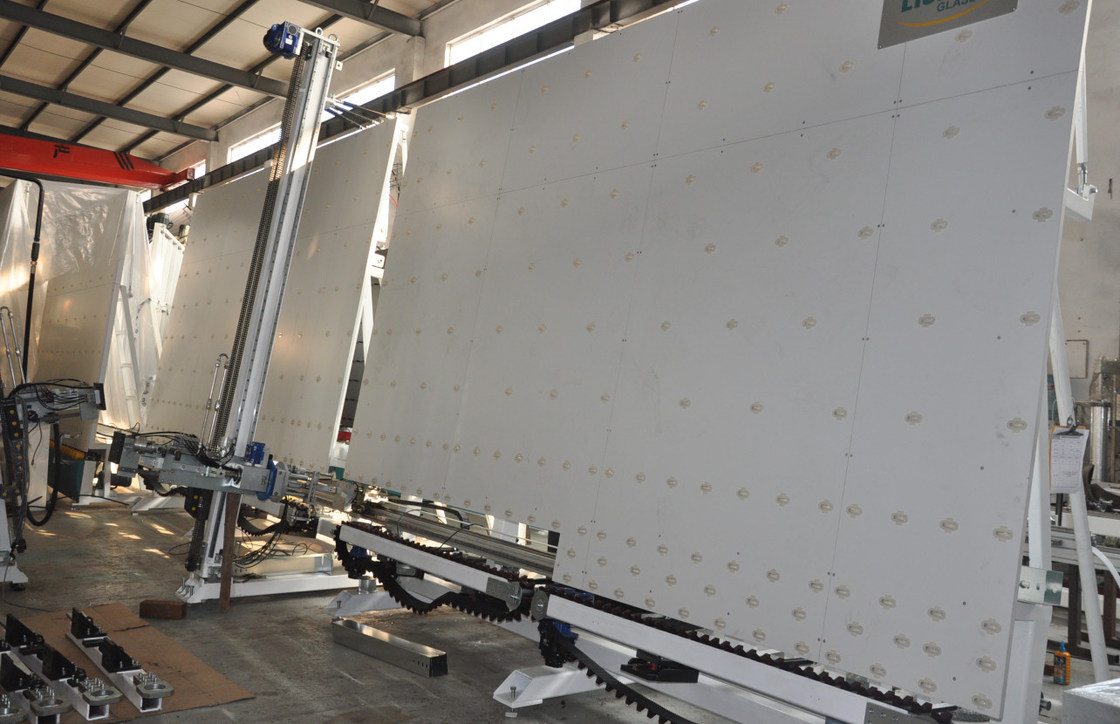

Automatic sealing robot - 2000 (Height) *2500
Vertical Insulating Glass Sealing Robot silicone extruder machine
Application of silicone extruder
Using 8 servo motors
l Adopt Japanese servo control system, stable performance
l Automatically measure glass size, gluing depth, and gluing speed through linear adjustment
l Using synchronous belt, stable conveying and accurate positioning
l Spare parts are highly standardized and precise, ensuring that the machine can be used for a long time
l The corners of the glass are full, without bubbles, and the surface is smooth, no need
l Fully automatic high-efficiency machine
l The new scraper design is especially suitable for making the train IG have very flat sides and corners, and no air bubbles.
l Automatically repair bright glass corners on the surface
l Stable conveying, no scratches, no pollution
l Single function part is equipped with manual function, easy to adjust
Detail drawing of silicone extruder
ØOne set of pump A and pump B
Equipped with a single A component and a single B component. Glue A and B are automatically mixed and proportioned automatically.
ØAdhesive device
When the pressure increases, more glue B will automatically flow back, thus saving material.
ØDouble body device
The two-body device has two functions. The one on the left is used to filter impurities and moisture when filling gas, and the one on the right plays the role of lubrication.
ØSeal device
Adopt a Japan Yaskawa servo motor to control the seal with 360°rotation. A scraper is set to scrape the excess glue, and there is no need to repair the glass corner a second time.
ØSynchronous belt
The timing belt device ensures that the glass can be transported smoothly and accurately positioned.
Smart sensor
Automatically position the glass and sensor glue to the depth, and the coating speed can be adjusted online.
ØStorage function
When the glass size is less than 1.8m, it can store three pieces of insulating glass.
ØEquipped with manual device
Each individual part is equipped with manual operation, just in case.
ØEight servos
The robot uses eight Yaskawa servo mechanisms, four of which control the transmission components. In the other four servo mechanisms, they control the suction cups, lifting, driving and adjusting mechanisms, and rotation.
ØMain electrical components
The main electrical components use Siemens, SMC, and other famous spare parts to maintain a more stable performance.
² Technical data silicone extruder machine
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list silicone extruder machine
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
Details of small extruder machine
• Japan Yaskawa servo system control,full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• With code scanning function (Optional)
