| Machine Name: | IGU Production Line | Max Glass Size: | 2500 Mm*3500 Mm |
|---|---|---|---|
| Washing Brushes: | 3Pairs | Glass Thickness: | 3 - 15 Mm |
| Washing Speed: | 2-10m/min | Glass Conveyor Speed: | 45m/min |
| IG Thickness: | 60 Mm | Washing Machine Material: | Stainless Steel |
| Optional Function: | Triple Glass / Step Glass | Warranty: | 1 Year |
| High Light: | Glass 3mm Vertical Insulating Glass Machine,IGU 3mm Vertical Insulating Glass Machine,IGU 3mm insulated glass manufacturing equipment |
||

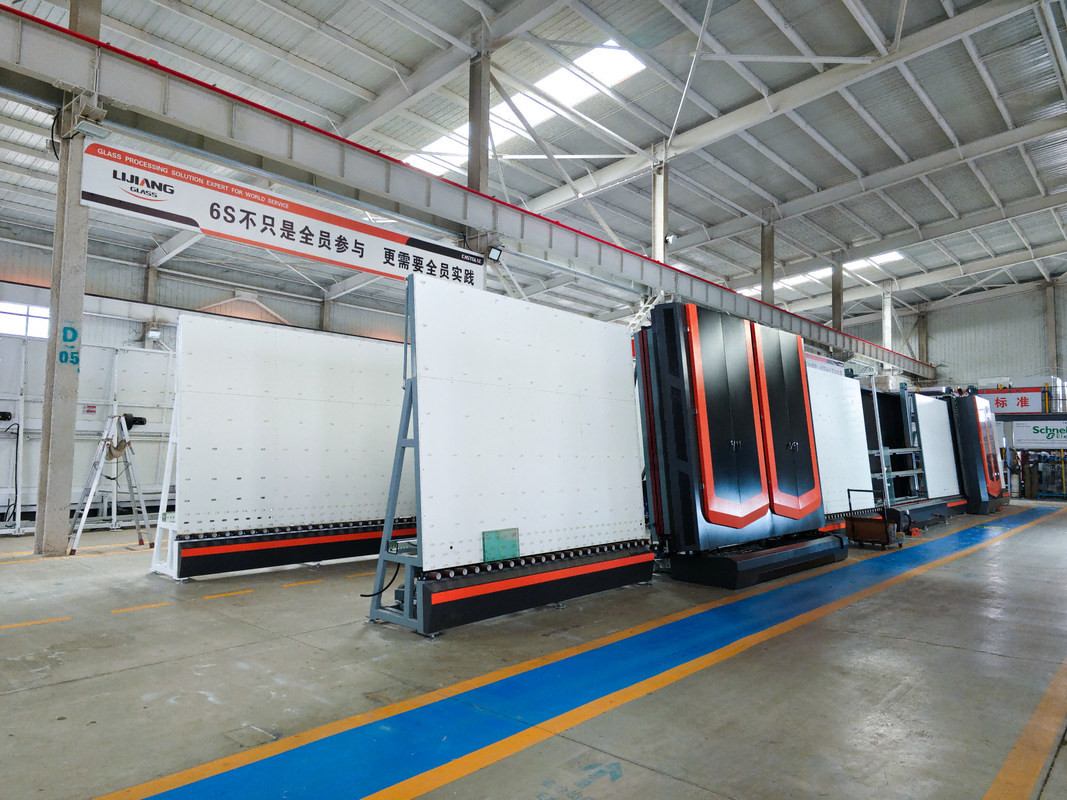

Automatic Vertical insulating glass IGU production line glass making line
Main Features:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
Functions :
double glazing glass
triple glazing glass
four sides step glazing glass
Special technology of IGU Line :
Making two pieces of IG units in once time
Filling argon gas online
Shaped glazing glass
Low-e film glazing glass
Air floating insulating glass line
Vertical Insulating Glass Production Line series
| Unit | LJBZ2025 | LJBZ2025G | LJBZ2535 | LJBZ2535G | LJBZ2535DG | LJBZ2535GS | |
| Power supply | 380V50Hz | ||||||
| Total power | KW | 39.5 | 36 | 41 | 39.5 | 44 | 40 |
| Washing speed | m/min | 2~10 | |||||
| Maximum working speed | m/min | 45 | |||||
| Minimum glass size | mm | 450*280 | |||||
| Maximum glass size | mm | 2000*2500 2000x3000(Secondary pressure plate) |
2500*3200 2500*3500(Secondary pressure plate) 2500x4500(Secondary plate pressing and auxiliary sucker mechanism) |
2500*3500 | |||
| Flat glass thickness | mm | 3~15(3-30) | |||||
| Washing brushes | Pieces | 6 | |||||
| Maximum thickness of insulating glass | mm | 60 | |||||
| Total gas consumption | L/min | 1200 | 1200 | ||||
| Conveyer roll height | mm | 520 | |||||
| Dimension | L*W*H 长*宽*高(mm) |
19500*3500*3200 | 23500*3500*3700 | 27000*3500*3700 | 23800*3200*3700 | ||
Automatic vertical insulating glass production line LJBZ2025 is not include gas filling function,can make max glass size 2000*2500
Automatic vertical insulating glass production line LJBZ2025G is include gas filling function.
Automatic vertical insulating glass production line LJBZ2535 is not include gas filling function,can make max glass size 2500*3200
Automatic vertical insulating glass production line LJBZ2535 is include gas filling function,can make max glass size 2500*3200
Automatic vertical insulating glass production line LJBZ2535DG can filling argon gas two pieces at one time,can make max glass size 2500*3200
Automatic Vertical Insulating Glass Production Line has 7 sections:
01 transfer section;
02 washing section;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Washing section features:
• Using 3 pairs of soft brushes with 0.1mm soft hair, can wash low-e glass
• The air knife can automatically adjust the width of the air knife according to the thickness
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• Stainless steel material
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• European silencer system
• Water tank automatic temperature control, water replenishing system
• Pre-washing (Optional)
Pressing section features:
• Pressing board with adjustable structure to guarantee long-lasting service life
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• The pressing plate can be opened for easy maintenance
Filling argon gas automatically
• Automatically filling argon gas inside the pressing plate with precise gas concentration
• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
• Fast reacting sensor for permanent control of gas filling process
• Automatically set gas data and display data on the screen
• No need to drill holes in spacer frame
• Standard gas is Argon gas
LIJIANG GLASS have about 20 products are widely used in customized insulating glass industry, windows and doors, building curtain wall, industrial aluminum alloy, high-speed rail, elevator and advertising industry.
LIJIANG Glass Main products :
IG line series;
Sealing robot series;
Spacer bending machine series;
Butyl extruder machine series;
Low-e film edge deletion machine;
Molecular sieve filling machine;
Auxiliary insulating glass machines.
Related product
1.Manual Gas filling machine LJCJ02
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full,it will alarm and stop automatically
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
2.Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
3.Automatic Vertical Insulating Glass Sealing Robot LJTJ2540
Main Features:
• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment
• Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc (Optional)
• Seal stepped glass fully at once (Optional)
• Can seal stepped IG with four sides (Optional)
• Adopts double pumps device to use two kinds of different sealants, such as silicone, polysulfide and silicone structural sealant (optional)
Technical data
| Max. glass size | 2500*4000mm (Optional) |
| Min. glass size | 300*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 11000*2000*3500mm |
