Place of Origin:
JINAN CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJHJ01
Video

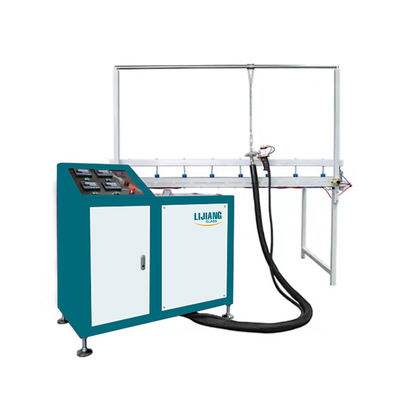

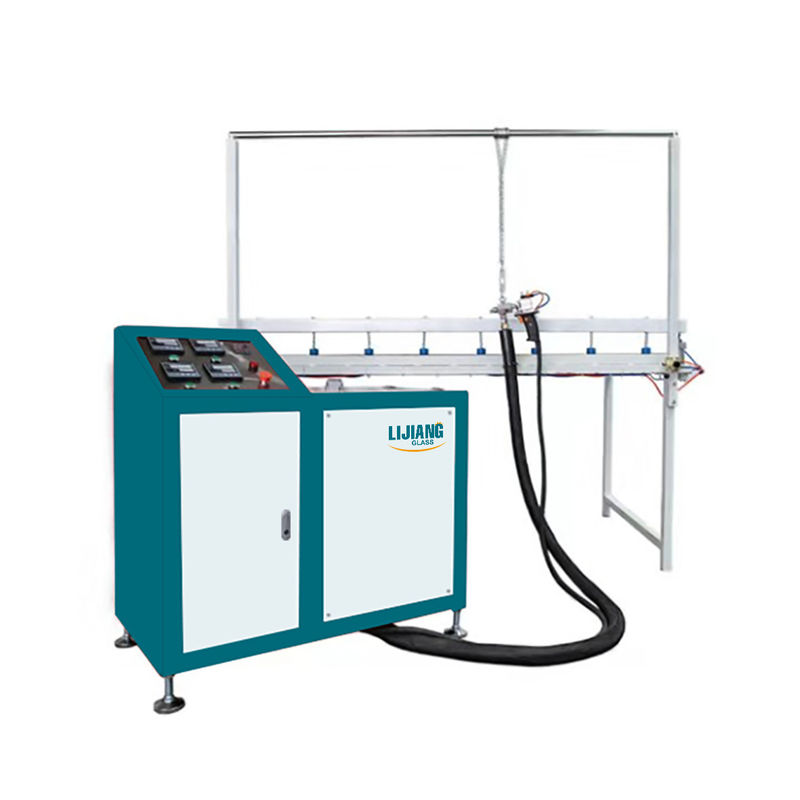

Manual Hot Melt Extruder Sealing Machine For Insulating Glass Machine LJHJ01
Introduce of hot melt sealing machine :
Hot melt sealing machine is designed for the hot melt of insulating glass with aluminum spacer. It is small and light, easy to operate and repair and has stable control over temperature. Operation can be carried out after preheating of half an hour.
Parameters of hot melt sealing machine :
| Power Supply | 380V / 220V 50Hz 3P |
| Power | 11kw |
| Weight | 120kg |
| Glue capacity | 35kg |
| Overall dimensions | 1100*720*1050mm |
| Rubber speed | 0-2Kg/min |
|
Product name |
Hot Melt Glue Silicone Insulating Glass Sealant Sealing Machine |
Silicone sealants spreading machine for making insulating glass
Main feature :
• Imported motor system to improve equipment efficiency
• Sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data:
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Sealant-spreading machine LJST03
Main feature
• Use cylinder to provide power
• China sealant gun, stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Our corporate vision:
To make glass processing simpler and more intelligent, to be a high cost-effective specialty in the glass machinery industry, to better feed back and serve our customers, employees and society with better products and better services, and to make our life better!
Our products mainly include: IG line series; Automatic sealing robot series; Low-e film edge deletion machine; Spacer bending machine series; Butyl extruder machine series; Desiccant filling machine and other auxiliary insulating glass machines. About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, building curtain wall, high-speed rail, elevator and advertising industry.
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Address: Block B 1307, Green Square, Huaiyin District, Jinan, China
Tell : 0086 0531-85960498 Fax : 0086 0531-87562846
Salesperson: Hermione (+86 18353163989 / +86 13001733235)
Email: sales01@lijiang-glass.com
Website : www.lijiang-glass.com / www.insulatingglassproductionline.com
