Product Details:
|
Name: | Glass Loading Machine | Power: | 380V 50Hz 3P(optional ) |
---|---|---|---|
Color: | Customeized | PLC: | SIEMEN |
High Light: | 2500 * 3500 Mm Vertical Glass Loading Machine,PLC Vertical Glass Loading Machine,2500 * 3500 Mm glass loader |

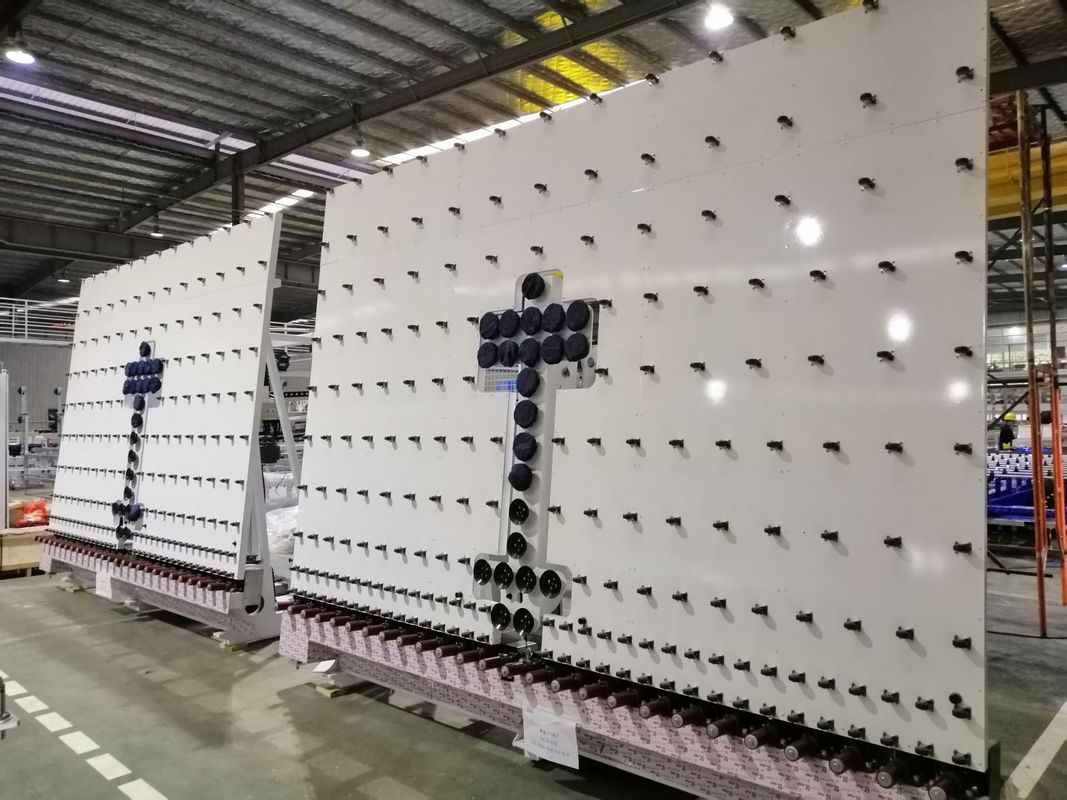

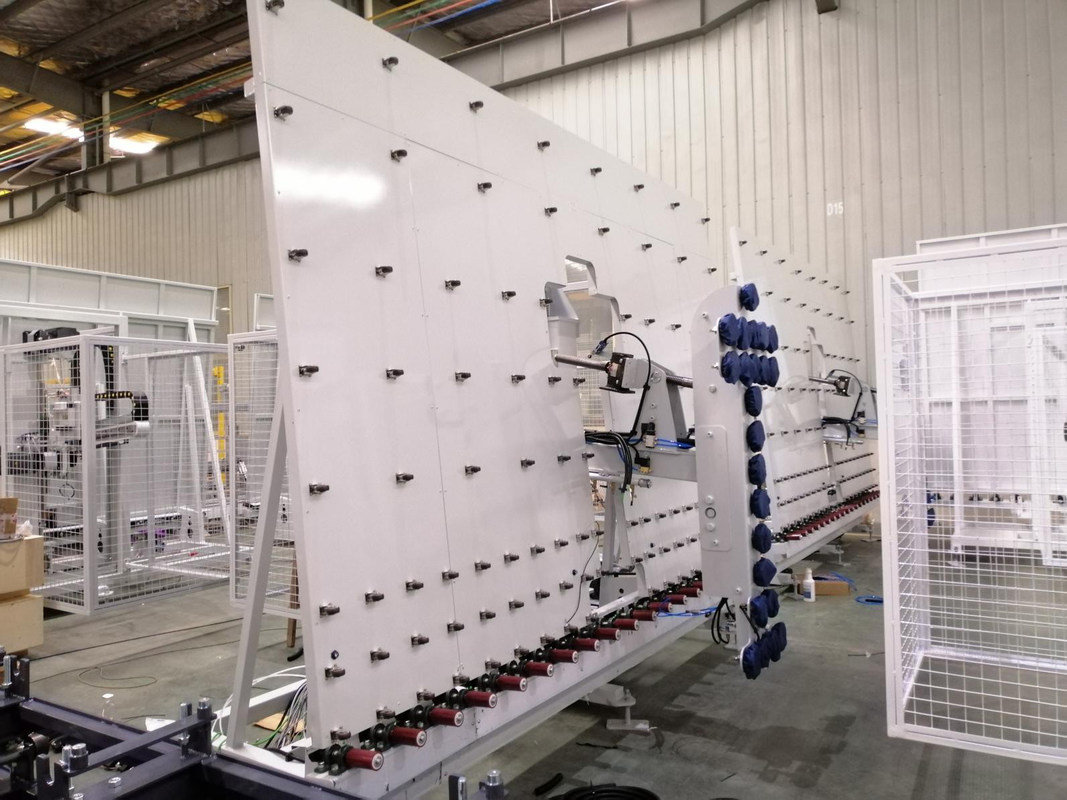

Automatic vertical glass loading machine aximum size 2500 * 3500 mm
A.Technical performance:
1. All mainframes of the equipment use the national standard high quality rectangular steel pipe group welded and mounted with bolts.
2. The electrical control system of the equipment uses Schneider brand electrical modules. Program control uses an imported SIEMENS programmable controller with a touch panel.
3. The machine is designed with a concise appearance, complies with the latest factories with safety signs and refers to Euro IEC standards from design to manufacturing and installation.
TECHNICAL DATA | |
Max glass size | 2500*3500mm |
2000*2500mm | |
Glass thickness | 3-12mm |
Air source | 0.8Mpa |
Power | 3P 380V/1P+N 220V 50Hz 38KW |
Machine Size | 3200*2800*1800mm |
2600*2800*1800mm |
B.Mainly technical parameter:
1. Mitsubishi PLC control, 10 inch touch screen adopted. The dynamic system uses a 3-servo motor drive and is easy to operate. Glass putting methods are general putting and up / down putting.
2. The V-belt can be automatically adjusted to the center position of the glass thickness. The motor drives the ball screw of the reducer to adjust the V-belt. The displacement sensor guides the original point and moves on the liner track.
3. The machine head will automatically rise to the height of the glass. If the glass size is too small, you do not need to raise it. Servomotors drive the reducer with a chain sprocket on the liner track, raising and lowering the machine's head so that the required height can be adjusted accurately.
4. The transport section automatically transports the glass to the center position of the suction cup support. The servomotor drives the reduction gear with a chain sprocket on the liner track, moving the glass to the center of the suction cup.
5. The suction cup support can be automatically adjusted up and down according to the length and width of the glass. When the glass reaches the required position, the assistant bracket moves backwards. Two air cylinders drive the 4-bar linkage to move the active plate back and forth, ensuring parallel synchronization.
6. The suction cup sucks, stretches, stretches your arm to reach the prescribed negative pressure, and the negative pressure gauge has a protective effect, which can prevent the glass from breaking in case of air leakage.
7. Machine can save 2-3 people labor and double work efficiency
8. The suction cup up / down, suction cup front / rear, and V-belt transport are driven by a servo motor and can be placed in the correct position.
10.Super HMI monitors the operating status and system parameters of the equipment. You can also set the data according to the height and angle of the various glass racks and preset or record the current production shift.
11. Vacuum pump system: Very effective monoblock rotary blade type vacuum pump.
Sucker: Imported PF sucker is used ¢ 120MM type
12. Compressed air supply: 5-7bar, 30L / min; Compressed air supply: 5-7bar, 30L / min;
13. Power supply: 380V, 50HZ, 3-phase,
