2500*3500mm Verticial Glass Loading Machine For Insulating Glass Processing

Automatic Verticial Glass Loading Machine for Insulating glass processing by max size 2500*3500mm

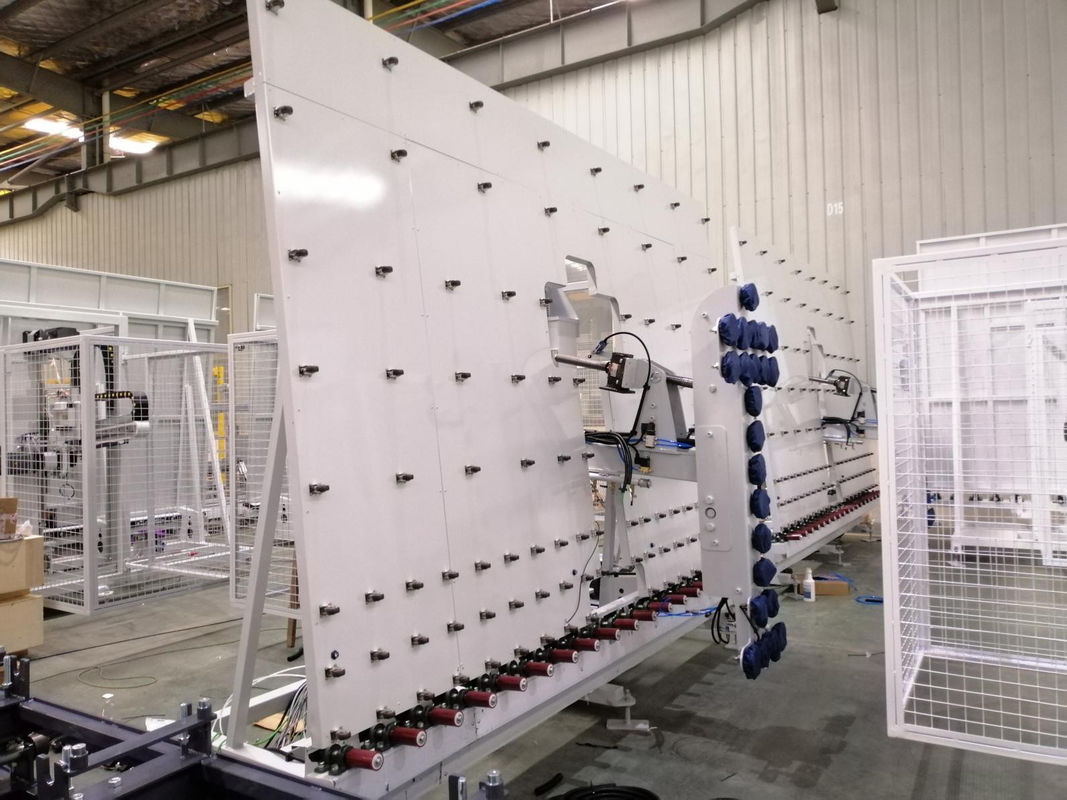

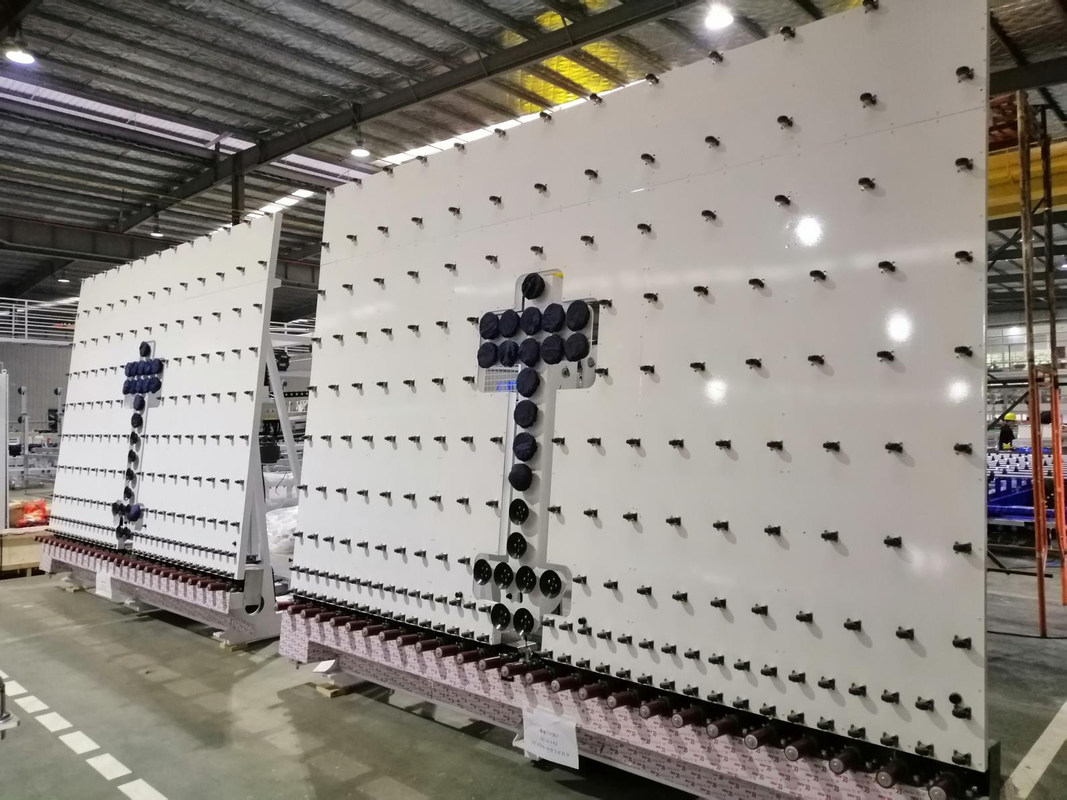

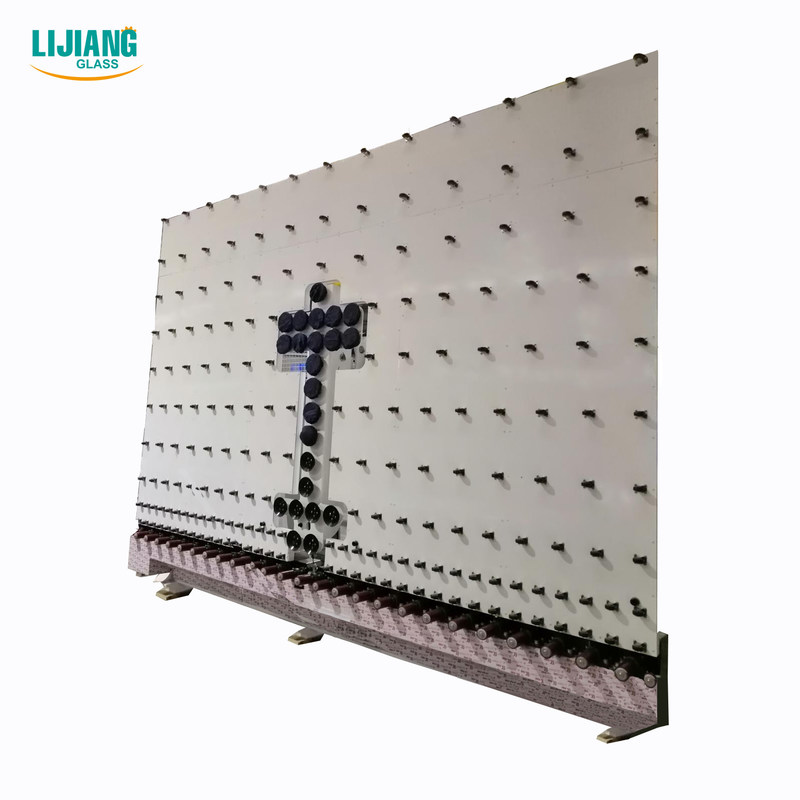

LJASP3525 vertical loading table of insulating Glass Machine

A.Technical performance:

1. All main frames of equipment use quality rectangle steel pipe groups of national standard welded and fitted with bolt.

2.Electric control system of equipment use Schneider brand modules of electric; Program control uses imported SIMENS programmable controller, fitted with touch panel.

3.The machine was designed with concise appearance and conforms to the modern factory with safe signs, and reference to the Euro IEC standard from design until manufacture and installation.

B.Mainly technical parameter:

1. It adopts Mitsubishi PLC control,10 inches touch screen.the dynamical system adopts 3 servo motor drive,it is easy to operate.the putting way for glass is of common putting,up/down putting;

2.The V belt can automatically adjust to the center position of glass thickness;The motor drives ballscrew of reduction gear to adjust the V belt.The displacement sensor inducts the original point,and move on the liner track;

3. The machine-head automatically goes up to the glass height,if glass size is too small,it is not necessary to go up;the servo motor drives the reduction gear by chain sprocket on the liner track to make the machine head up/down,so that it can accurately the needed height;

4. The transportation section automatically conveys the glass to the center position of sucker support.The servo motor drives the reduction gear by chain sprocket on the liner track to transport the glass to the sucker central position;

5.The sucker support can automatically adjust at up/down by glass's length and width;When glass reaches to the needed position,the assistant bracket goes backward; The two air cylinder drives the four-bar linkage to make the active plate move front/back,so that it can guarantee the parallel synchronicity.

6.The suckers inhale,stretch,the arms stretch out to reach the given negative pressure,the negative pressure gauge has protective effect,and can avoid the the glass broken in case of the air leakage.

7.The machine can save labor 2-3people,and improve the working efficiencyby 2times

8.The sucker up/down, sucker front/back,V belt transportation are drived by servo motor,it can be put at the accurate position;

10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.

     11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;

Suction cups: Uses imported PF suction cups ￠120MM type

12. Air compress supply:5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;

13.Power supply: 380V, 50HZ, 3 phases,

As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q: About this Machine,What’s the guarantee ?

A:1).Our guarantee for 12 months.

2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

Q:How about your warranty?

A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?

A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: What's the delivery term?

A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q:How about the packing for machine, is it safely protected during transportation?

A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
