Product Details:
|
Name: | Glass Loading Machine | Power: | 380V 50Hz 3P(optional ) |
---|---|---|---|
Color: | Customeized | PLC: | SIEMEN |
High Light: | 2000*2500mm Insulating Glass Production Line,2000*2500mm Glass Loading Table,Loop Control Glass Loading Table |

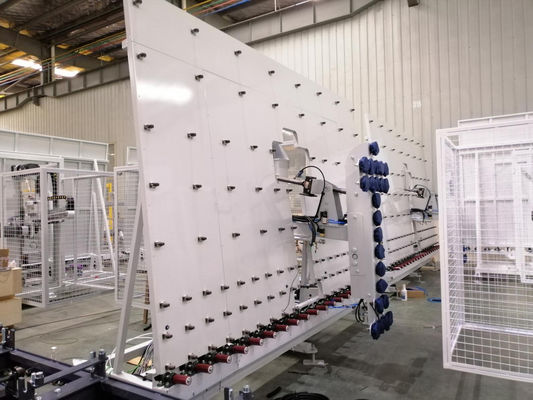

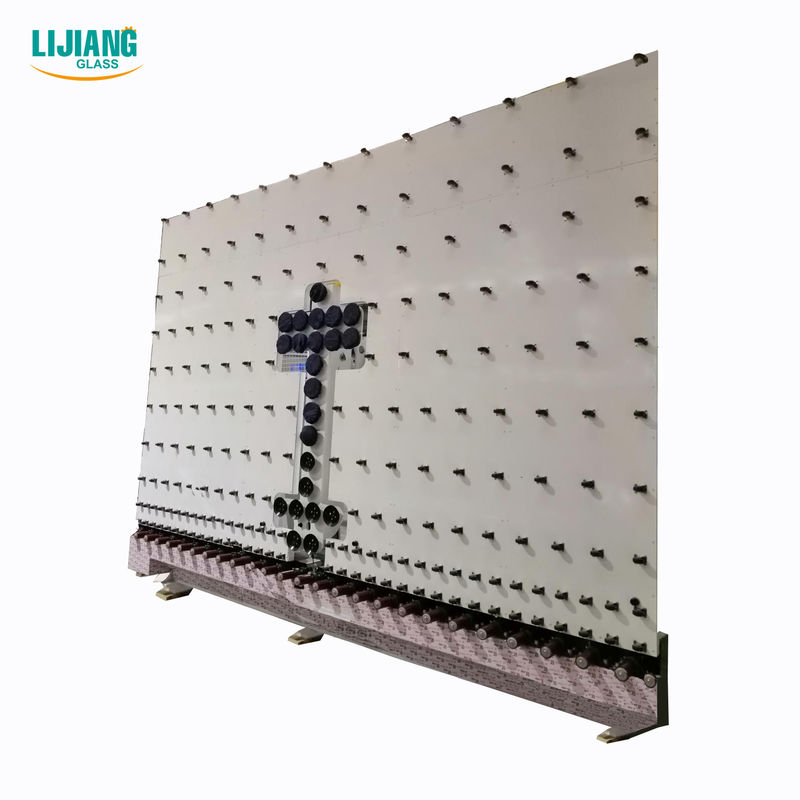

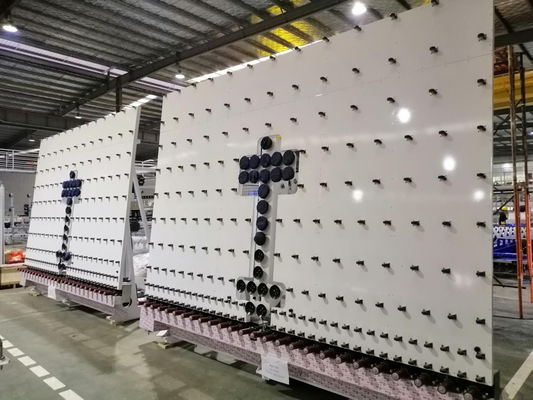

Automatic Glass Loading Machine for Insulating glass processing
LJASP3525 vertical loading table of insulating Glass Machine
A.Technical performance:
1. All main frames of equipment use quality rectangle steel pipe groups of national standard welded and fitted with bolt.
2.Electric control system of equipment use Schneider brand modules of electric; Program control uses imported SIMENS programmable controller, fitted with touch panel.
3.The machine was designed with concise appearance and conforms to the modern factory with safe signs, and reference to the Euro IEC standard from design until manufacture and installation.
TECHNICAL DATA | |
Max glass size | 2500*3500mm |
2000*2500mm | |
Glass thickness | 3-12mm |
Air source | 0.8Mpa |
Power | 3P 380V/1P+N 220V 50Hz 38KW |
Machine Size | 3200*2800*1800mm |
2600*2800*1800mm |
B.Mainly technical parameter:
1.Loading max glass size: L X W = 3500 x 2500 mm
Loading min. glass size: L X W = 800 x 600 mm
Glass thickness: (3-10mm)
2.Dimension of loading table approx.:
L X W X H= 3700mm x 2800mm x 2500mm+ bottom support 530mm(±30mm)
3.The vertical loading table uses Servo motor as drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35m/min;Loading cycle time: 35S
4.Adopts full-closed loop control system for accurate positioning for the machine and stable running system;Configuration description
5.The tilting arm horizontal movement controlled by Servo motor and precise gear box, gear rack drive;
6.Lifting structure: Servo motor and precise gear box control and synchronous belt drive;
7.The suction cups frame tilting structure: Servo motor and precise gear box control and crank connecting rod drive;
8.Bottom transfer structure, Servo motor and precise gear box control and chain drive.
9. 4 axis all-digital control with precise positioning and speedy flexibility; All speed can be
adjustable according to production line speed.
10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.
11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;
Suction cups: Uses imported PF suction cups ¢120MM type
12. Air compress supply:5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;
13.Power supply: 380V, 50HZ, 3 phases,
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1).Our guarantee for 12 months.
2).24 hour’s technical support by email or calling
3).English manual and video tutorial
4).We will provide the consumable parts at an agency price
5).24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
