Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 800KG | ||
| High Light: | Glass 200KG Wall Cantilever Jib Crane,Glass 800KG Wall Cantilever Jib Crane,Glass 200KG cantilever lifting device |
||
Glass 200KG 400kg 600kg 800kg Cantilever Jib Crane for insulating glass lamilated glass

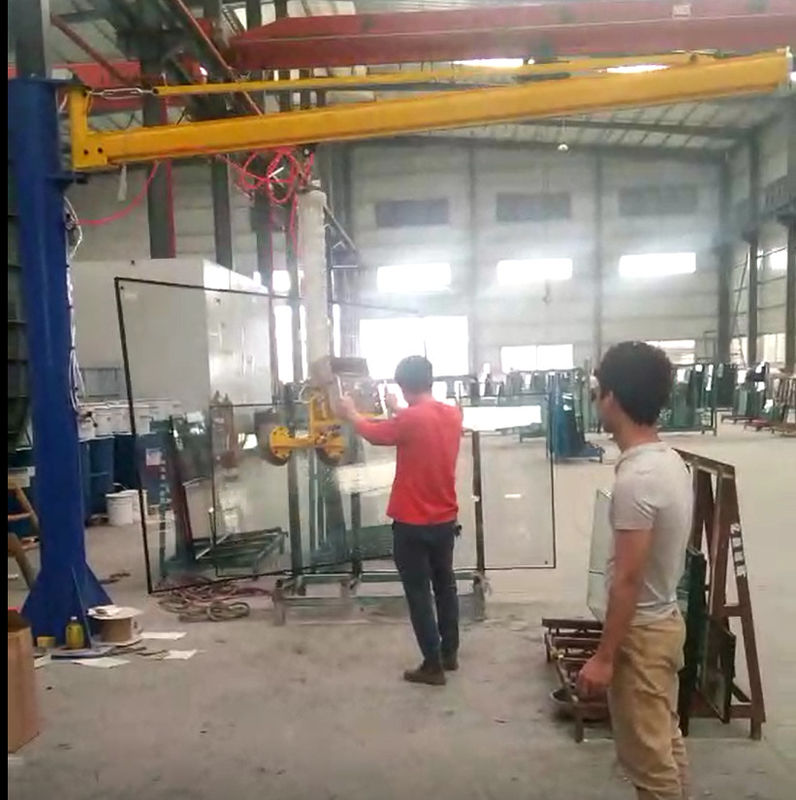

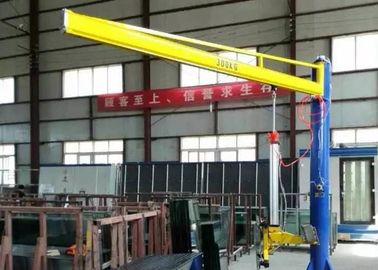

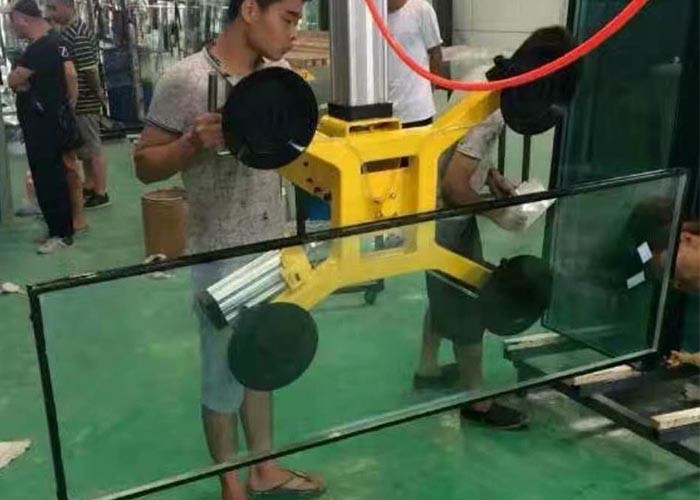

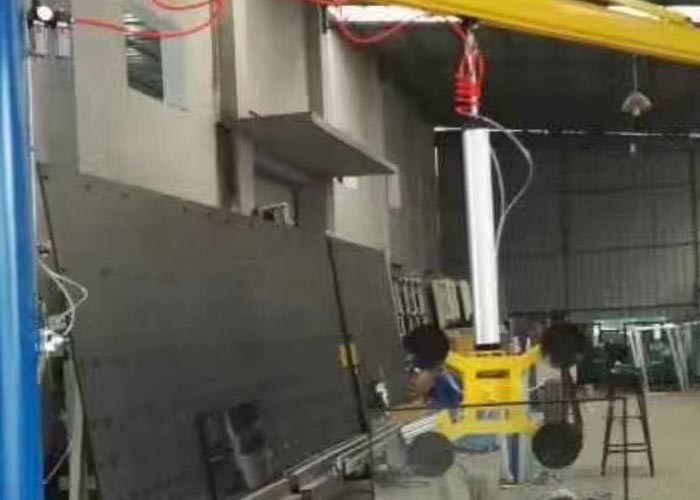

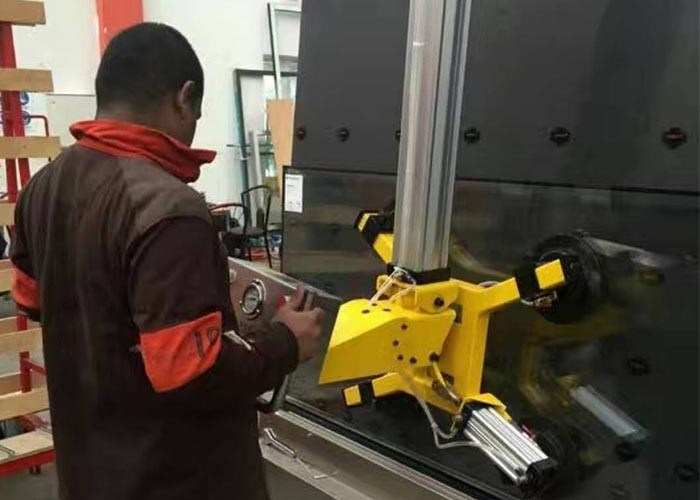

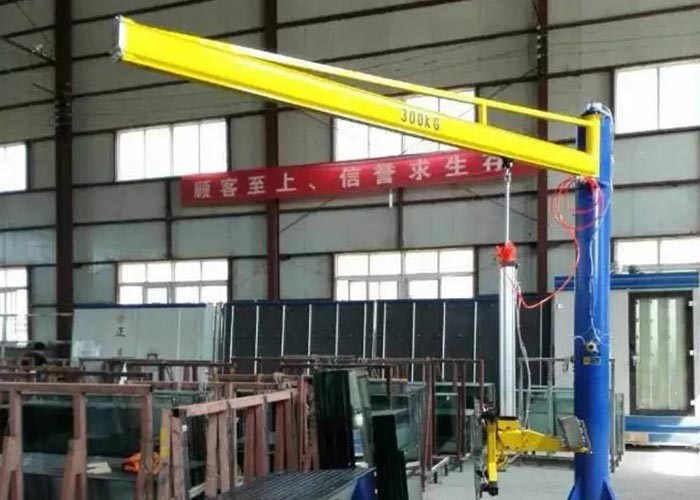

Glass Cantilever Crane with lifting sucker
1.Suitable for moving insulating glass, tempered glass, glass curtain wall, on-site construction of glass deep processing and
solar photovoltaic glass.
2.Maximum bearing capacity is 300Kg, Max. glass size can reach to 8m (Length)×4m(width).
3.It can turn the glass with various degree.
4.Equipped with gas storage function, the machine can continue working 20 minutes without gas.
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
| Max Glass weight | 360KG | |
| Rotation angle | 90° | Left and Right |
| Suction cups | 4 Pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
| Max Glass weight | 360KG | |
| Rotation angle | 90° | Left and Right |
| Suction cups | 4 Pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
Vacuum glass electric suction cup lifter KX4
|
Product Name
|
Pneumatic Glass Vacuum Lifter
|
||
|
Suction cup size mm
|
300mm (unified standard suction cup size, each device can be used in common)
|
||
|
Single suction cup bearing KG
|
100KG (the actual test load can reach more than 180KG)
|
||
|
Rotation function
|
360° manual rotation (special labor-saving device, safe and reliable, easy to operate)
|
||
|
Flip function
|
90° pneumatic flip
|
||
|
Voltage DC
|
DC12V (built-in 2 batteries for long battery life)
|
||
|
Endurance
|
It can be used for 3-5 days after one charge, and 2 batteries can be used alternately
|
||
|
Extension rod MM
|
500MM (length of one side, special glass specifications can be customized)
|
||
|
Control System
|
Wired remote control suction and release, wireless remote control optional.
|
||
|
Customizable
|
Note: It can be customized according to your company's specific process requirements, work-piece size and weight.
|
||
|
Weight standard
|
Conventional glass weight = length × width × thickness × glass density 2.5÷1000 000 = glass weight
Example: 3660×2440×19×2.5÷1000 000=424KG |
||
|
Safety Factor
|
According to the European CE safety regulations on lifting equipment and the safety regulations in the German accident prevention regulations UVV 18 and VBG 9a, the best safety factor for vacuum spreaders is 2.0. For example, the single suction force of the FSRL280 suction cup is 3139N, divided by the safety factor 2.0 , The load is 1570N.
|
||
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
