Product Details:
|
| Production Name: | Automatic Sealant Dispensing Machine | Max Glass Size: | 2500*4000mm |
|---|---|---|---|
| Glass Thickness: | 60 Mm | Glass Type: | Double/step/triple Glass |
| Warranty: | One Year | Color: | Your Needs |
| High Light: | 5m/Min Automatic Sealant Dispensing Machine,Insulating Glass Automatic Sealant Dispensing Machine,5m/Min hot melt glue box sealing machine |
||

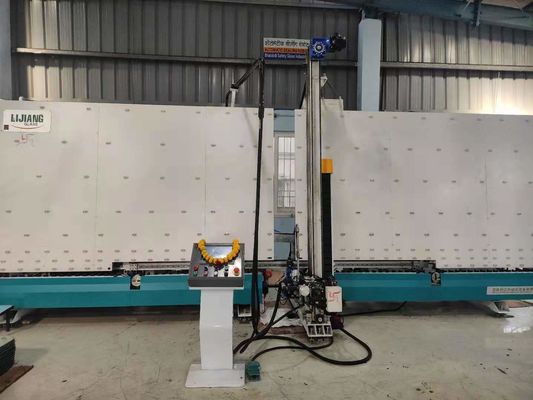

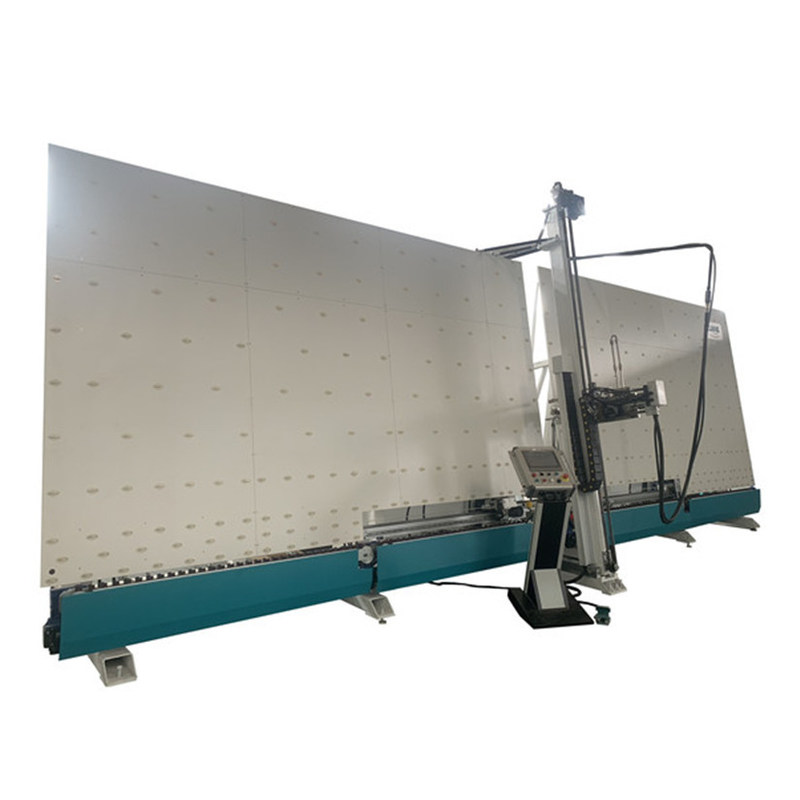

Automatic sealant dispensing machine for Insulating Glass Sealing
Automatic sealant dispensing machine can automatically recognizing glass size by sensors, don't need input glass size on the touch screen. Insulating glass sealing robot can coat 8 kinds of shaped IGU.
Application
Full automatic and high-efficiency machine
Adopt Japan servo control system with stable performance
Adopt 8 servo motors
The glass corners are full without air bubbles, smooth surface,Automatically repair glass corners with beautiful surface
Automatically measure glass size, glue depth and glue speed with linear adjustment
Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
Adopt timing belt to keep smooth convey with accurate position
New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
Smooth convey without scratch and pollution
Single-function parts are equipped with manual functions, easy adjustment

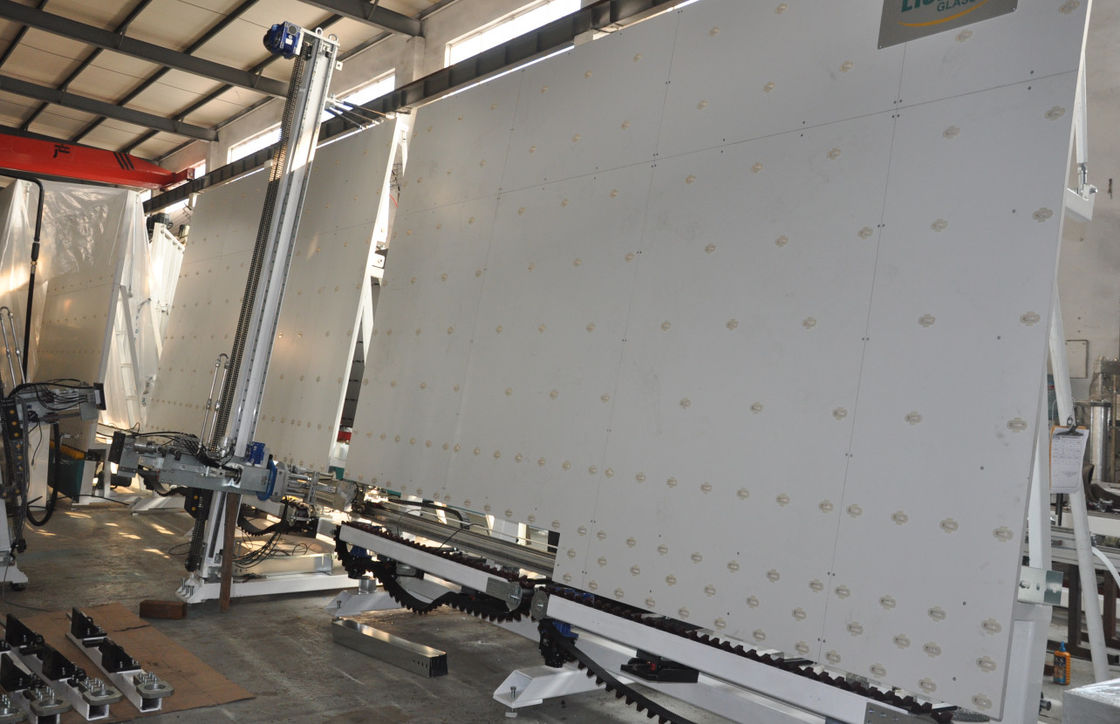

Detail of insulating glass sealing robot
1.Automatic insulating glass sealing machine adopt 8 sets of Japan ANCHUAN servo control system with stable performance.
2.Glass corners are full without air bubbles, smooth surface, Automatically repair glass corners with beautiful surface
3. Glue system can be selected
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.
Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.
4. Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
5.Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.
6. Time belt device ensure that glass can be smooth transmission and positioned accurately.
7.Automatically position the glass and sensor glue deep, the coating speed can be adjustable online.
8.Storage Function
It can store three pieces of insulating glasses when glass sizes are less than 1.8m.
9.Main electrical components
The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
Technical data of small extruder machine
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
