|Production Name:||Insulating Glass Processing Machine||Max Glass Size:||2000 Mm*2500 Mm|
|IG Glass Thickness:||60 Mm||Material:||Stainless Steel|
|Soft Brushes:||6 Pieces||Pressing Machine:||Adjustable|
H2000mm Low E Glass Washing Machine,
SUS Low E Glass Washing Machine,
H2000mm Insulating Glass Processing Machine
Automatic Low-e Glass Washing Machine Insulating Glass Line Glass Processing Machine
Insulating glass processing machines - 2000 mm (height) * 2500 mm

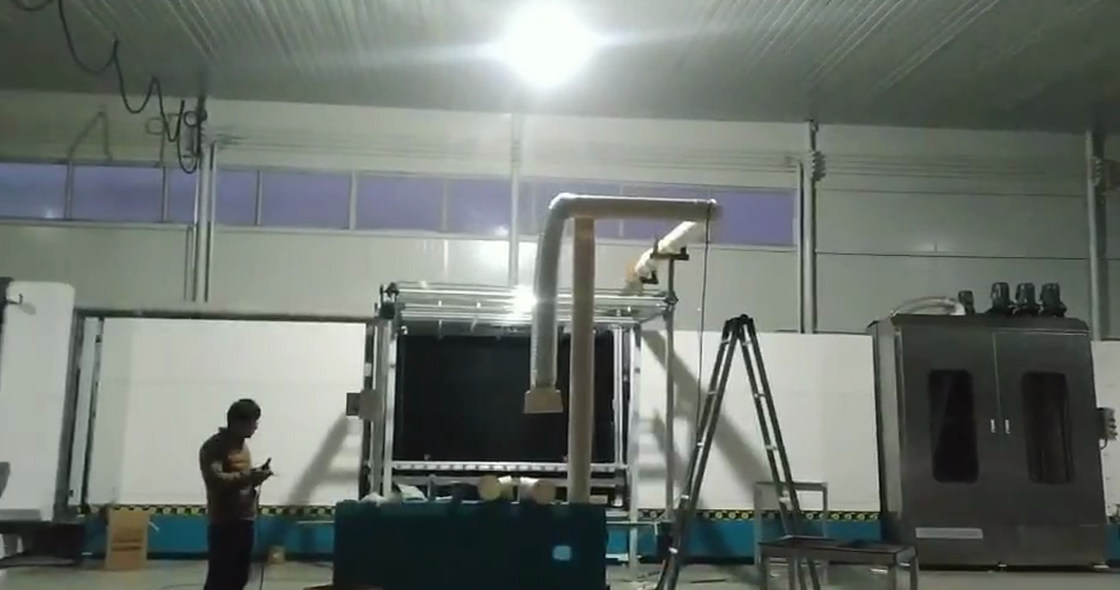

1.Vertical Insulating Glass Production Line insulated glass machine
01 transfer section;
02 washing machine;
03 inspection and installation section;
04 transfer section;
05 pressing and filling section;
06 discharge section.
(Machines’ color can be customized, the current device colors are white and green.)
Details introduce of the LJBZ2025 insulated glass machine
• 01 transfer section
Coating detection mechanism, automatic detection of offline Low-e glass
This sensor is installed before washing machine. It can automatically recognize Low-e glass surface fast and precisely, preventing the glass from dropping Low-e surface.
• 02 washing machine
• Using 6 pieces of soft brushes, can wash low-e glass clearly
• It is made of 304 stainless steel, the brush bearing is made of Harbin stainless steel, which is famous in China;
• Using Europe's advanced anti-noise system to create a good working environment for employees, the noise can be controlled below 90 decibels by using nylon gear and sponges.
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the glass thickness
The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*1m insulating glass.
1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.
2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
As different countries have different water quality, in order to ensure that the glass is washes clearly enough, adopting air heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.
• 03 discharge section
• Storage glass
• 04 inspection and installation section
The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.
• 05 pressing section
• Ultra-long (2000mm*3000mm) insulating glass can be compressed twice
• Adopts conveyor belt to transfer glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
• 06 discharge section
• Storage glass
• Can be connected to sealing machine
Technical data of insulated glass machine
|Max. glass size||2000mm*2500mm|
|Max glass size for pressing twice||2500mm*3000mm|
|Min. glass size||280mm*450mm|
|Insulating glass thickness||50mm|
|Glass washing speed||2-10m/min|
|Glass conveyor speed||45m/min|
|Washing brushes||3 pairs of soft brushes|
|Water supply||Water consumption:0.5t/h conductivity:40μs/cm|
|Air supply||Flow: 0.8m/min|
|Voltage||3P 380V 50HZ|
