Product Details:
|
| Product Name: | Sealant Dispensing Machine | Max Glass Size: | 2500mm*3500mm |
|---|---|---|---|
| Min Glass Size: | 280mm*400mm | Glass Thickness: | 50mm |
| Advantage: | Yaskawa Servo Motor | Color: | Can Design By Customer's Demand |
| Application: | Silicone Sealant Extruder, Building Glass, Double Glass, Door & Window Processing, Architectures Furniture Automobile Household Appliance | Usage: | Insulting Glass Production, Insulting Glass Edge Sealing |
| High Light: | 32MPa Insulting Glass Sealant Extruder,Pump A Insulting Glass Sealant Extruder,32MPa Sealant Dispensing Machine |
||

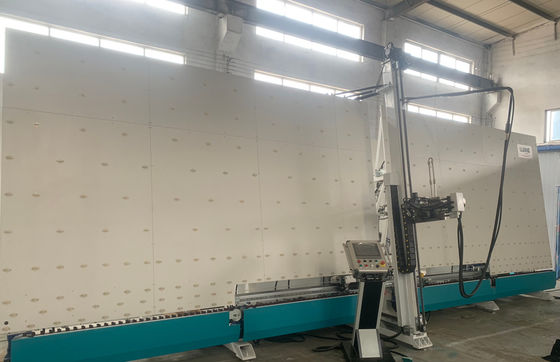

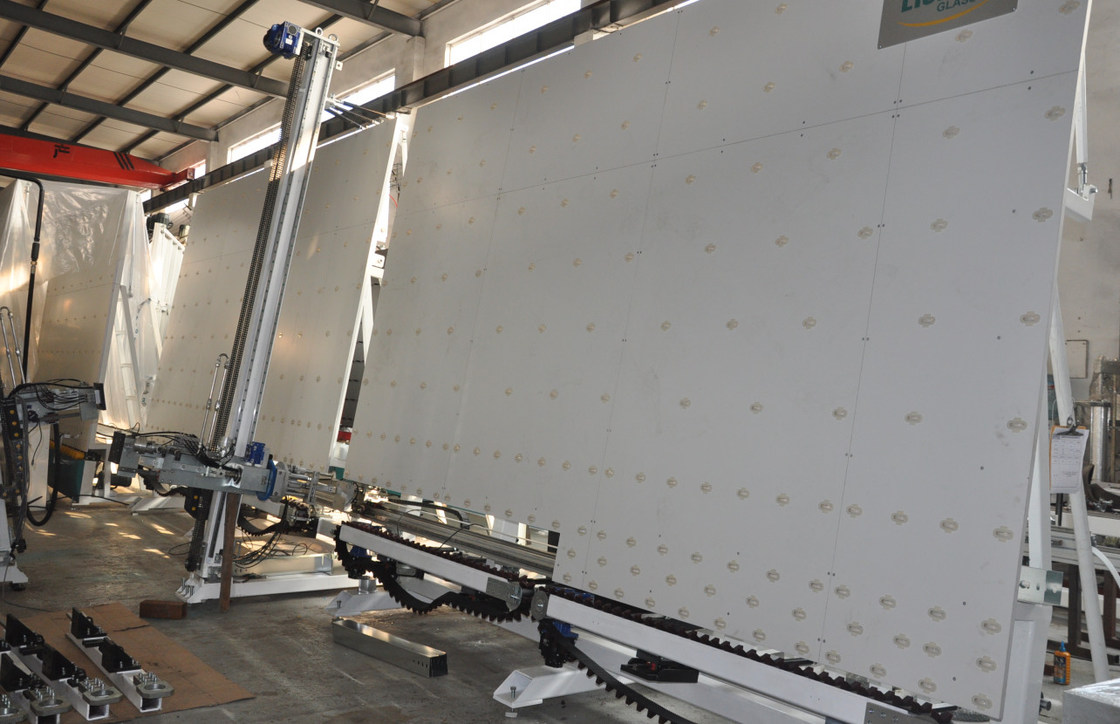

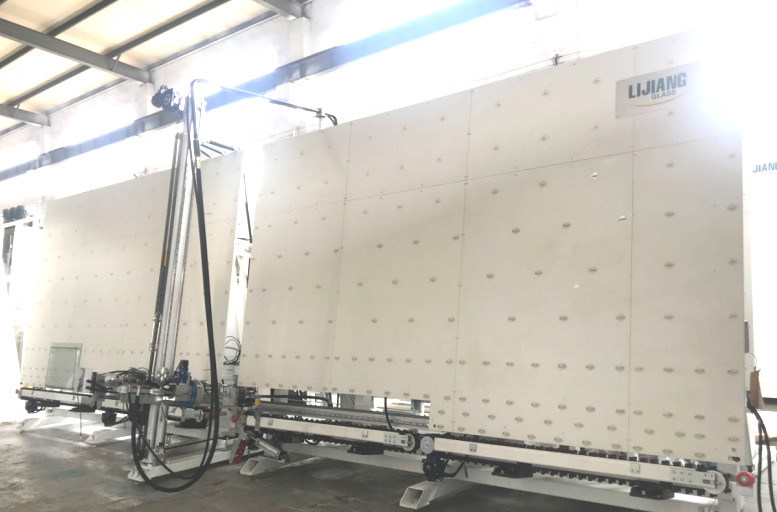

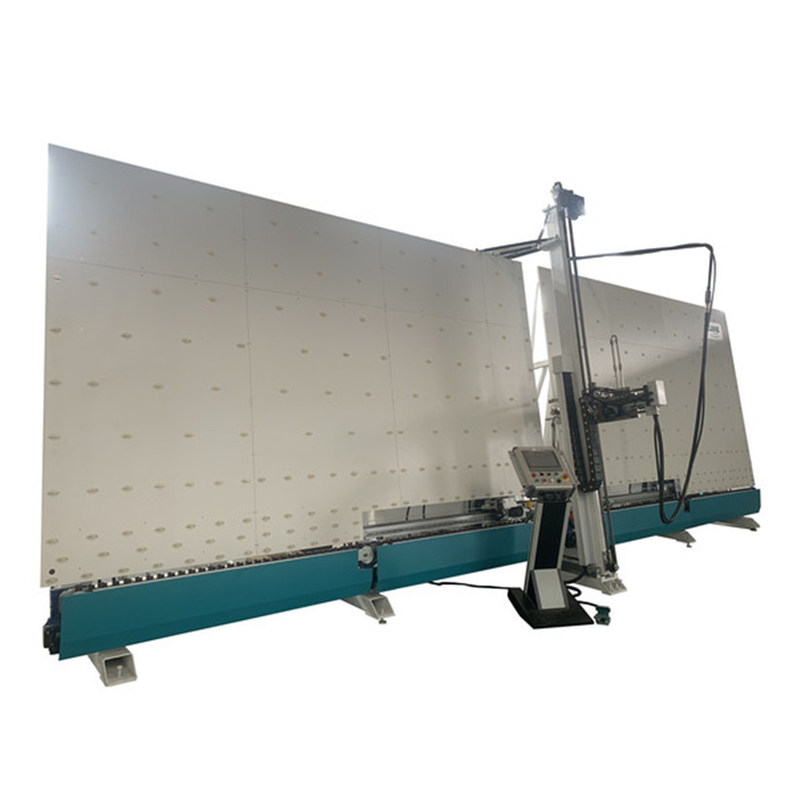

Insulting Glass Sealant Dispensing Machine with Pump A And Pump B Glues
Main features of Insulating Glass Sealing Robot
1. Insulting Glass Sealing Machine is equipped with Yaskawa servo motor, servo control system and touch screen, which is more convenient and intuitive for operation, real-time display of technical parameters, simple and intuitive, stable and efficient.
2. Double Glazing Glass Sealing Robot can be used by connecting or stand-alone.
3. Automatic memory function.
4. The glass corners are full without bubbles, and the glue output is controlled accurately.
5. Synchronous belt drive to ensure smooth glass transportation and accurate positioning
6. It can seal triple , double IG units, shaped and f4-sided step glass
7. The transmission is divided into four sections. The glass can be pre-stored, which can effectively reduce the waiting time of the glass and effectively improve the efficiency
8. Automatic identification of glass size, automatic detection of glue depth and automatic adjustment of glue application speed
9. The machining center of parts is highly standardized, which can achieve interchangeability, improve the convenience of maintenance, and ensure the long-term stable use of the equipment;
10. The conveyor wheel with back plate adopts inlay design, making the glass run more smoothly;
11. The glass support module on the conveyor belt adopts the replaceable V-shaped block, which is simple and convenient to replace after wear and low cost;
12. Support two different sealants gluing, with a easy operation.
13. The glue mixing system adopts the anti blocking structure, which is easy to clean.
Technical parameter of Automatic Insulting Glass Sealing Robot
| Max. glass size | 2500*4000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-50mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 15kw |
| Overall dimension | 11000*2000*3500mm |
Details of small extruder machine
• Japan Yaskawa servo system control,full automatic and high-efficiency sealing machine
• 4 sections, can storage glass
• Adopt timing belt, smooth transfer and accurate position
• Automatically repair glass corners with scraper and roller
• Automatically measure glass size, glue depth (30mm)
• Every auto-function is with manual operation
• Can coat double glass
• Can use silicone, polysulfide and silicone structural sealants
• Glue head is in the front of the machine, which is easy for coating step glass
• Can be connected with insulating glass processing line
• Shape glass with optional edges, step glass, triple glass (Optional)
• One set of booster pump controls two groups of sealants (Optional)
• With code scanning function (Optional)
Two sealing system of insulating glass sealing robot : double sealing pumps with two pump A and two pump B, two sets of glue mixers, one set of glue nozzle. When you change the different sealants, the first sealant. should be flushed clean with the second sealant.
