Product Details:
|
| Name: | Automatic Aluminum Spacer Bending Machine | Usage: | Insulating Glass Processing |
|---|---|---|---|
| Dimensional Error: | Within 0.5mm | Aluminum Spacer Width: | 6A-27A |
| Max.bending Spacer Size: | 2000*2000mm | Min.bending Spacer Size: | 250mm*200mm |
| Angle Error: | Within 1 | Air Supply: | >0.65MPa |
| Speed: | 0-47m/min | Diemension: | 10500*2200*2600mm |
| High Light: | 47m/Min Spacer Bending Machine,0.5mm Spacer Bending Machine,47m/Min spacer bar bending machine |
||
Product overview of Aluminum Bar Bending Machine
Automatic Aluminum spacer bending machine is a special equipment for making aluminum frames of insulating glass, This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Automatic Aluminum spacer frame bending machine is used to apply Siemens control system and touch screen operation to achieve automatically bend aluminum and warm edge spacers of insulating glass evenly, and the machine has functions of size optimization calculation, evading connected pieces and connecting automatically.Automatic bending machine is necessary equipment in insulating glass productions.
Main technical parameter of Aluminum Spacer Bending Machine
| Max.bending size | 2000mm*2000mm |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 6-27A |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| Speed | 0-47m/min |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Main Features of Automatic spacer frame bending machine
1.Four or Twelve different spacer size storage units can choose
2.German siemens plc control system,touch screen interface.
3. Aluminum spacers are available in different specifications and sizes
4.Heavy duty connectors ,convenience and safety for installation and debugging
5.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
6.The special machine hand device is used to bend big spacer frame
7.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
8.USB input function ,it can read the excel data directly
9.Spare parts of all machine have ID code ,convenient for after-sale service

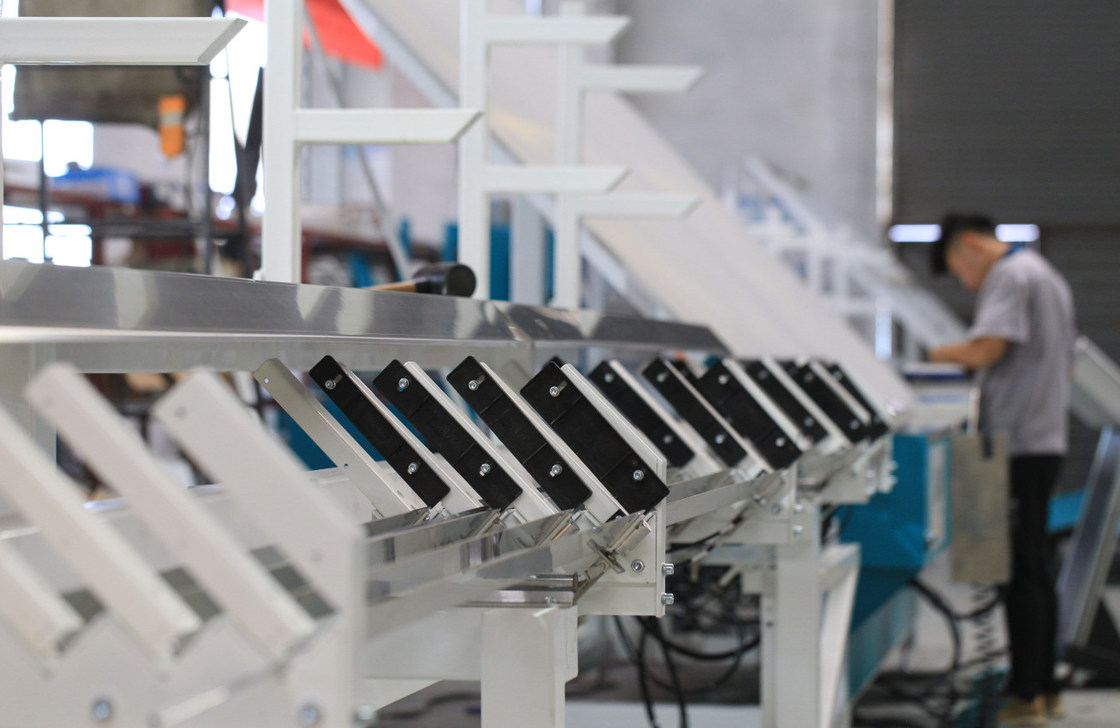

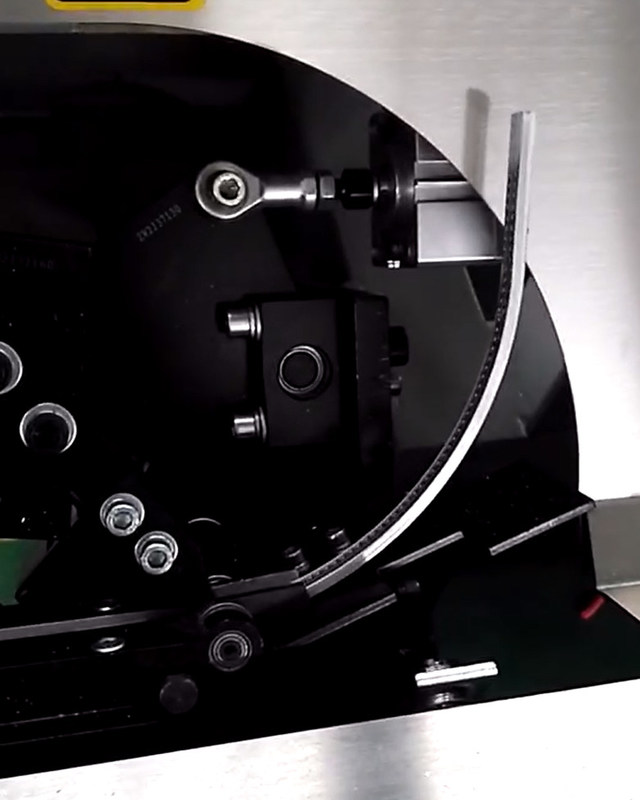

Details of Aluminum Bending Machine
Related products
1.Aluminum frame transfer machine LJSKJ02
Main feature
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
2.Spacer trip cutting machine LJQJ 02
Main feature
• It is used for cutting aluminum strip
• Allowed to cut many spacers,keep high efficiency
Technical data
| Power supply | 380V 50Hz |
| Total power | 0.55kw |
| Dimension | 5000*1050*415mm |
3.Molecular sieve filling machine
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
