Product Details:
|
| Machine Name: | Double Glazed Glass Production Line | Max Glass Size: | 2500 Mm*3500 Mm |
|---|---|---|---|
| Washing Brushes: | 3 Pair | Glass Thickness: | 3 - 15 Mm |
| IG Thickness: | 50 Or 60 Mm | Washing Machine Material: | Stainless Steel |
| Machine Length: | 16.7 M Or 19.5 M | Optional Function: | Triple Glass / Step Glass |
| Insulating Glass Conveyor Speed: | 45m/min | ||
| High Light: | 45m/Min Double Glazing Glass Machine,2500* 3500 Double Glazing Glass Machine,45m/Min insulating glass line |
||

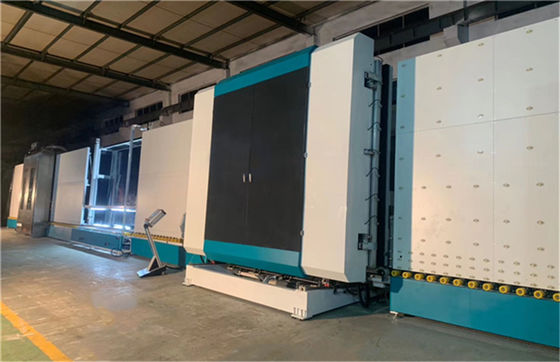

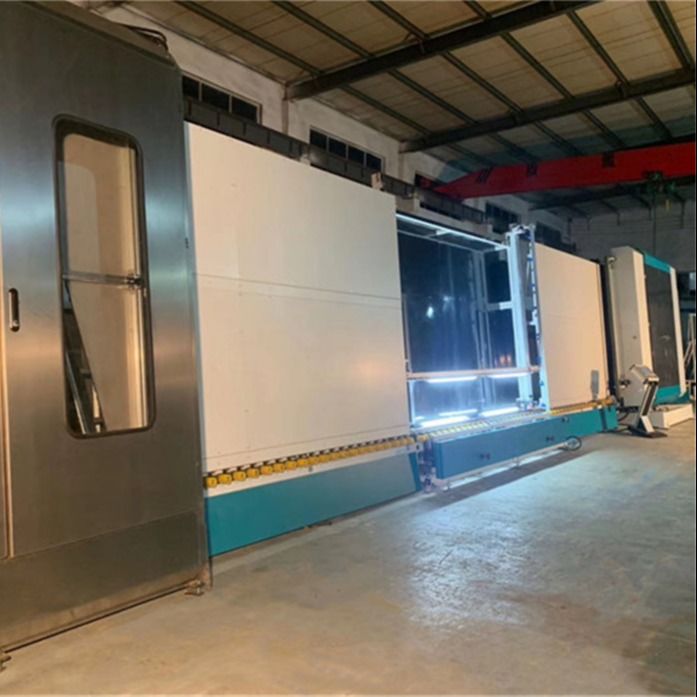

Insulated Double Glazed Glass Production Line Machine for Insulating Glass Processing
Main Features:
• Vertical Insulating Glass Processing Line has 7 sections:
01 transfer section;
02 washing section;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
LIJIANG Glass Main products :
IG line series;
Low-e film edge deletion machine;
Sealing robot series;
Butyl extruder machine series;
Molecular sieve filling machine;
Spacer bending machine series;
Auxiliary insulating glass machines.
About 20 products are widely used in customized insulating glass industry, industrial aluminum alloy, windows and doors, building curtain wall, high-speed rail, elevator and advertising industry.
Vertical Insulating Glass Processing Line - 2000*2500
IG line series :
Sizes :
2000*2500
2500* 3500
3000* 4000
Functions :
double glazing glass
triple glazing glass
four sides step glazing glass
Special technology :
Filling argon gas online
Low-e film glazing glass
Shaped glazing glass
Making two pieces of IG units in once time
Air floating insulating glass line

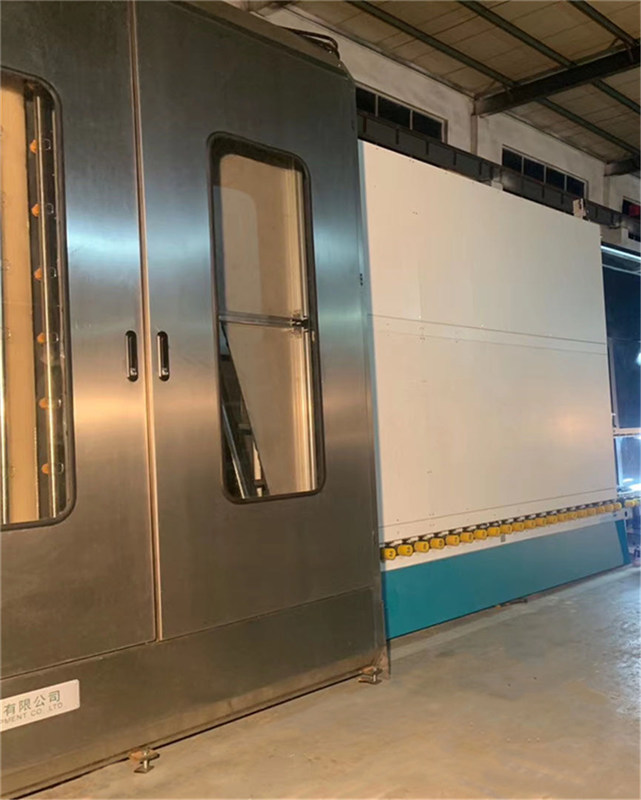

Washing section:
Main feature:
• Pre-washing (Optional)
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• European silencer system
• Stainless steel material
• Water tank automatic temperature control, water replenishing system
Pressing section :
Main feature:
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• Pressing board with adjustable structure to guarantee long-lasting service life
Technical data :
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 50mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Related Product
Smart Vertical Edge Deleting Machine
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 1. 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
