Product Details:
|
Name: | Vertical Insulating Glass Production Line | Max. Glass Size: | 2500mm*3500mm |
---|---|---|---|
Min. Glass Size: | 280mm*400mm | Glass Thickness: | 3-15mm / 19mm |
Insulating Glass Thickness: | 50mm / 60mm | Glass Washing Speed: | 2-10m/min |
High Light: | 2500mm*3500mm Double Glazing Equipment,thick 50mm Double Glazing Equipment,2500mm*3500mm double glazing machine |

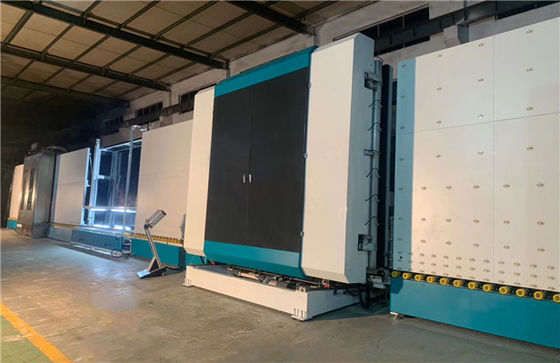

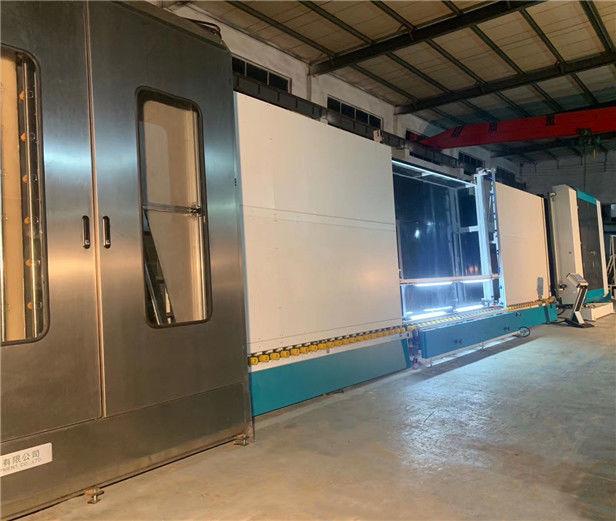

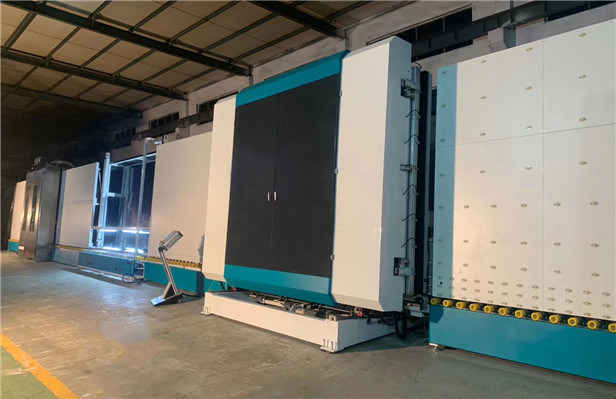

Vertical Insulating Glass Production Line LJBZ2535G
Main Features:
• Use Siemens control system to maintain stable performance
•PLC control system, touch screen interface
• Automatically adjust the glue depth through the digital display
• Use servo control system, modular function, superimposition function
•Suitable for producing stepped insulating glass, triple insulating glass and special-shaped insulating glass
• Two IGUs can be made and filled with argon at a time (optional)
• The minimum and maximum glass size can be selected

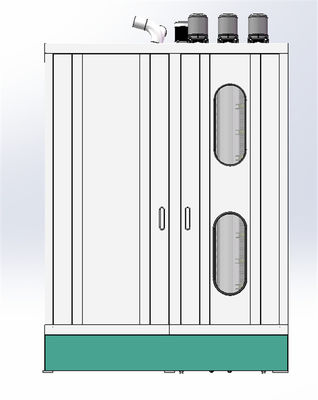

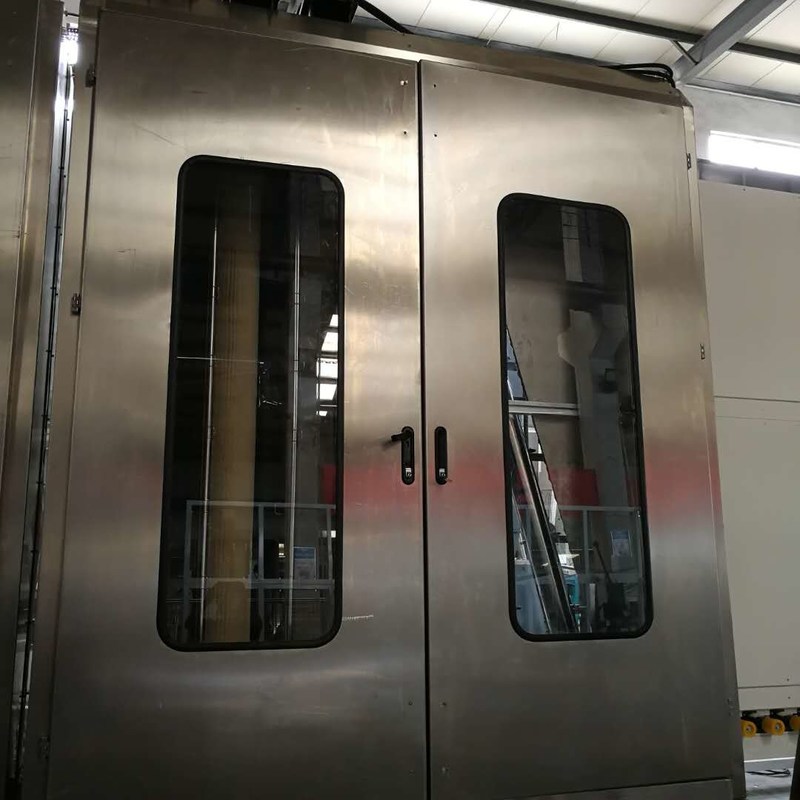

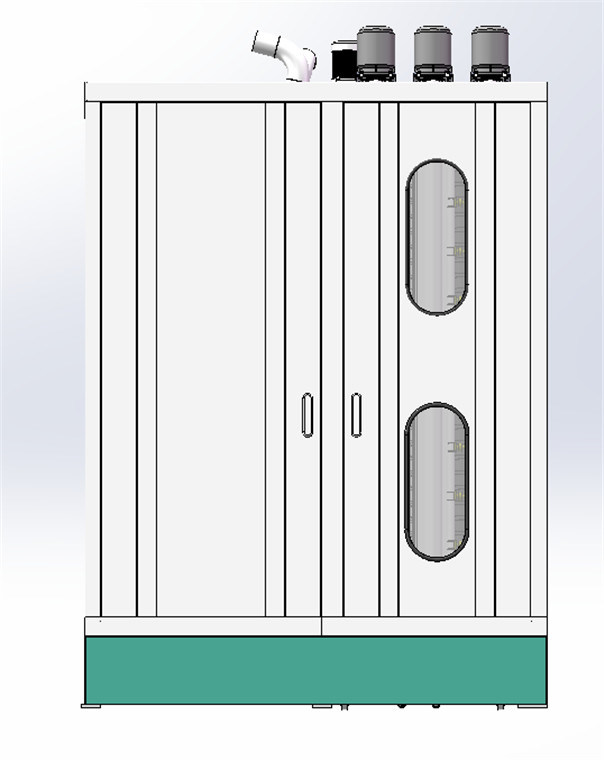

• Glass washing part
Main feature:
• Use 6 soft brushes
•Online and offline cleaning of Low-E glass, automatic identification of Low-E film
•The washing part adopts the upper and lower layered structure design
•Adopt frequency conversion fan, high efficiency, and energy-saving, the good cleaning effect
• The width of the air knife can be automatically adjusted according to the thickness
• Adopt an intelligent intermittent energy-saving working mode
•Layered cleaning system
• Automatic temperature control of water tank, water replenishment system
•European Silencing System
•304 stainless steel material
Pressing and filling gas parts
Main feature:
• Extra-long insulating glass can be compressed for the second time
•The machine uses servo torque to press the glass
• The pressure plate has adjustable screws to ensure durable high-precision tablets
• Equipped with an accurately adjustable front pressure plate mechanism
• The system can diagnose fault information
• The pressure plate can be opened to 400mm width, easy to maintain
•Suitable for producing quadrilateral IG, triple IG, and special-shaped IG
• Automatically filling argon gas inside the pressing plate with precise gas concentration
• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
• No need to drill holes in spacer frame
• Standard gas is Argon gas
• Fast reacting sensor for permanent control of gas filling process
• Automatically set gas data and display data on the screen
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and
development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail,
the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by
learning from famous experts, establishing the research and development centers, cooperating
with domestic and foreign well-known enterprises, importing advanced technology and so on.
Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing
Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the
establishment of the company, our products have been exported to Europe, America, South
America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time,
our company worked with the well-known domestic research institutes, such as the North China Industrial
Group, Shandong University and others, to constantly improve the level of technical research. So far,
we have independently produced the vertical automatic IG production line with filling gas on line, the
vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine
and the new fully automatic butyl extruder machine, its technology and quality have reached the highest
leading level in China.
