Product Details:
|
| Name: | Double Glazing Glass Machine | Flat Glass Thickness: | 3-15mm |
|---|---|---|---|
| Glass Washing Speed: | 6-15m/min | Glass Conveyor Speed: | 45m/min |
| Double Glass: | Available | Triple Glass: | Available |
| Step Glass: | Available | Shaped Glass: | Available |
| Washing Brushes: | 3 Pairs | Brushes Diameter: | 0.1mm |
| Highlight: | 15m/Min Insulating Glass Production Line,IG Insulating Glass Production Line,15m/Min glass production machinery |
||

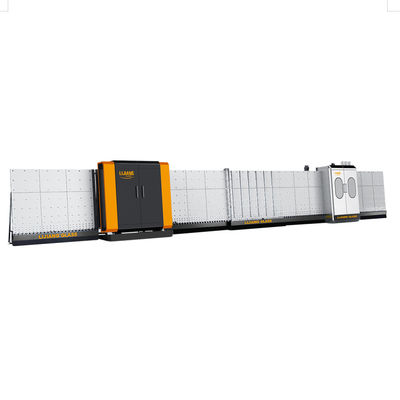

Higher working efficiency Insulating glass production line double glazing glass machine
As the most important process of insulating glass production, we are especially professional in glass cleaning, transmitting pressing and gas
filling.The production line can do double glass,triple glass and stepped glass

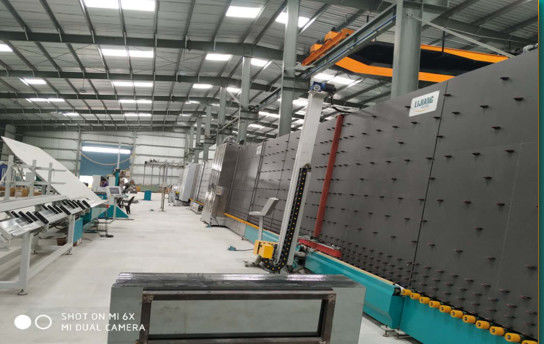

1, Insulating glass production line Introduction
About the IG line only need focus on the two part -WASHING DRYING PART AND PRESSING PART .All other part just conveyors and assembly, no much technology, so please focus on that two .
1, To Avoide the low-e Glass put inverse side and Leave wheel marks or scratch low-e Coating
We use coating inspection -metal film conductive (other company use Photoelectric detection,
hard to recognize for higher transparent)
2, Materials are stainless steel.
3, Three pairs soft brushes can wash low-e glass and normal glass , the diameter is less than 0.1mm.
4, The front and back side squeeze wheel are all actively moved and convey. No mater the glass size is big /small or thickness different(8mm) , it all guarantee the glass pass through smoothly.(Same like LISEC)
5, Air knife is float design , it always keep the right and suitable distance 3mm
between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)
Main Parameter
| Washing speed | 10~15m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 80mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size |
2500×4000
|
| Max.glass size | 2500*3500mm(LJBZ2535)Gas fillier line :2500*3200mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 48m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 34KW |
| Dimension | 23500*3500*3700mm |
| ITEM | NAME OF PRODUCTS | PICTURE | TYPE |
| 1 | Vertical Insulated Glass Produce Line | |
LJBZ1825PF |
| LJBZ2025PC | |||
| LJBZ2230PC | |||
| LJBZ2535PC | |||
| LJBZ2700 | |||
| 2 | Auto Sealing Robot | |
LJTJ2025 |
| LJTJ2025D | |||
| LJTJ2530 | |||
| LJTJ2530D | |||
| 3 | Sealant Spreading Machine | |
LJST02A |
| LJST02 | |||
| 4 | Low-E Glass Washing &Drying Machine | ||
| 5 | Smart Edge Deleting Machine | |
LJDM20 |
| LJDM25 | |||
| 6 | Automatic Spacer Bending Machine | |
LJZW2020 |
| LJZW2020A | |||
| 7 | Automatic Desiccant Filling Machine | |
LJGZ2020 |
|
LJGZ2020A | ||
| 9 | Butyl Extruder Machine | |
LJTB01B |
|
LJTB03 | ||
|
LJTB01 | ||
| 11 | Edge grinding Machine | |
LJMB95
|
| 12 | Spacer Cutting Machine | |
LJQJ02 |
| 13 | Freezer | |
LJLX01 |
| 14 | Rotated Sealant Spreading Table | |
LJZT03 |
| 15 | Gas Filling Machine | |
LJCJ02 |
| 16 | Semi-auto Aluminum Frame Transfer Machine | |
LJSJ02 |
| 17 | Molecular Sieve Filling Machine | |
LJGJ03 |
| 18 | Lifting Table | |
LJ2510P-09 |
| 19 | Glass unloading Device | LJXP-250-2 | |
| 20 | Water Treatment System(Economy) | |
DPS |
| 21 | Water Treatment System(Advanced) | ||
| 22 | Auto Seaming Machine | LJWM3625 |
