2500*3500 Insulating Glass Production Line With Filling Argon Gas

Common 2500*3500 Insulating Glass Line With Filling Argon Gas

Insulated glass production line is the main equipment for making insulating glass products. IG line has the normal sizes of 2000*2500 and 2500*3500 IG lines. The maximum size for filling argon gas is 2500*3200. LJBZ2535G vertical insulating glass washing and pressing production line with filling argon gas can complete the following functions: glass washing machine, aluminum frame installation, normal double glass, ordinary triple glass, shaped glass. LJBZ2535G line is a special equipment in the production of aluminum strip insulating glass, which has the advantages of siemens servo, high efficiency, reliable performance and convenient maintenance.

LJBZ2535G vertical insulating glass production line includes:

1. LJBZ2535G loading section
2. LJBZ2535G washing&drying section
3. LJBZ2535G discharging section
4. LJBZ2535G inspection and frame installation section
5. LJBZ2535G flat press lading section
6. LJBZ2535G glass pressing and filling argon gas section
7. LJBZ2535G flat press discharging section

Parameters :

Details introduce of the LJBZ2535G

• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

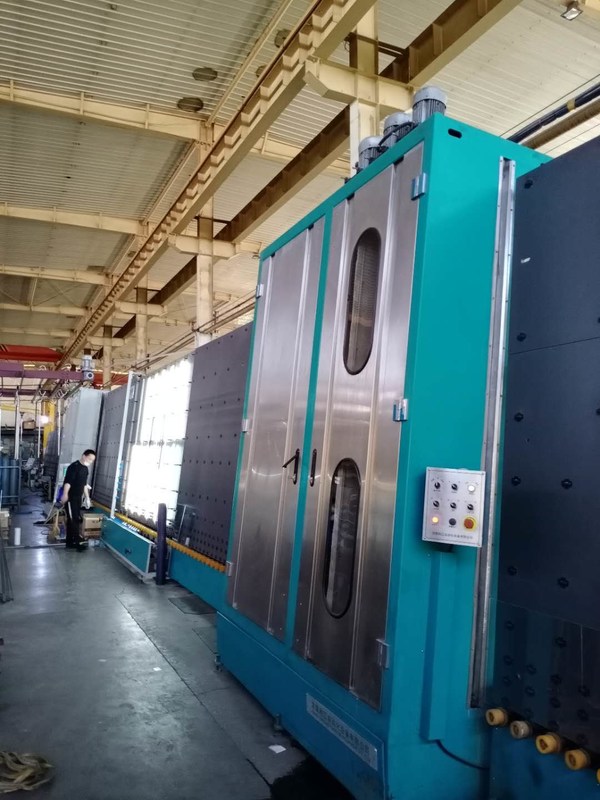

• 02 washing machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• 03 discharge section

• Storage glass

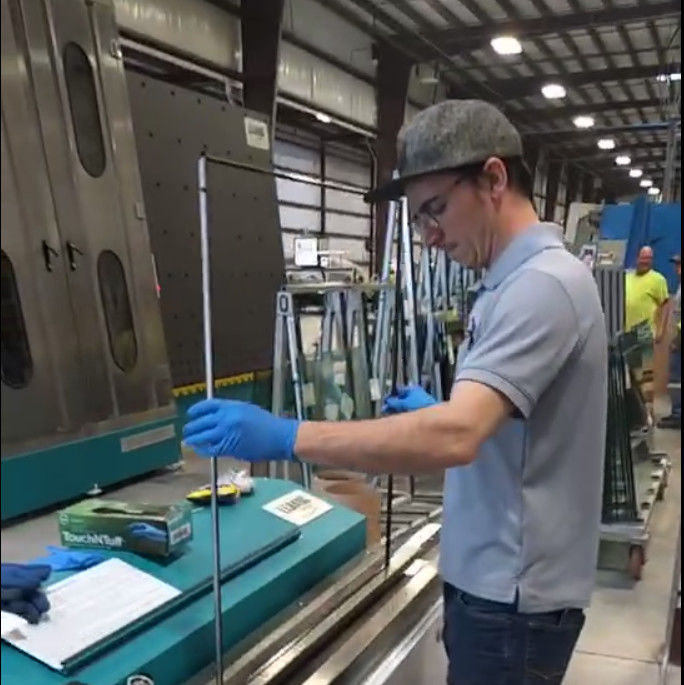

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section

Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

• 07 discharge section

• Storage glass

• Can be connected to sealing machine
