Product Details:
|
| Name: | Double Glazing Glass Machine | Flat Glass Thickness: | 3-15mm |
|---|---|---|---|
| Glass Washing Speed: | 6-15m/min | Glass Conveyor Speed: | 45m/min |
| Double Glass: | Available | Triple Glass: | Available |
| Step Glass: | Available | Shaped Glass: | Available |
| Washing Brushes: | 3 Pairs | Brushes Diameter: | 0.1mm |
| High Light: | 15m/min Glass Processing Equipment,15mm Glass Processing Equipment,Ig glass production line |
||

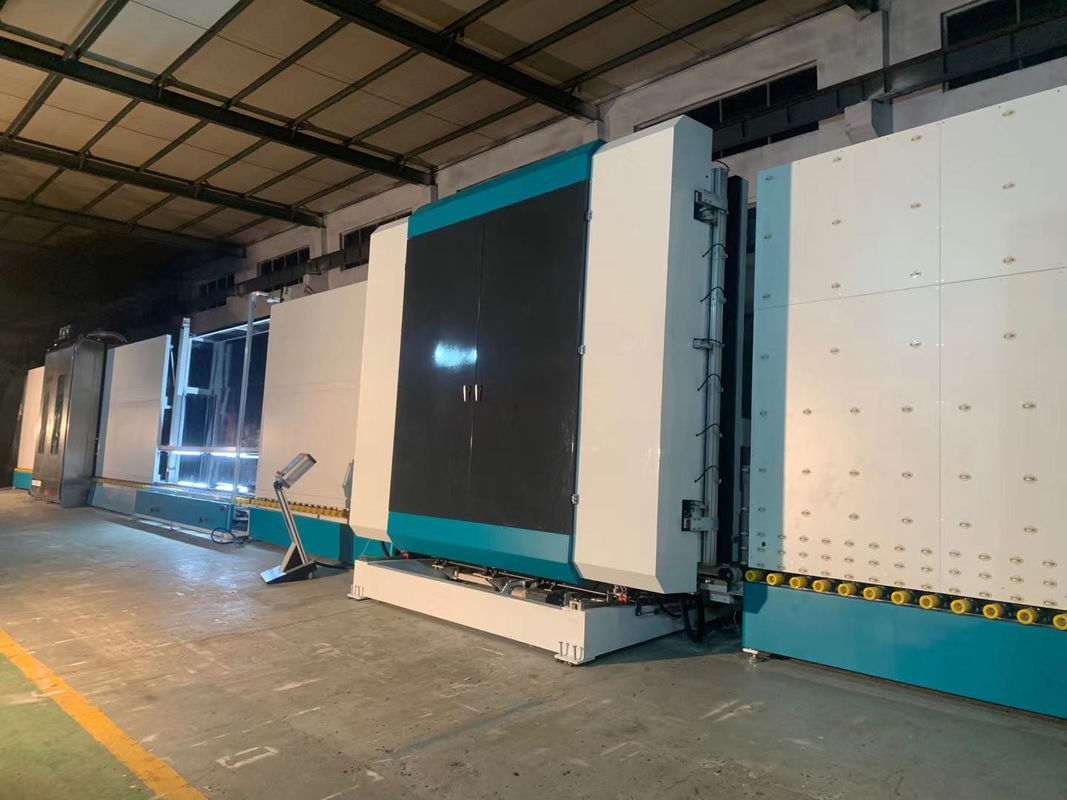

Higher working efficiency Insulating glass production line double glazing glass machine
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading section
As the most important process of insulating glass production,
we are especially professional in glass cleaning, transmitting pressing and gas filling.
The production line can do double glass,triple glass and stepped glass

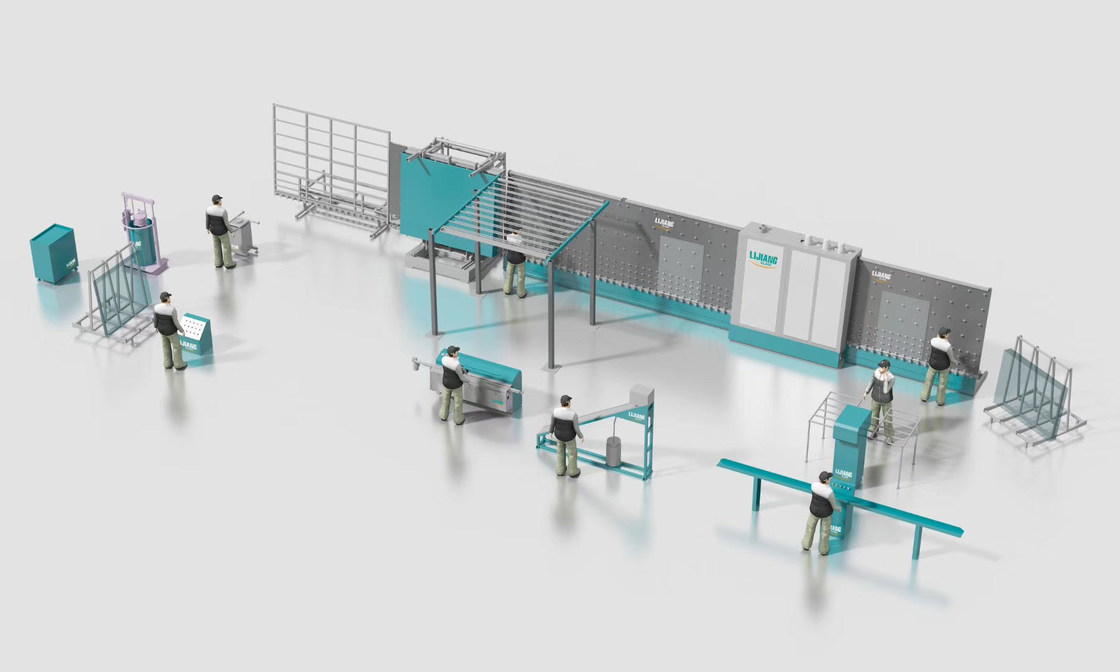

The whole line include 7 parts: (from right to left)
1, Insulating glass production line Introduction
About the IG line only need focus on the two part -WASHING DRYING PART AND PRESSING PART .All other part just conveyors and assembly, no much technology, so please focus on that two .
1, To Avoide the low-e Glass put inverse side and Leave wheel marks or scratch low-e Coating
We use coating inspection -metal film conductive (other company use Photoelectric detection,
hard to recognize for higher transparent)
2, Three pairs soft brushes can wash low-e glass and normal glass , the diameter is less than 0.1mm.
3, Materials are stainless steel.
4, Air knife is float design , it always keep the right and suitable distance 3mm
between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)
5, The front and back side squeeze wheel are all actively moved and convey. No mater the glass size is big /small or thickness different(8mm) , it all guarantee the glass pass through smoothly.(Same like LISEC)
There is a universal joint device.When the glass thickness was changed, the wind knife can move forward and backward to adjust the distance, so that the relative distance between the wind knife and the glass is constant, so as to avoid the damage to the glass due to the change of the glass thickness.
Adjustable points

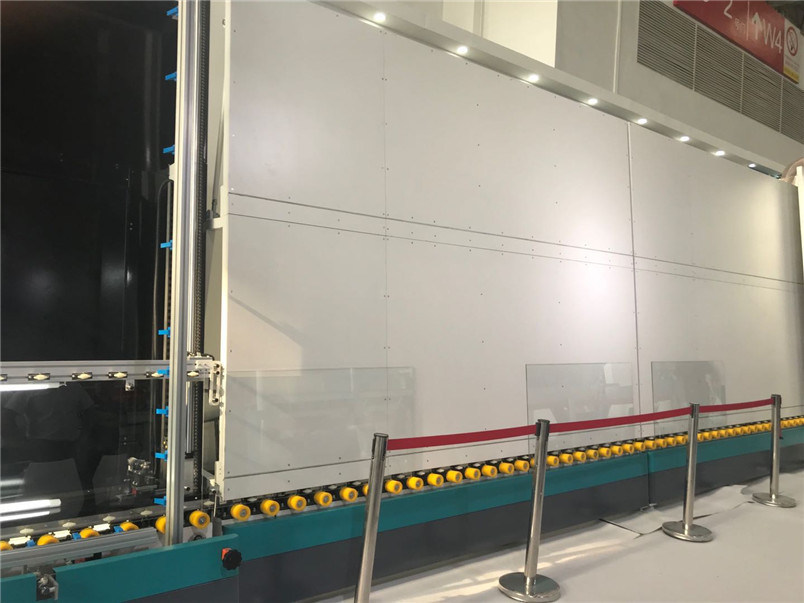

It has adjustable points on the pressing plate.
As we know, the press plate will be out of shape after long time using.So its pressing performance will be dramatically reduced.With these points, we can adjust the flatness of the pressing section, so that it can ensure stable performance.
Main Parameter
| Washing speed | 10~15m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 80mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size |
2500×4000 |
| Max.glass size | 2500*3500mm(LJBZ2535)Gas fillier line :2500*3200mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 48m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 34KW |
| Dimension | 23500*3500*3700mm |
