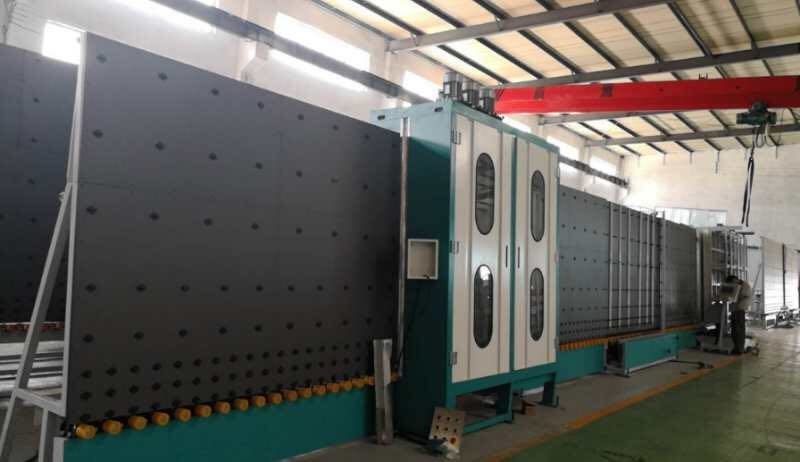

0.8m/Min 450×280 80mm Insulating Glass Production Line

Higher working efficiency Insulating glass production line double glazing glass machine

1, Insulating glass production line Introduction

 About the IG line only need focus on the two part -WASHING DRYING PART AND PRESSING PART .All other part just conveyors and assembly, no much technology, so please focus on that two .

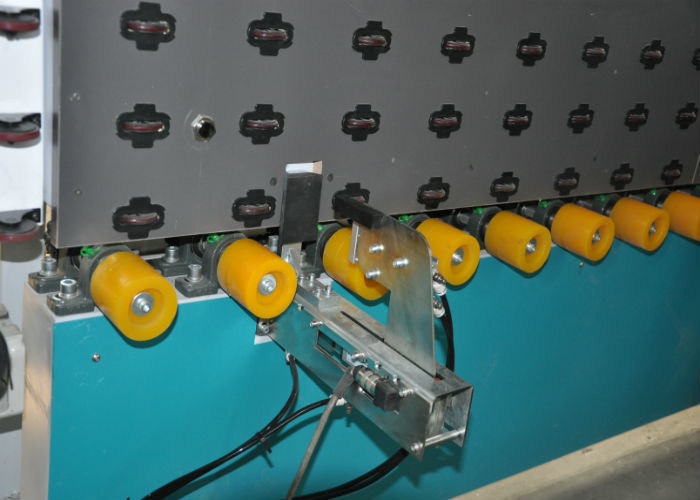

1, To Avoide the low-e Glass put inverse side and Leave wheel marks or scratch low-e Coating

We use coating inspection -metal film conductive (other company use Photoelectric detection,

hard to recognize for higher transparent)

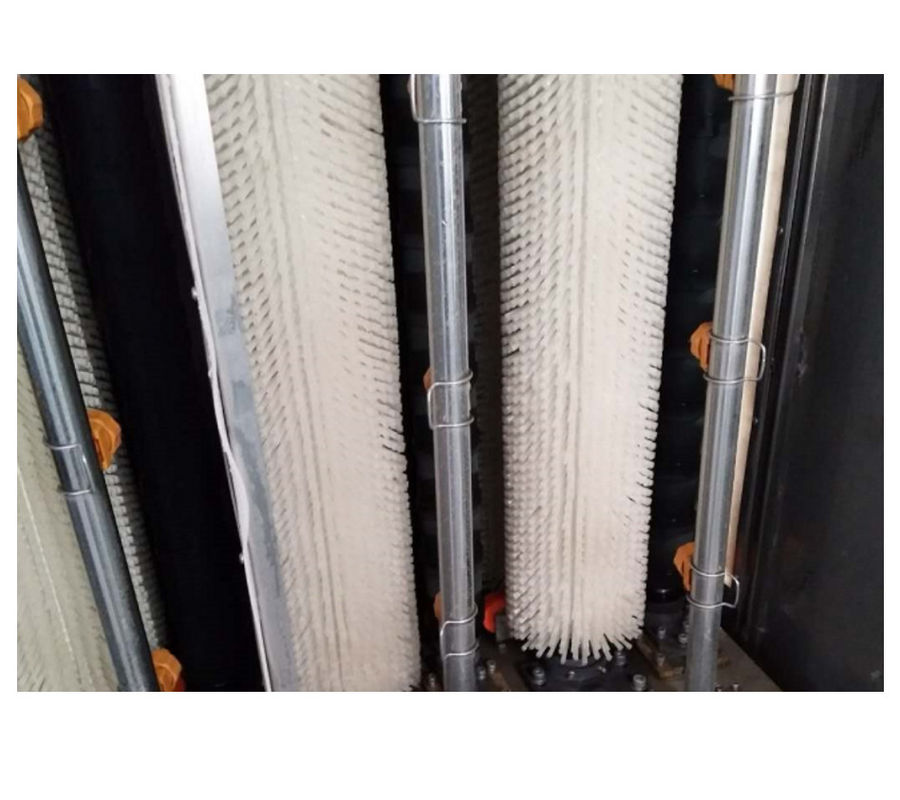

2, Three pairs soft brushes can wash low-e glass and normal glass , the diameter is less than 0.1mm.

3, Materials are stainless steel.

4, Air knife is float design , it always keep the right and suitable distance 3mm

between the glass surface and air knife (Same like LISEC structure ) check the following picture. (3mm is the best drying distance)

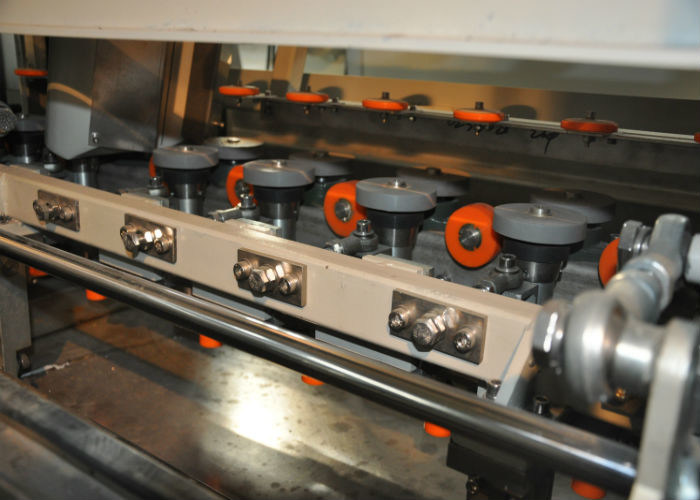

5, The front and back side squeeze wheel are all actively moved and convey. No mater the glass size is big /small or thickness different(8mm) , it all guarantee the glass pass through smoothly.(Same like LISEC)
